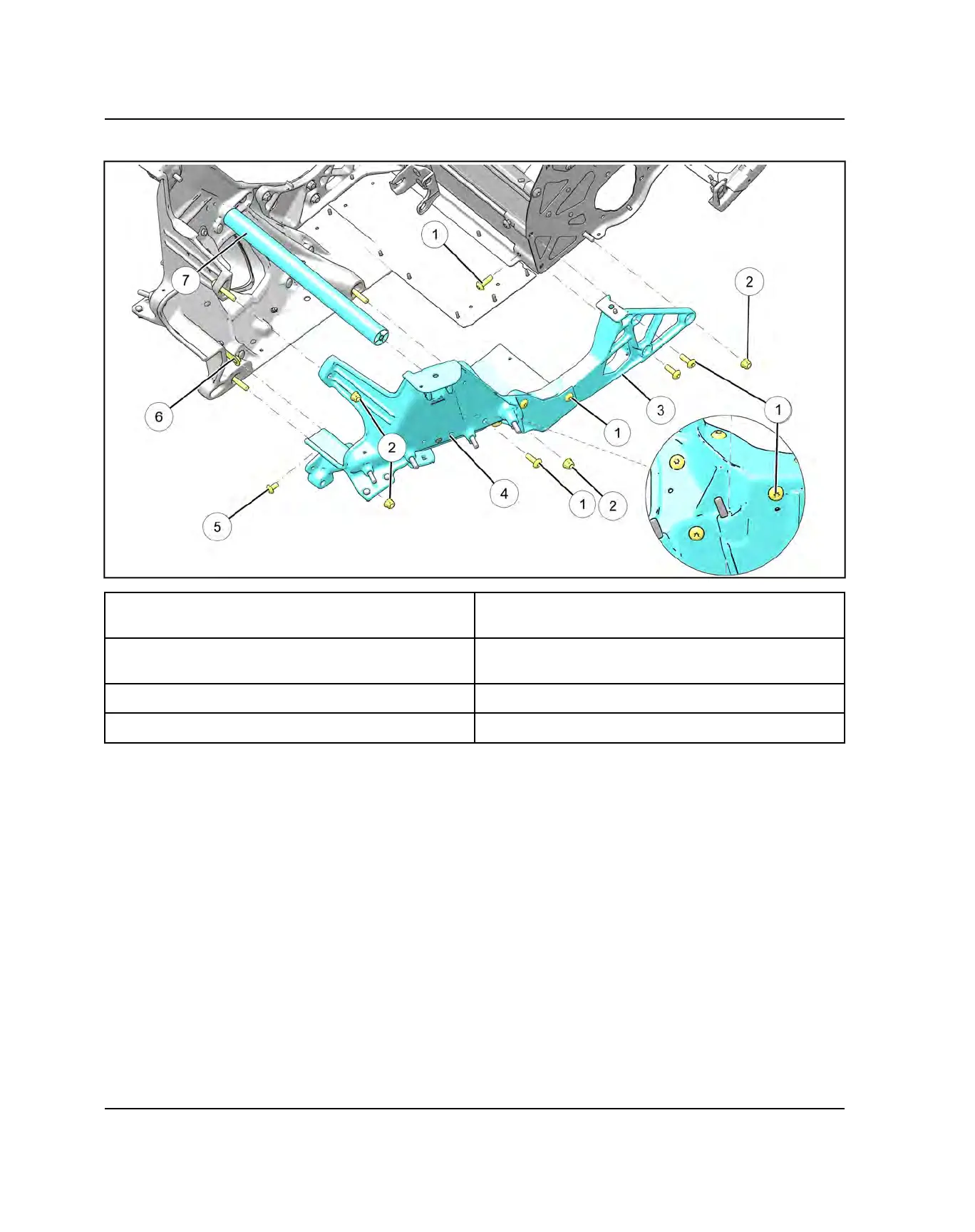

LEFT BULKHEAD / SIDE SUPPORT ASSEMBLY VIEW
q
Fastener (M8 x 1.25 x 25 / Patch Lock)
26 ft-lbs (35 Nm) Replace with new when removed.
t
Fastener (M8 x 1.25 x 15)
26 ft-lbs (35 Nm) Replace with new when removed.
w
Flanged Nut (M8 x 1.25)
26 ft-lbs (35 Nm) Replace with new when removed.
y
Nut Plate
e
Side Support
u
Cross Tube
r
Left Bulkhead Clip
CHASSIS
