9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
10.93

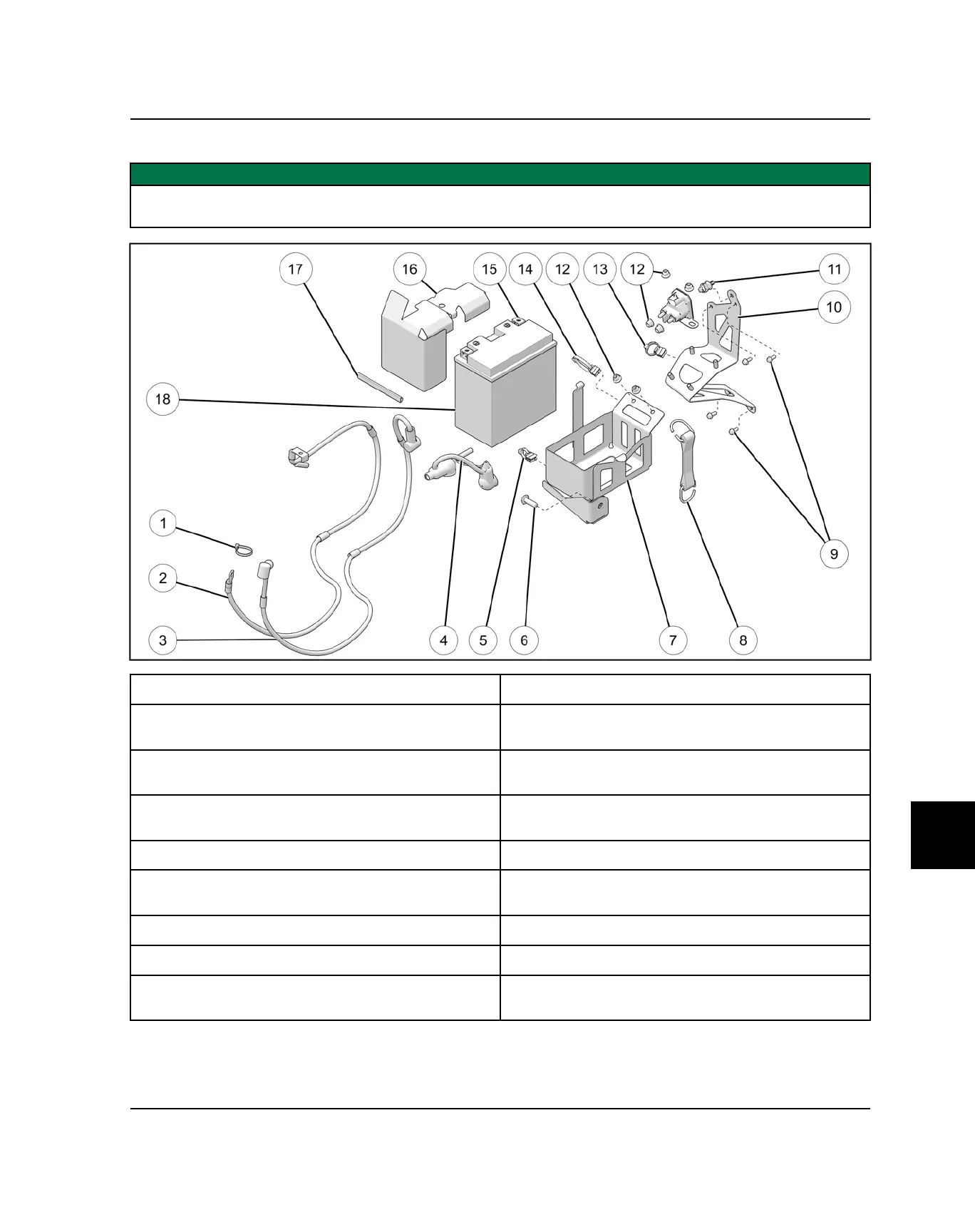

BATTERY BRACKET ASSEMBLY
IMPORTANT
Disconnect battery before servicing starter motor components. Always remove BLACK (-) battery cable first, and then
RED (+) cable. Reverse order during battery installation.
q
Cable Tie
a
Battery Box Bracket
w
Red Starter Motor Cable (+)
Connect to starter solenoid and starter motor post
s
Routing Clip
e
Black Battery Ground Cable (-)
Connect to starter motor clip plate post
d
Nut
7 ft-lbs (10 Nm)
r
Red Battery Cable (+)
Connect to starter solenoid and constant power plug
f
Edge Clip
t
Edge Clip
g
Edge Clip
y
Battery Bracket Fastener
22 ft-lbs (30 Nm)
h
Terminal Hardware
36 in-lbs (4 Nm)
u
Battery Box
j
Battery Heat Shield
i
D-ring Strap
k
Seal-Bulb
o
Battery Box Bracket Fasteners
22 in-lbs (2.5 Nm)
l
Battery
