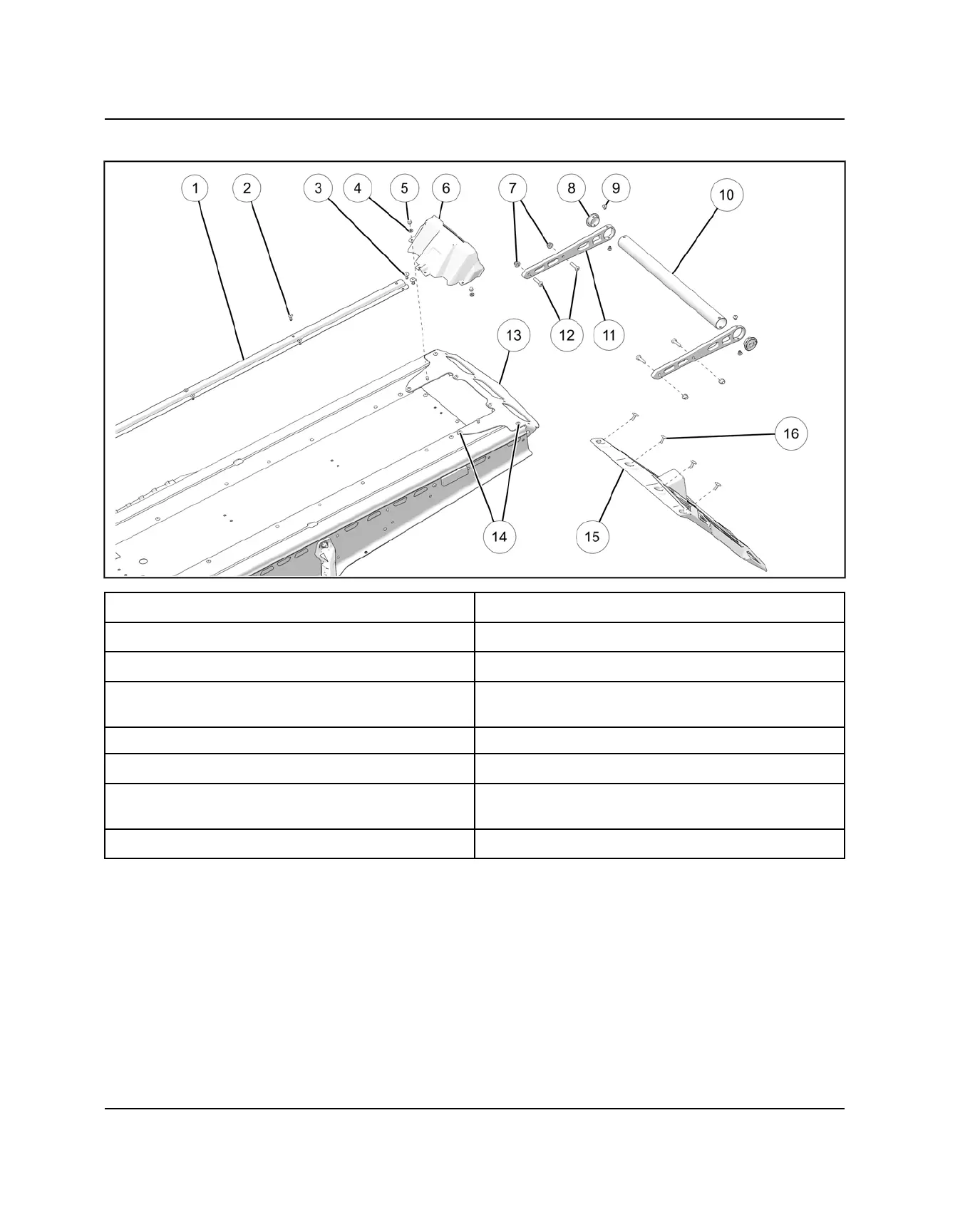

REAR BUMPER / CLOSEOFF ASSEMBLY VIEW
q
Taillight Harness Cover
o
Rivets
w
Rivets
a
Bumper Tube
e
Rivets
s
Bumper Mount
r
Washers
d
Screws
17 ft-lbs (23 Nm) Apply Loctite 263
t
Acorn Nuts
f
Closeoff
y
Taillight Cover
g
Rivets
u
Nuts
17 ft-lbs (23 Nm) Apply Loctite 263
h
Snow Flap
i
Bumper Cap
j
Rivets
