GENERAL SETUP / ADJUSTMENTS - ALL MODELS
CONTROLS / HANDLEBAR
HANDLEBAR COMPONENT FASTENERS

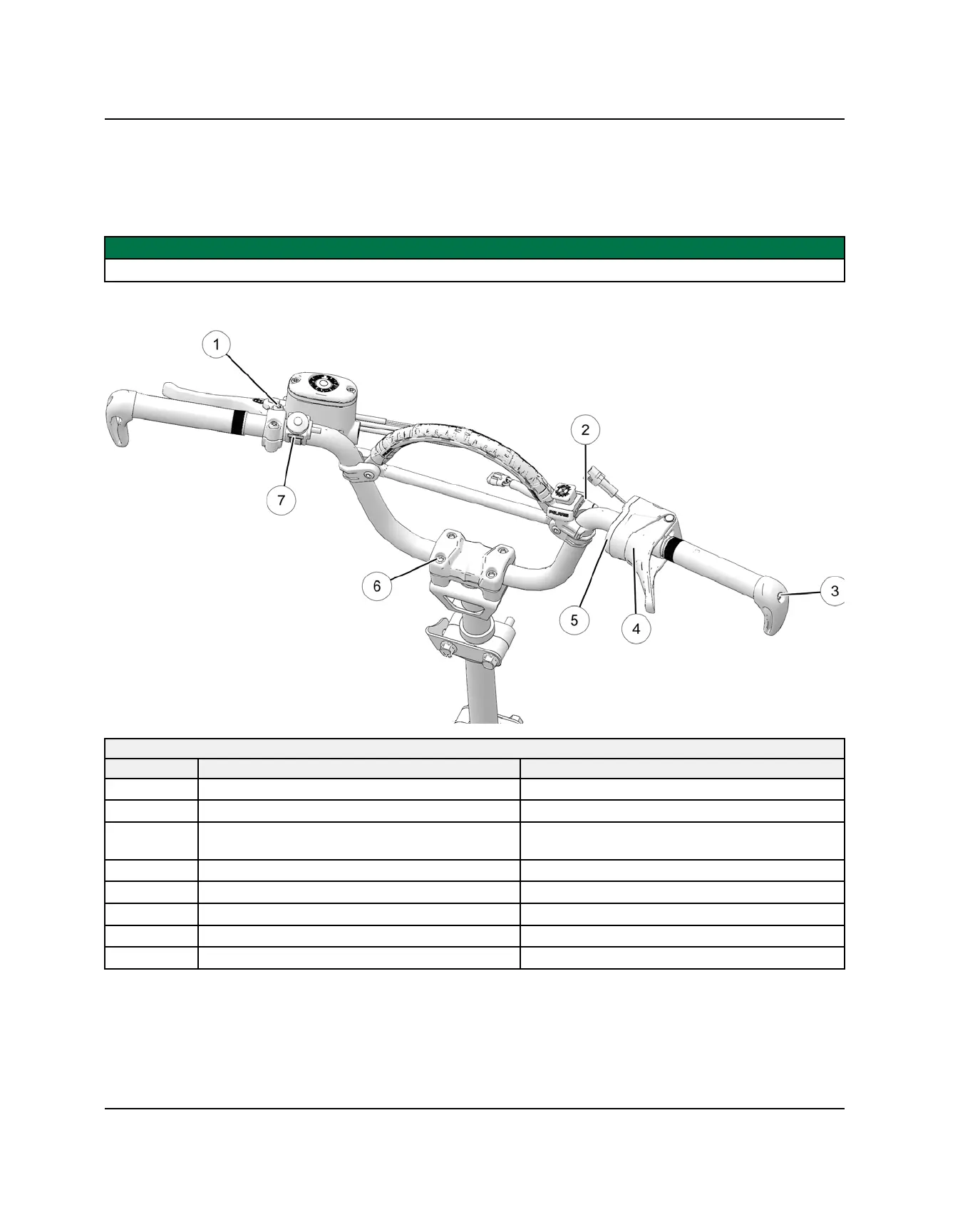

Use the following image and fastener torque reference table when adjusting / re-locating handlebar components.
IMPORTANT
DO NOT OVER-TIGHTEN HANDLEBAR COMPONENT FASTENERS.
AXYS RMK HANDLEBAR COMPONENT FASTENER TORQUE VALUES
REF. COMPONENT
TORQUE / NOTES
q
Brake Lever / Master Cylinder 60 - 80 in-lbs (6.8 - 9 Nm)
w
Auxiliary Stop Switch Set Screw 12 in-lbs (1.4 Nm)
e
Handlebar Hook Screw
Aluminum: 10 ft-lbs (13.5 Nm)
Steel: 18 ft-lbs (24 Nm)
r
Throttle Lever Block Set Screw 27 in-lbs (3.1 Nm)
t
Throttle Lever Block Cover Screws 6 in-lbs (0.7 Nm)
y
Handlebar Clamp Screws / Bolts 7 ft-lbs (9.5 Nm)
u
PERC Button Screw 35 in-lbs (4 Nm)
– Hand Guard Mounts (if applicable)
Hand-Tight
