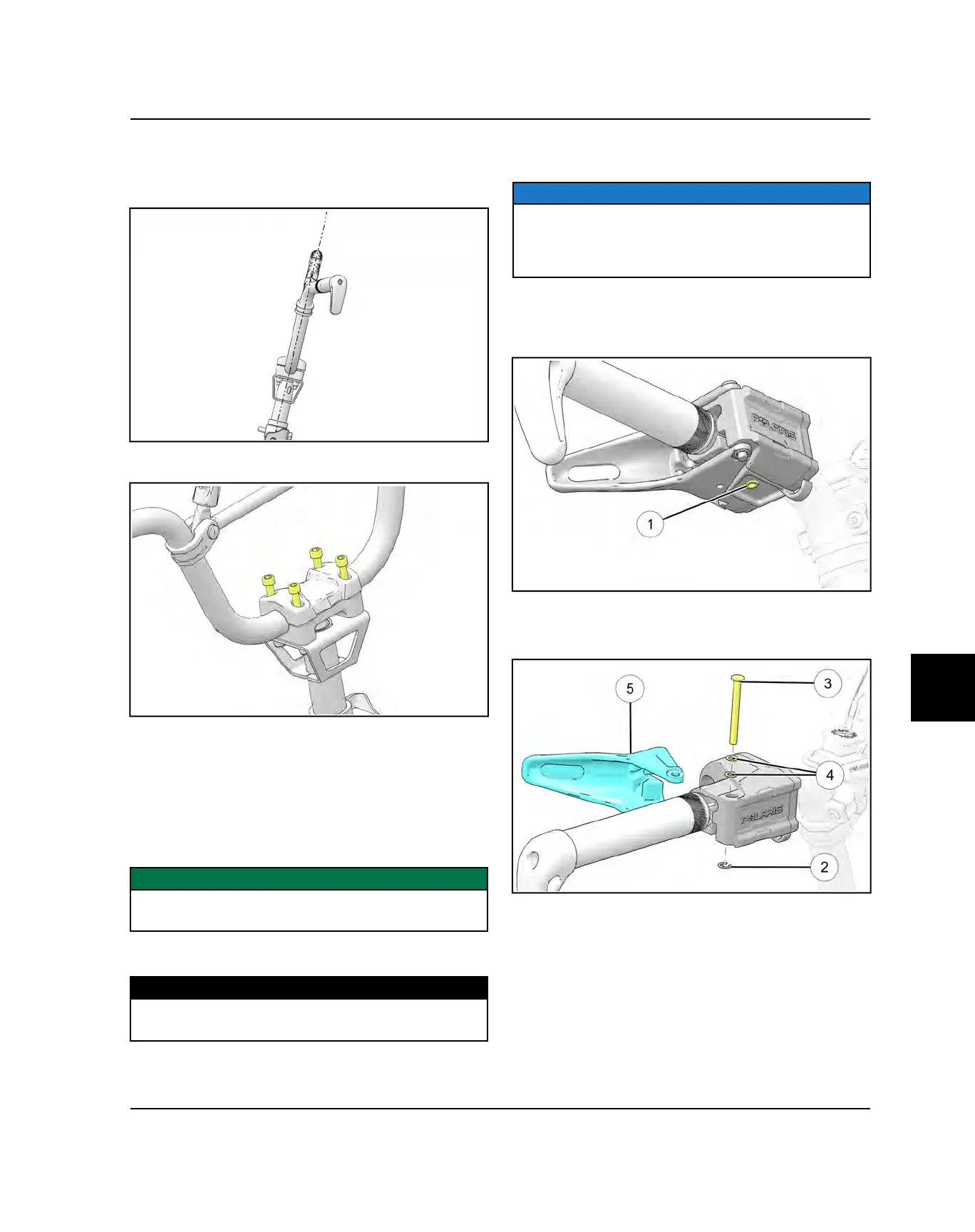

HANDLEBAR ANGLE ADJUSTMENT
Handlebar angle can be adjusted to suit rider preference.
Factory settings are shown.
1. Loosen the four bolts on the handlebar block.
2. Adjust the handlebar upward or downward to the
desired angle. Be sure the handlebar, brake lever and
throttle lever operate smoothly and do not hit the gas
tank, windshield or any other part of the machine
when turned fully to the left or right. If necessary,
loosen the set screws for the left and right controls,
rotate the controls slightly, then tighten the set screws
to the proper torque.
IMPORTANT
Do not stretch wires while adjusting the controls.
Stretching the wires could damage the handwarmers.
3. Tighten the bolts to specification.
TORQUE
Handlebar Mount Bolts:
7 ft-lbs (9.5 Nm)
TWO PIECE THROTTLE CONTROL
REMOVAL
NOTICE
Some models are equipped with a two-piece throttle
control on the handlebar. The two-piece throttle control
is designed to be serviced without having to remove the
grip and hand warmer element.
1. Use a needle-nose pliers to extract the throttle cable
barrel out of the throttle lever.
2. Loosen the throttle block set screw
q
.
3. Remove the e-clip
w
, the throttle lever pin
e
, and
adjustment washers
r
. Note the number of washers.
Remove the throttle lever
t
.
