5.20
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
FUEL TANK / FUEL PUMP SERVICE

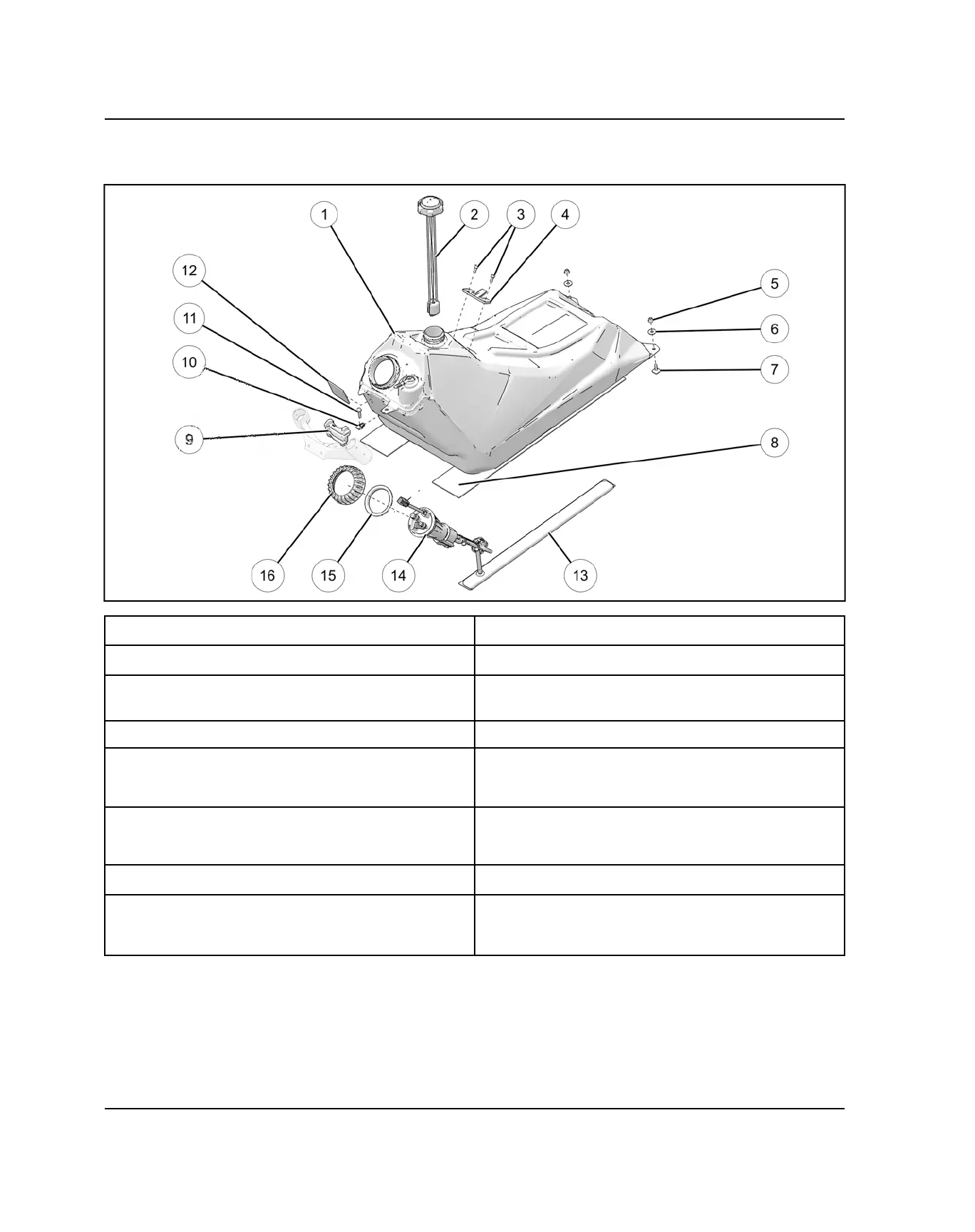

FUEL TANK ASSEMBLY VIEW – RMK
q
Fuel Tank
o
Fuel Lines / Tank Support
w
Fuel Gauge/Cap
a
U-Clip
e
Screws
s
Screw
5 ft-lbs (7 Nm)
r
Seat Mount Bracket
d
Foam Pad
t
Nut
9.5 ft-lbs (13 Nm)
DO NOT OVER-TORQUE
f
Fuel Pump Intake
y
Washer
g
Fuel Pump Assembly
Align arrow on pump flange with alignment line on fuel
tank.
u
Bolt h
Fuel Pump Flange (PFA) Gasket
i
Fuel Tank / Tunnel Foam Pads
j
Fuel Pump Flange Nut
28 ft-lbs (38 Nm)
Install new PFA gasket when nut is removed.
FUEL SYSTEM
