9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

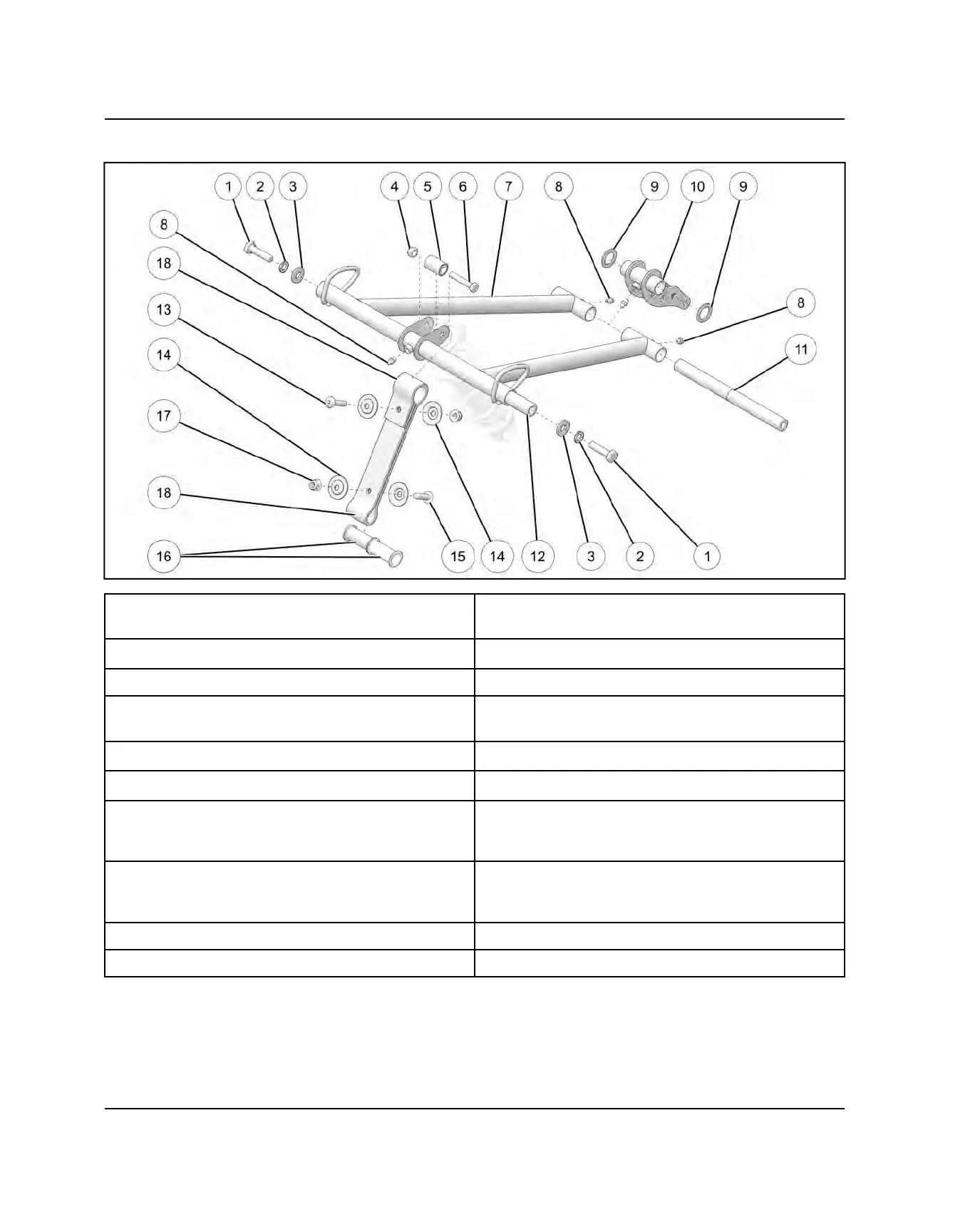

RMK FRONT TORQUE ARM ASSEMBLY VIEW
q
Screw
47 ft-lbs (64 Nm)
s
Cross Shaft
w
Spring Lock Washers
d
Hollow Shaft
e
Washers
f
Screw
r
Nut
17 ft-lbs (23 Nm)
g
Domed Washers
Install dome-side out.
t
Shock Bushing
h
Screw (M8 x 1.25 x 30)
y
Screw (M8 x 1.25 x 45)
j
Bushing
u
Torque Arm
k
Flange Nuts
17 ft-lbs (23 Nm)
Replace with new when removed.
i
Lubrication Fittings
l
Limiter Strap
Install with free ends facing forward.
Stock position is tight.
o
Washers
— Front Track Shock
a
Shock Pivot
STEERING / SUSPENSIONS
