10
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
10.85

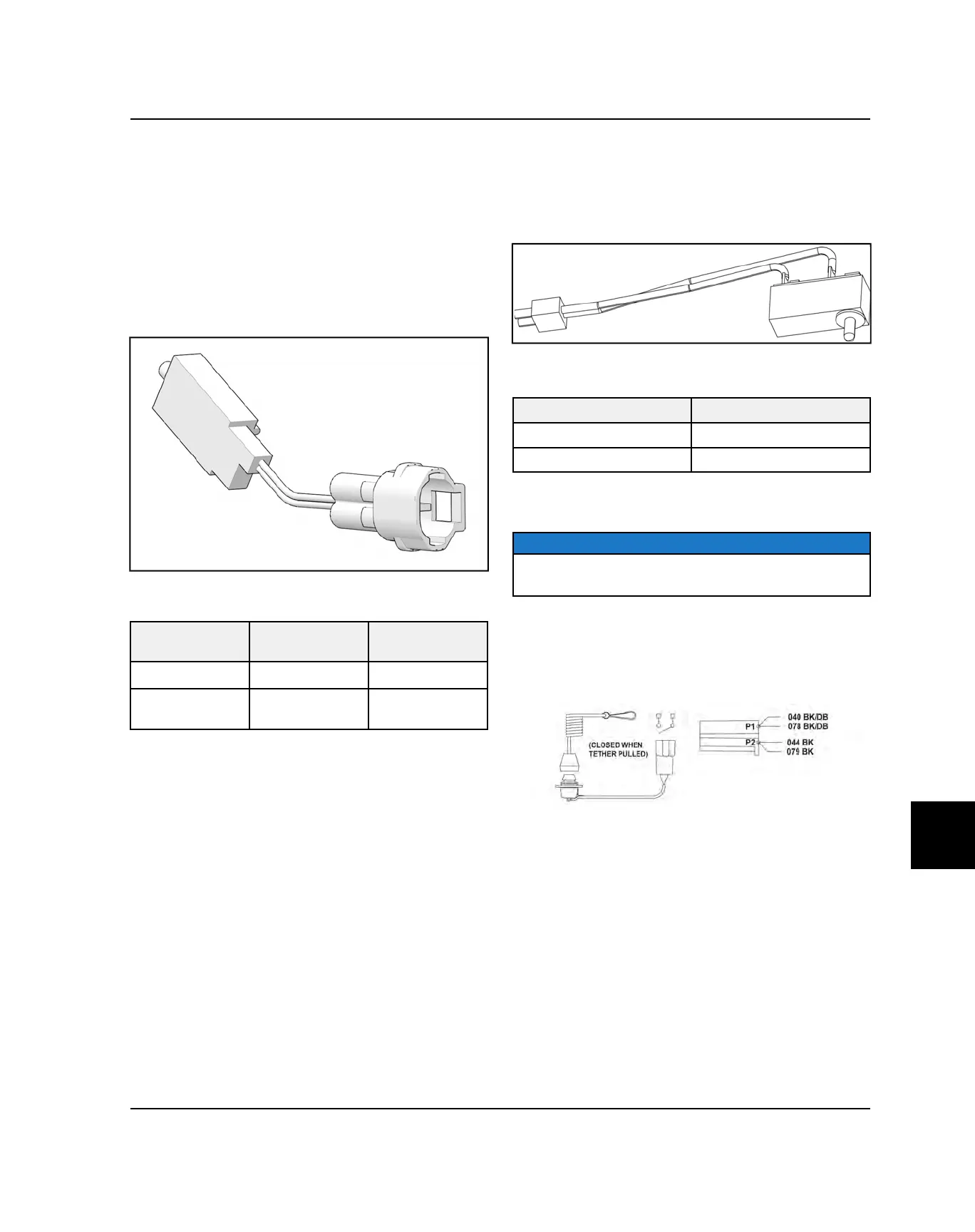

THROTTLE RELEASE SWITCH
The throttle release switch is integrated into the right
hand throttle control block. The switch provides a
software stop signal to the ECU.
A software stop is used to determine the position of the
throttle release switch. The software stop system is
activated when the throttle release switch is closed
(closed throttle), but the TPS (throttle plate position) is
still above idle. When this occurs, the ECU will determine
the throttle cable is “stuck” and disable the ignition
system.
SWITCH TESTING
SWITCH
POSITION
BK/BU TO BK/
RD
FUNCTION
Flipper Pushed
6790Ω +/- 185
Run
Flipper
Released
2148Ω +/- 185
Shutdown
Above Idle
BRAKE SWITCH
The brake switch is integrated into the brake lever
assembly. When the brake lever is pulled, the switch
closes. The closed switch completes the brake signal to
the ECU and rear brake LEDs. The ECU signals the
instrument cluster to illuminate the brake icon.
PIN CONTINUITY
SWITCH POSITION CONTINUITY BETWEEN
Pushed Red and ORG/BLK
Released
-
TETHER SWITCH
NOTICE
The tether switch, part number 4010849, is an optional
accessory that can be installed on the snowmobile.
The tether switch connects into the ignition kill circuit
(hard stop). When the tether is installed, the switch is
open, allowing the engine to run. When the tether is
removed from the switch, the circuit is closed, and the
engine will shut off.
The tether switch connects to the main wire harness at
the handlebar wire connector location under the upper
steering post assembly.
BATTERY / ELECTRICAL
