DRIVEN CLUTCH

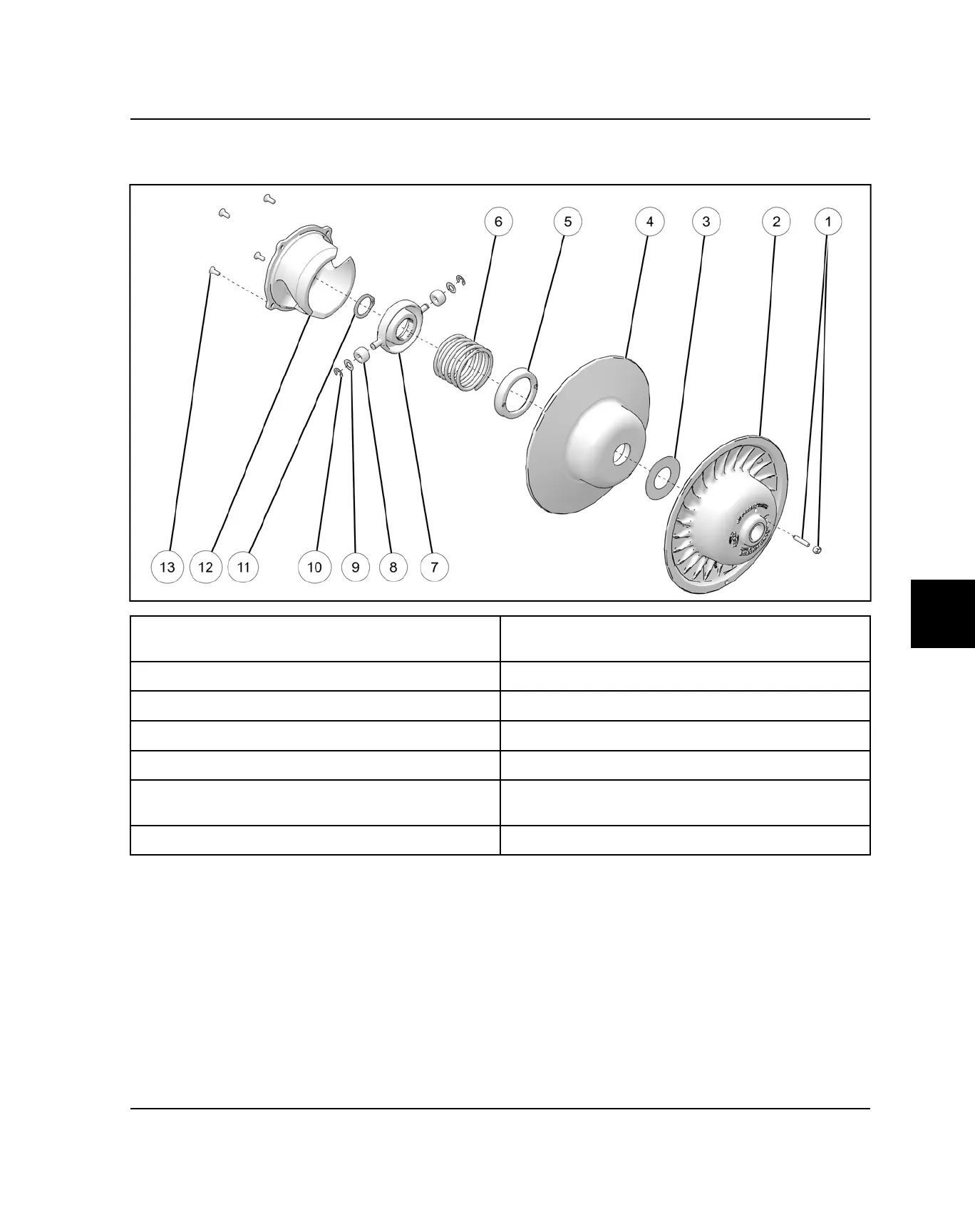

DRIVEN CLUTCH ASSEMBLY VIEW - TEAM LWT
q
Belt Deflection Screw
145 in-lbs (16 Nm)
i
Roller
w
Stationary Sheeve
o
Washer
e
Deflection Spacer
a
Retaining E-Ring
r
Moveable Sheeve
s
Snap Ring
t
Spring Cup
d
Helix
y
Spring
f
Helix Fasteners
110 in-lbs (12 Nm)
u
Spider
PVT SYSTEM
