8.44
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.
8. Turn both tie rods equally to set ski toe. When
finished, measurement (X) should be 1/8″ - 1/4″ inch
(3 - 6 mm) wider than measurement (Y).
NOTICE
If setting toe on each ski using the alignment bar as a
reference point, (X) should be 1/16″ - 1/8″ (1.6 - 3 mm)
wider than measurement (Y).
9. Torque steering tie rod jam nuts and spindle fasteners
to specification.
TORQUE
Tie Rod Spindle Fasteners:
37 ft-lbs (50 Nm)
Rod End Jam Nuts:
11 ft-lbs (15 Nm)

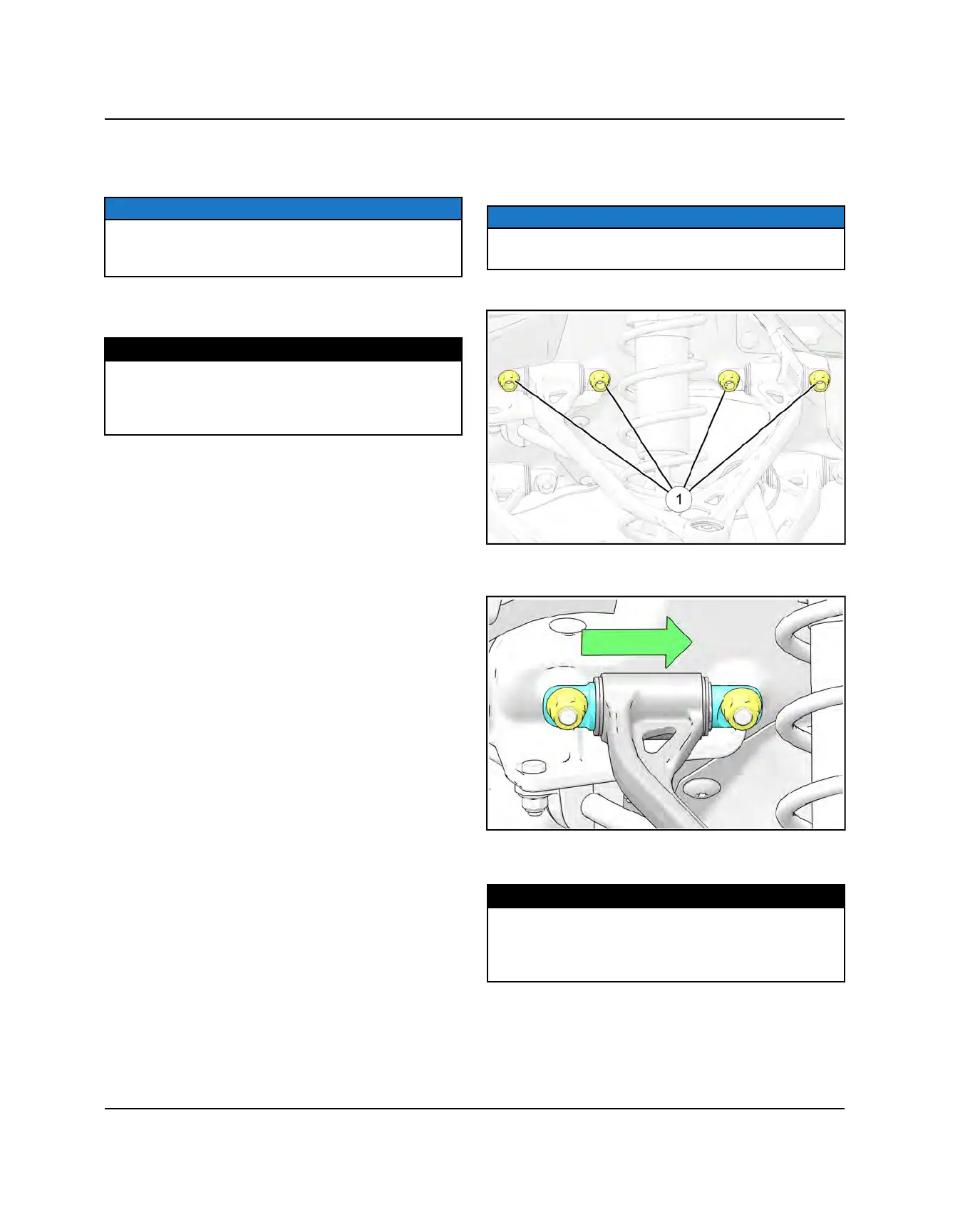

CONTROL ARM PIVOT ADJUSTMENT
The upper and lower control arms feature slotted pivots
to allow for adjustment to compensate for bushing wear.
NOTICE
Upper control arm shown. Procedure is the same for
lower control arm adjustment.
1. Loosen the four lock nuts
q
.
2. From the bushing side of each pivot, push the pivot
toward the control arm.
3. While holding the pivot(s) in place, tighten the lock
nuts.
TORQUE
Lower Control Arm Front Pivot Bolt / Nut:
40 ft-lbs (54 Nm)
Control Arm Pivot Lock Nuts:
40 ft-lbs (54 Nm)
STEERING / SUSPENSIONS
