5.13

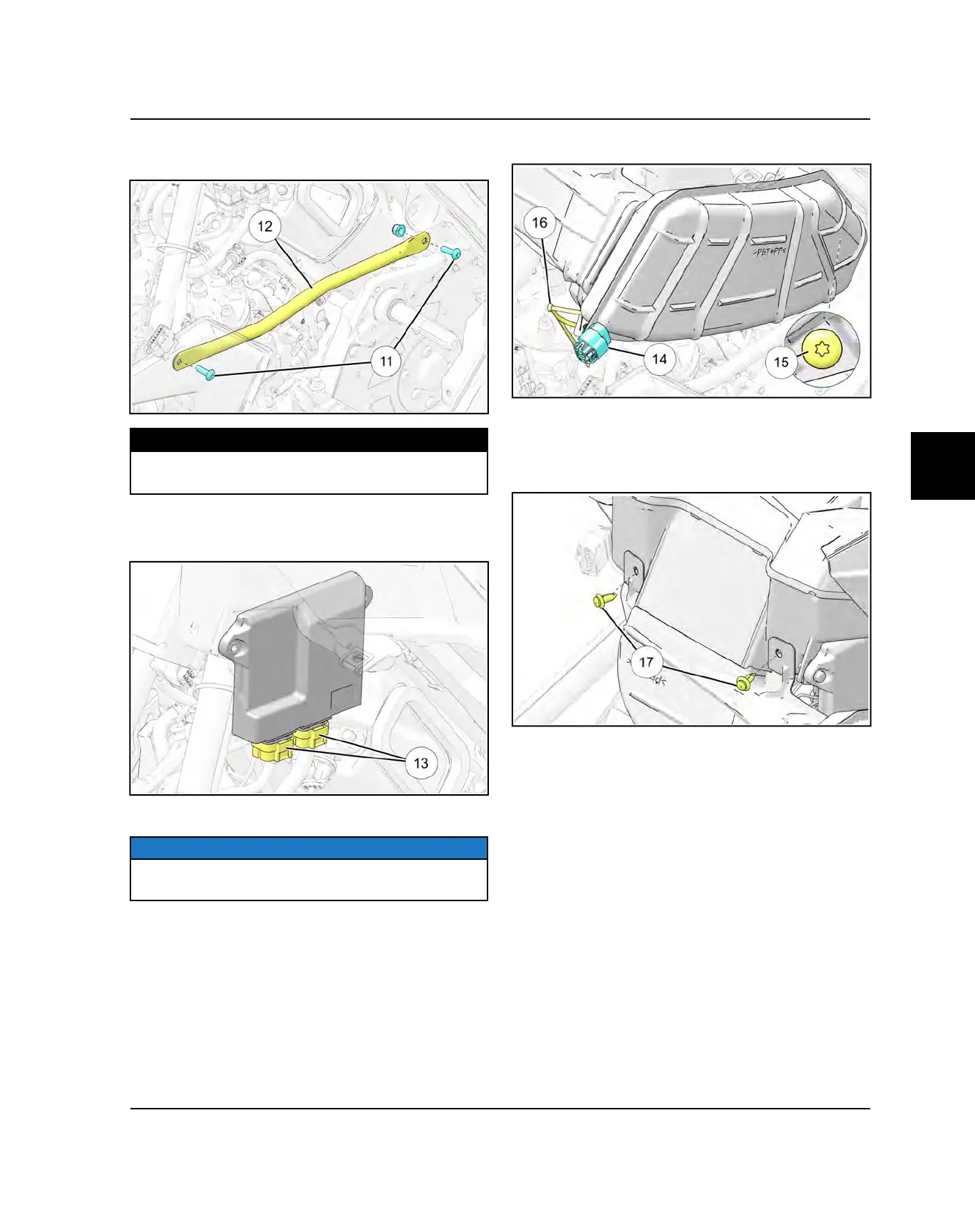

11. Install the fasteners
s
that retain the support brace
d
.
TORQUE
Left Support Brace Fasteners:
22 ft-lbs (30 Nm)
12.Carefully install the intake plenum into place.
13.Connect the ECU to the wiring harness
f
.
14.Carefully install the intake tube as an assembly.
NOTICE
Ensure the intake tube is properly seated to the air box
and properly aligned with the intake plenum.
15.Install the diagnostic connector
g
into the cap.
16.Install the fastener
h
retaining the lower intake tube.
17.Install the ziptie
j
securing the upper intake tube to
the chassis.
18.Install the push rivets
k
retaining the intake tube to
the intake plenum.
19.Turn the handlebar to the right.
