High-Port (Upper / Lower Blades Fully Retracted)
8. If the actuator cable functions properly during the
travel test, it is recommended to re-assemble the
cable onto the servo motor lever pin. No further
service is required.
9. If the actuator cable does not travel the specified full
in / full out distance, sticks, or is damaged, E-VES
service is recommended. See Engine chapter for
more information.

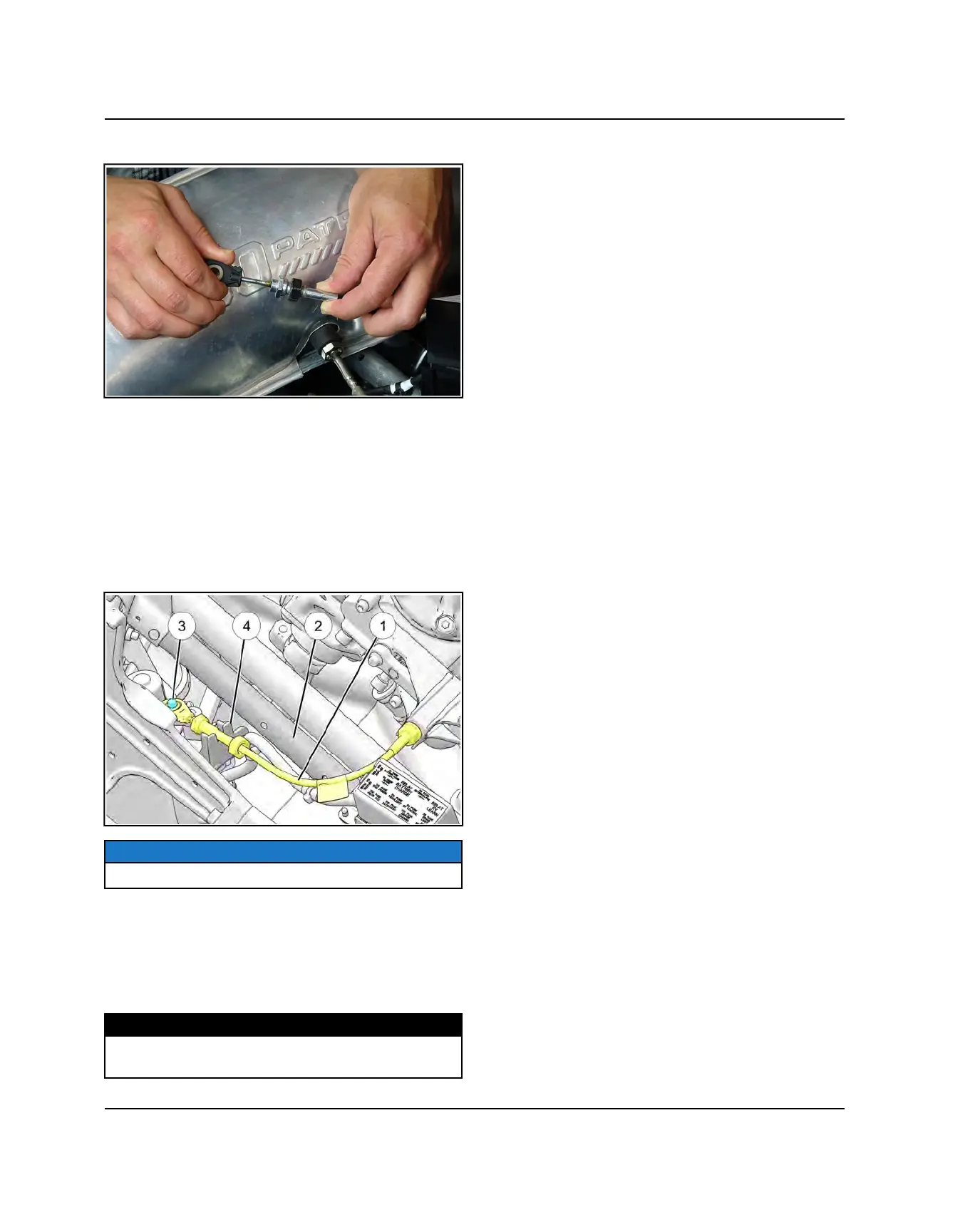

10.To reinstall the actuator cable, verify the cable
q
is
routed over the bulkhead cross tube
w
.
NOTICE
Exhaust pipe removed in image for clarity.
11. Install the cable rod end back onto the servo motor
lever pin
e
.
12.Install cable staked nut into bracket. Verify the staked
nut hex is seated in bracket
r
.
13.Install nut and torque to specification.
TORQUE
E-VES Actuator Cable Jam Nut:
13 ft-lbs (18 N·m)
ENGINE / COOLING / EXHAUST
