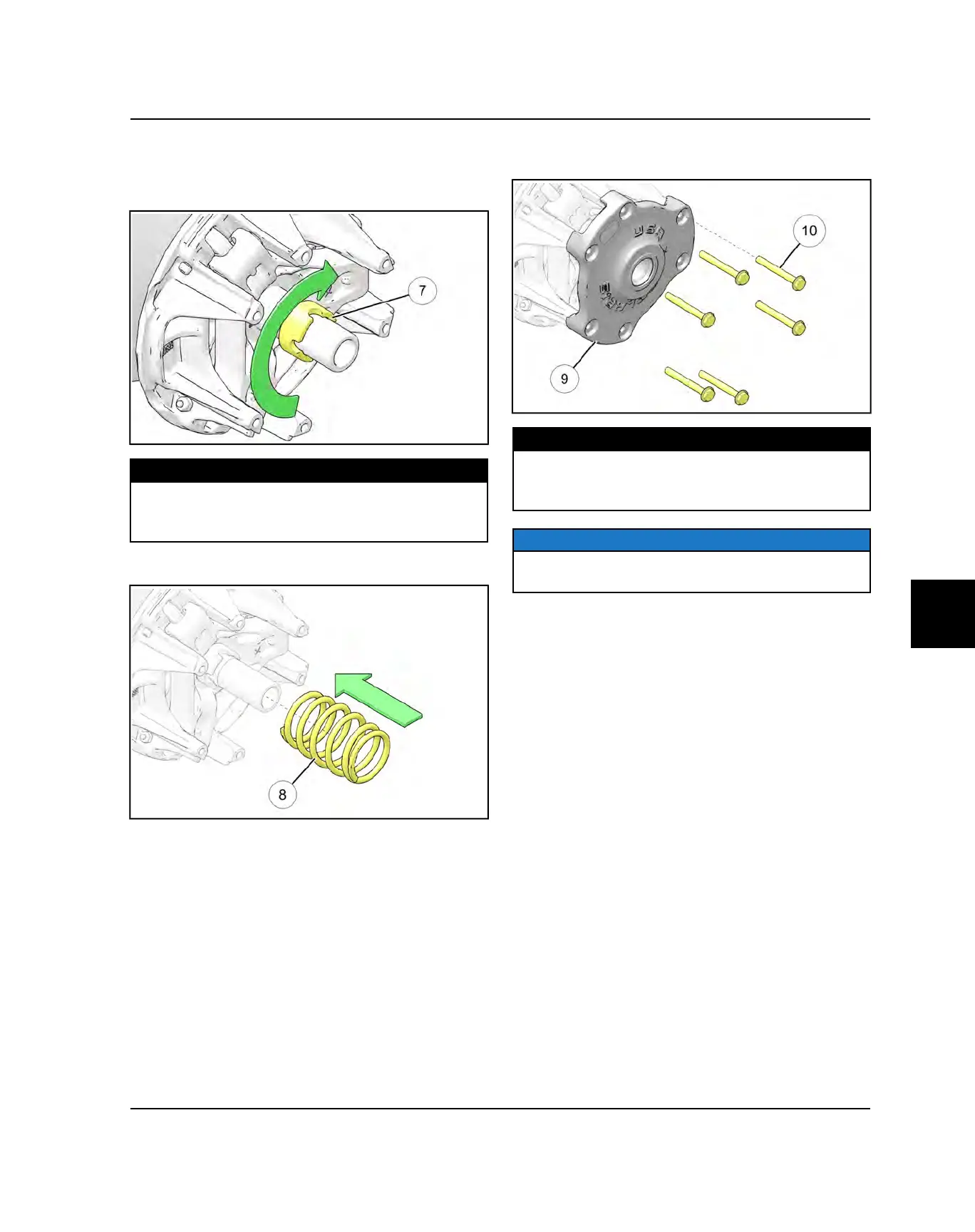

10.Apply Loctite® 243™ to shaft threads, taking care not
to get Loctite® on moveable sheave bushing. Install
the jam nut
u
onto the shaft and torque it to
specification.
TORQUE
Spider Jam Nut Torque:
290-330 ft-lbs (394-447 Nm)
Apply Loctite® 243™ to Threads
11. Place the drive spring
i
on the shaft.
12.Place the cover
o
onto the clutch and torque the
cover fasteners
a
to specification.
TORQUE
Clutch Cover Fasteners:
100 in-lbs (11 Nm)
Use cross pattern.
NOTICE
Do not allow the side loading or misalignment of the
cover or the bushing may become damaged.
