10.24
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

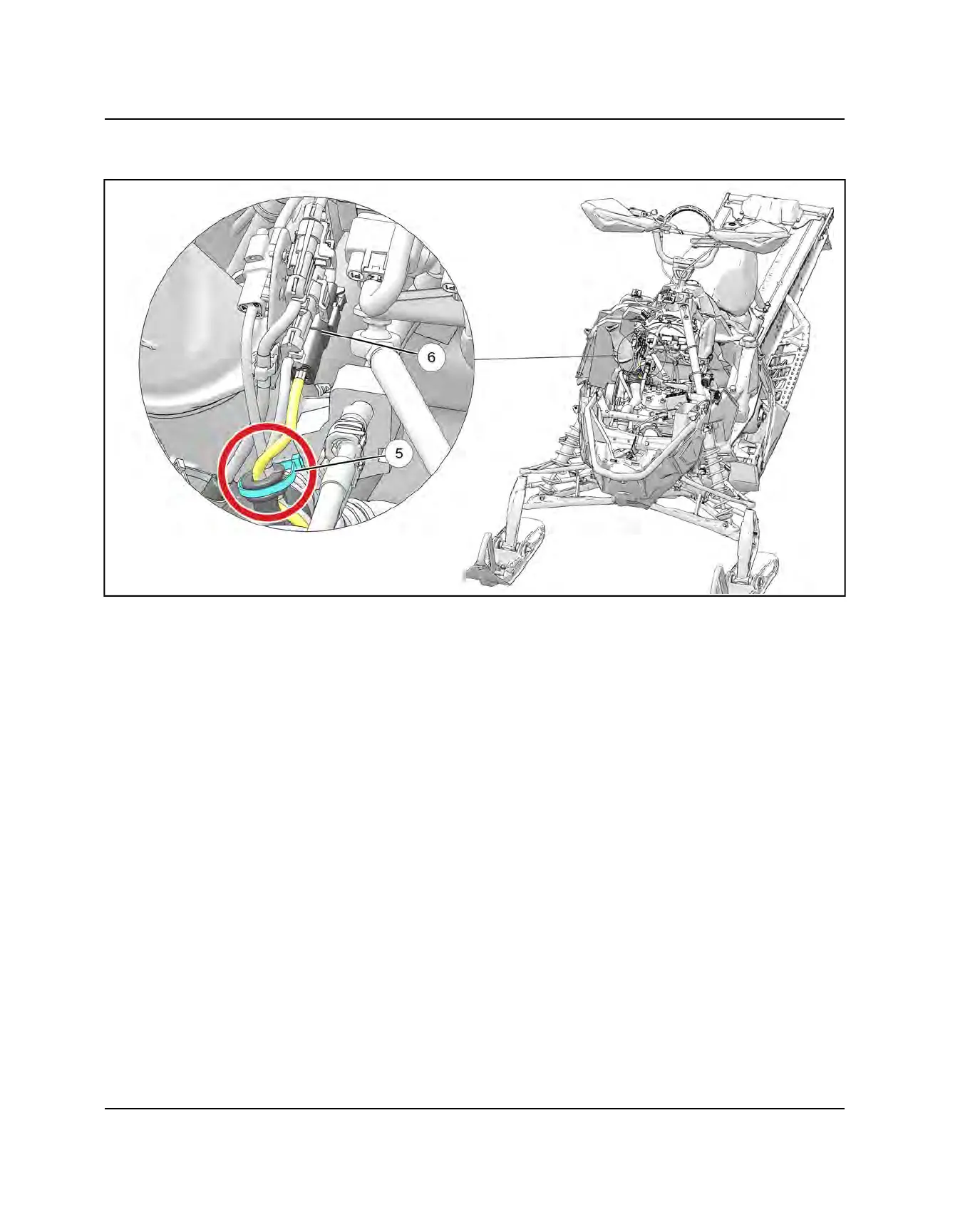

4. Continue to route the fuel injector upward toward the coolant bottle and secure in the hose/electrical support with a
panduit
t
.
5. Complete routing by connecting fuel injector harness connector
y
to the main harness connector. Secure the fuel
injector harness connector to the inside of the connector placement bracket using the Christmas tree clip on the
connector.
BATTERY / ELECTRICAL
