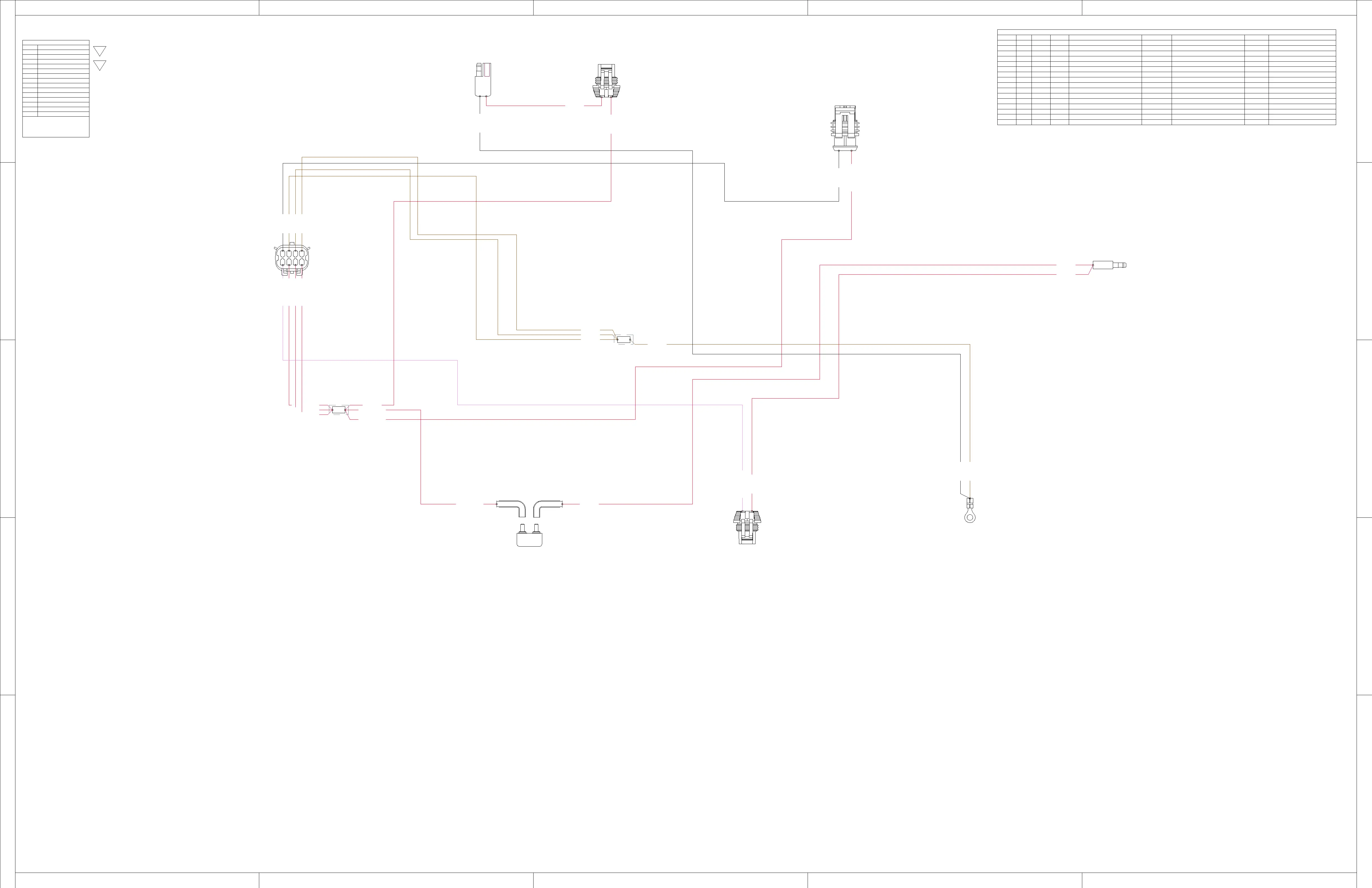

SCHEMATIC CABLE/WIRE TERMINATION TABLE
CCT # TYPE GAUGE COLOR FROM COMPONENT FROM PORT TO COMPONENT TO PORT FUNCTION
001 TXL 1.0 BN MAIN HARNESS 1 GND SPLICE 1 CHASSIS GND
002 TXL 1.0 BN MAIN HARNESS 2 GND SPLICE 1 CHASSIS GND
003 TXL 1.0 BN MAIN HARNESS 3 GND SPLICE 1 CHASSIS GND
004 TXL 0.8 WH MAIN HARNESS 4 START SOLENOID 2 START SOLENOID CONTROL
005 TXL 1.0 RD/YE MAIN HARNESS 5 BATT PWR SPLICE 1 BATTERY CHARGE PWR
006 TXL 1.0 RD/YE MAIN HARNESS 6 BATT PWR SPLICE 1 BATTERY CHARGE PWR
007 TXL 1.0 RD/YE MAIN HARNESS 7 BATT PWR SPLICE 1 BATTERY CHARGE PWR
008 TXL 0.8 PK/BK BATTERY PWR FUSE B MAIN HARNESS 8 FUSED BATTERY PWR
009 TXL 0.8 BK BATTERY - 1 BATTERY TENDER P2 TBD
010 TXL 3.0 RD/YE 20A BREAKER CHASSIS 1 BATT PWR SPLICE 2 BATTERY CHARGE PWR
011 TXL 0.8 RD/YE BATT PWR SPLICE 2 START SOLENOID 1 BATTERY CHARGE PWR
012 TXL 3.0 RD 20A BREAKER BATT 1 BATT PWR P1 BATTERY PWR
013 TXL 0.8 RD BATT PWR P1 BATTERY PWR FUSE A BATTERY PWR
014 TXL 0.8 RD BATTERY TENDER P1 BATTERY TENDER FUSE, 10A A TBD
015 TXL 0.8 RD BATTERY TENDER FUSE, 10A B BATT PWR SPLICE 2 TBD
B-1 TXL 3.0 BN GND SPLICE 2 BATTERY - 1 CHASSIS GND
09/19/19
B-1 BN
B-1 BN
004 WH
004 WH
001 BN
001 BN
002 BN
002 BN
003 BN
003 BN
006 RD/YE
006 RD/YE
007 RD/YE
007 RD/YE
005 RD/YE
005 RD/YE
010 RD/YE
010 RD/YE
008 PK/BK
008 PK/BK
012 RD
012 RD
013 RD
013 RD
011 RD/YE
011 RD/YE
009 BK
009 BK
014 RD
015 RD
015 RD
12
3
45
A
B
C
D
E
WIRE COLOR LEGEND
BG
BK
BU
DB
BN
GY
GN
DG
OG
PK
RD
VT
WH
YE
BEIGE (TAN)
BLACK
LIGHT BLUE
DARK BLUE
BROWN
GRAY
LIGHT GREEN
DARK GREEN
ORANGE
PINK
RED
VIOLET (PURPLE)
WHITE
YELLOW
TWO WIRE COLORS ARE SHOWN
WITH MAIN/TRACE COLORS.
EXAMPLE:RD/YE = RED WITH
YELLOW TRACE.
HARNESS-ESTART
E = ENGINE GROUND
C = CHASSIS GROUND
NC = SWITCH NORMALLY CLOSED
NO = SWITCH NORMALLY OPEN
HARNESS: 2414825-01
SHEET NO. 1 OF 1
DRAWN: 5-MAY-17
CL CLEAR
20 AMP
CIRCUIT
P/N
BATTERY -
1
GND SPLICE
1 2
BATTERY PWR FUSE
DELPHI
15300027
AB
TERMINALS (90 DEG)
.180" FEMALE BULLET
1
.180" FEMALE BULLET
TERMINALS (90 DEG)
1
BATT PWR SPLICE
1 2
START SOLENOID
12
BATT PWR (0.180)
P1
MAIN HARNESS
MOLEX
33482-0801
1234
5678
BATTERY TENDER FUSE, 10A
A B
BATTERY TENDER
P1
P2
