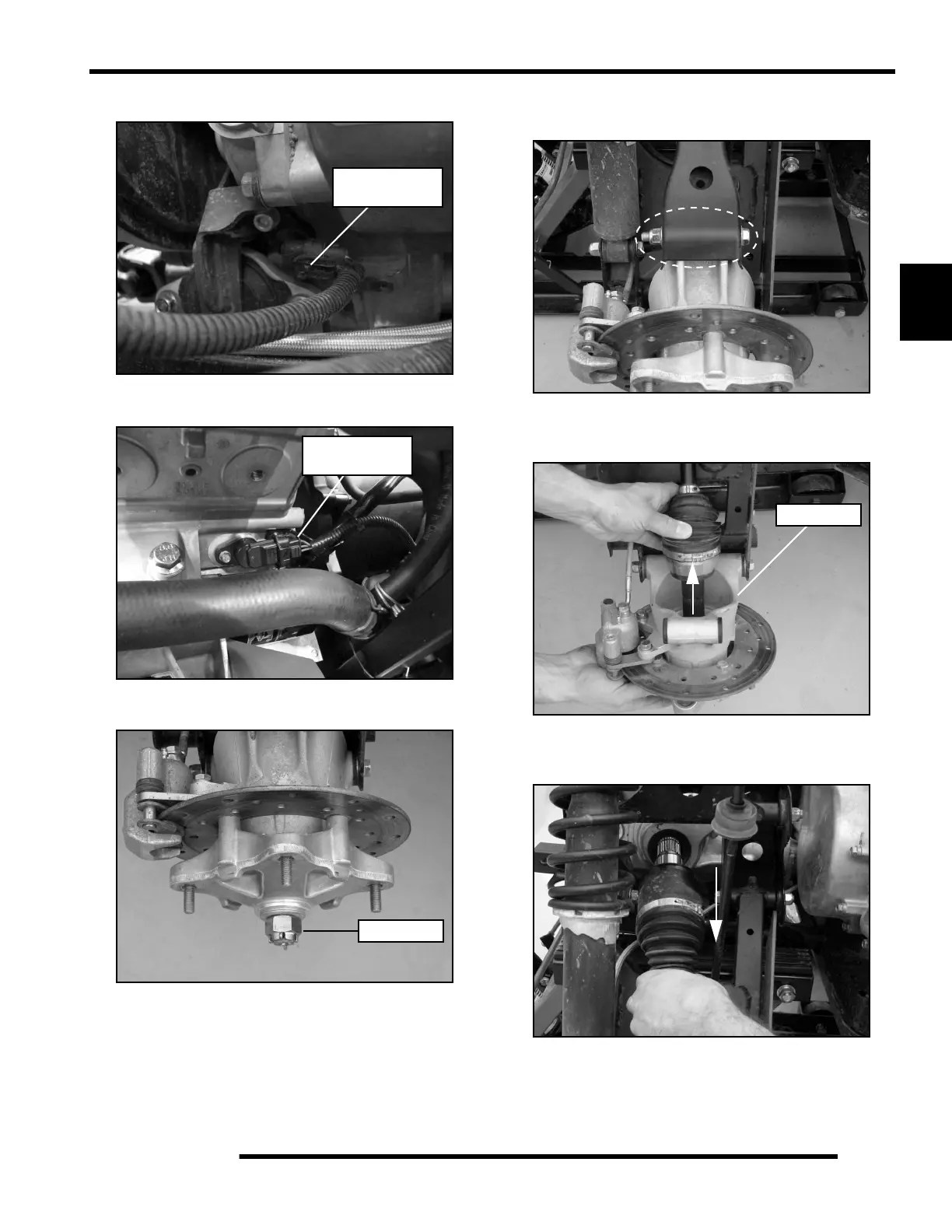

33. Disconnect the transmission speed sensor harness.
34. Disconnect the cam phase sensor connector.
35. Remove the castle nuts from both rear wheel hubs.
36. Remove the through-bolt that attaches the upper A-arm to
the rear hub on both sides of the vehicle.
37. Pivot the A-arms upward and rear hub carriers downward
and remove the drive shafts from the hub carriers.
38. Grasp the rear drive shafts and pull sharply outward on the
shafts to disengage them from the rear gearcase.
NOTE: Clean area around drive shaft orifices on
both sides of rear gearcase and cover orifices using
duct tape. This will prevent the lubricant from
leaking out during removal.
