Slide Scanner Repair Manual Diagnostics and Troubleshooting
125
Auto Reference Finding Origin for GMT and CT Targets
All the image quality tests send specific scanning areas of interest (AOI's) to the scanner. The AOI's
arecomputed with respect to target references or fiducial marks.

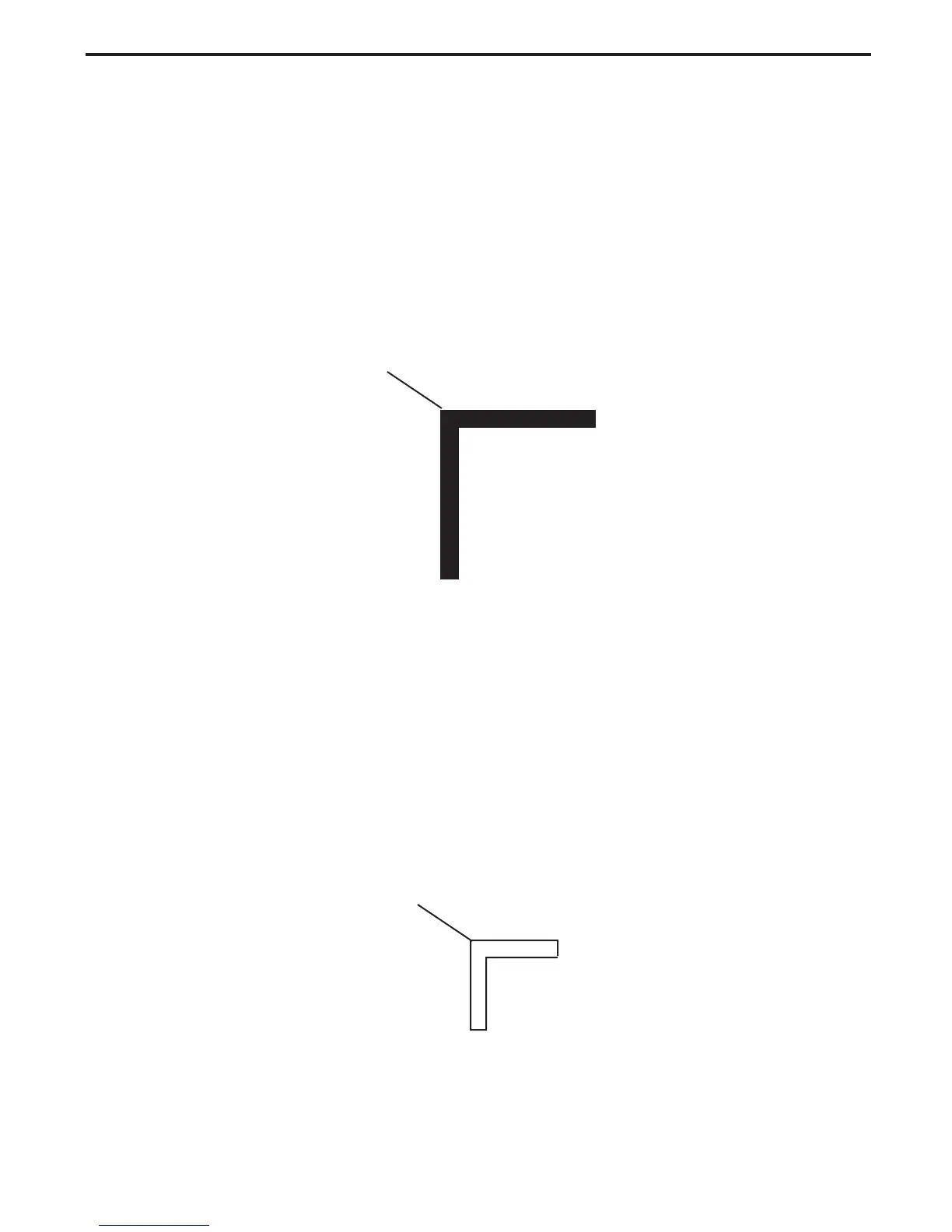

For GMT target
The reference finding origin is located in the upper left corner of the surrounding black frame.
For CT target
The reference finding origin is located in the upper left corner of the white inverted L.
CT
Origin
GMT
Origin
