Slide Scanner Repair Manual Parts Replacement
SCSI Interface (Terminator Power) Fuse
1. Remove the top housing.
2. Unsolder the SCSI interface fuse (Figure 4-12) and then replace it with a new one.
Notes: • The SCSI fuse is soldered to the main controller PC board. When replacing it
be very careful not to damage the main controller PC board.
• Fuse Rating - 2.5A/250V (US)

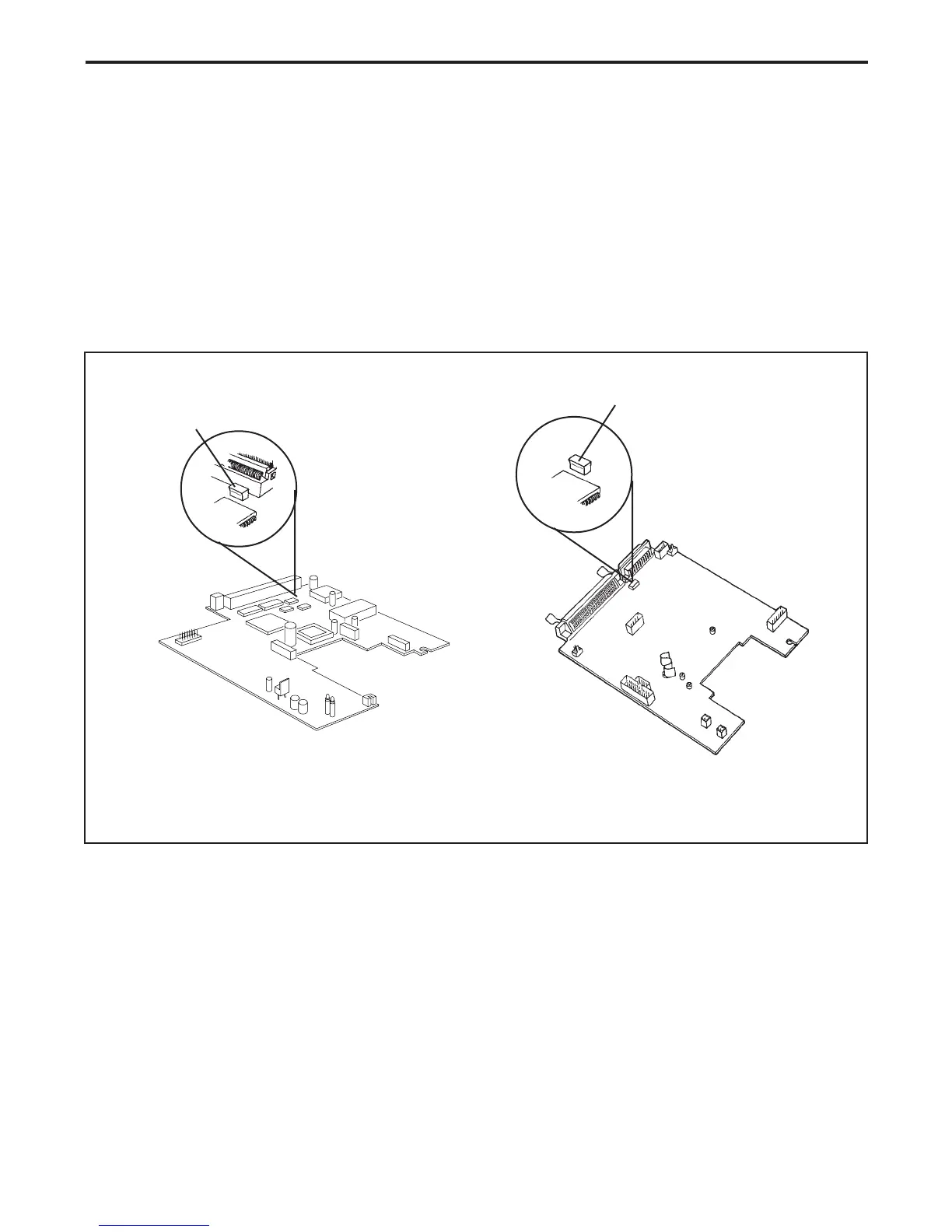

Figure 4-12. Replacing SCSI interface fuse on main controller PC board
3. Re-install the top housing.
SS35/SS35 ES SS35 PLUS
SCSI Fuse
SCSI Fuse
