Slide Scanner Repair Manual Parts Replacement
Power Supply PC Board
Removal
1. Remove the top housing.
2. Remove the main controller PC board.
3. Remove the chassis assembly.
4. If applicable, remove the power supply shield.
5. Disconnect all electrical connectors/cables from the power supply PC board.
Electrical cables to be disconnected:
• Green ground spade lug
• AC input cable
• AC inverter power cable
• Main controller PC board (J5 & J6)
6. Remove the four (4) screws that secures the power supply PC to the bottom case
(Figure 4-8).
7. Lift out the power supply PC board.

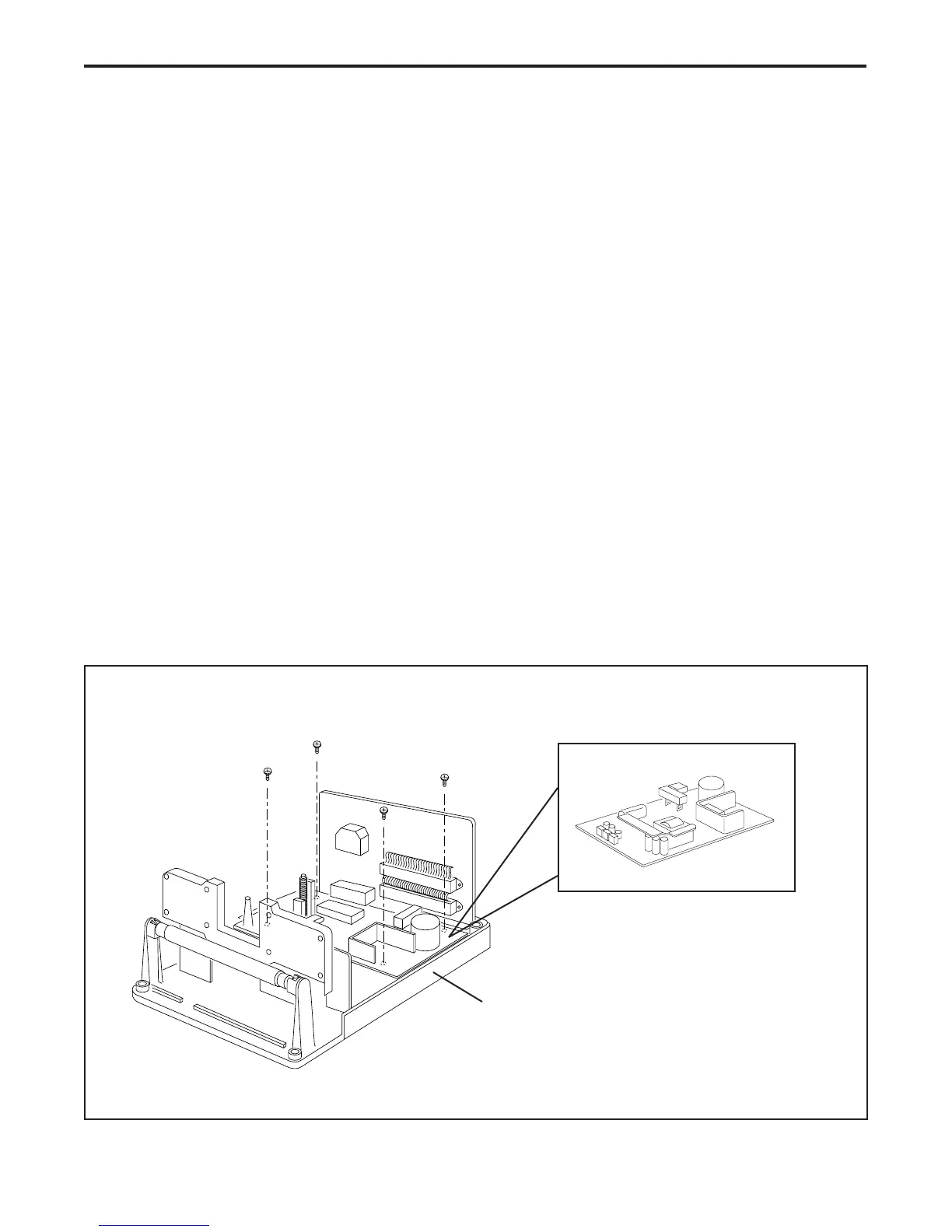

Figure 4-8. Removing power supply PC board
Power Supply PC Board
Bottom Case
