Slide Scanner Repair Manual Parts Replacement
AC Inverter PC Board Fuse
1. Remove the top housing.
2. Remove the AC inverter PC board.
3. Unsolder the AC inverter fuse (Figure 4-11) and then replace it with a new one.
Notes: • The AC inverter fuse is soldered to the AC inverter PC board. When replacing
it be very careful not to damage the AC inverter PC board.
• Fuse Rating - Type 1 Type 2
2.5A/250V (US) 2.5A/175V (US)
T2.5A/250V (Europe)

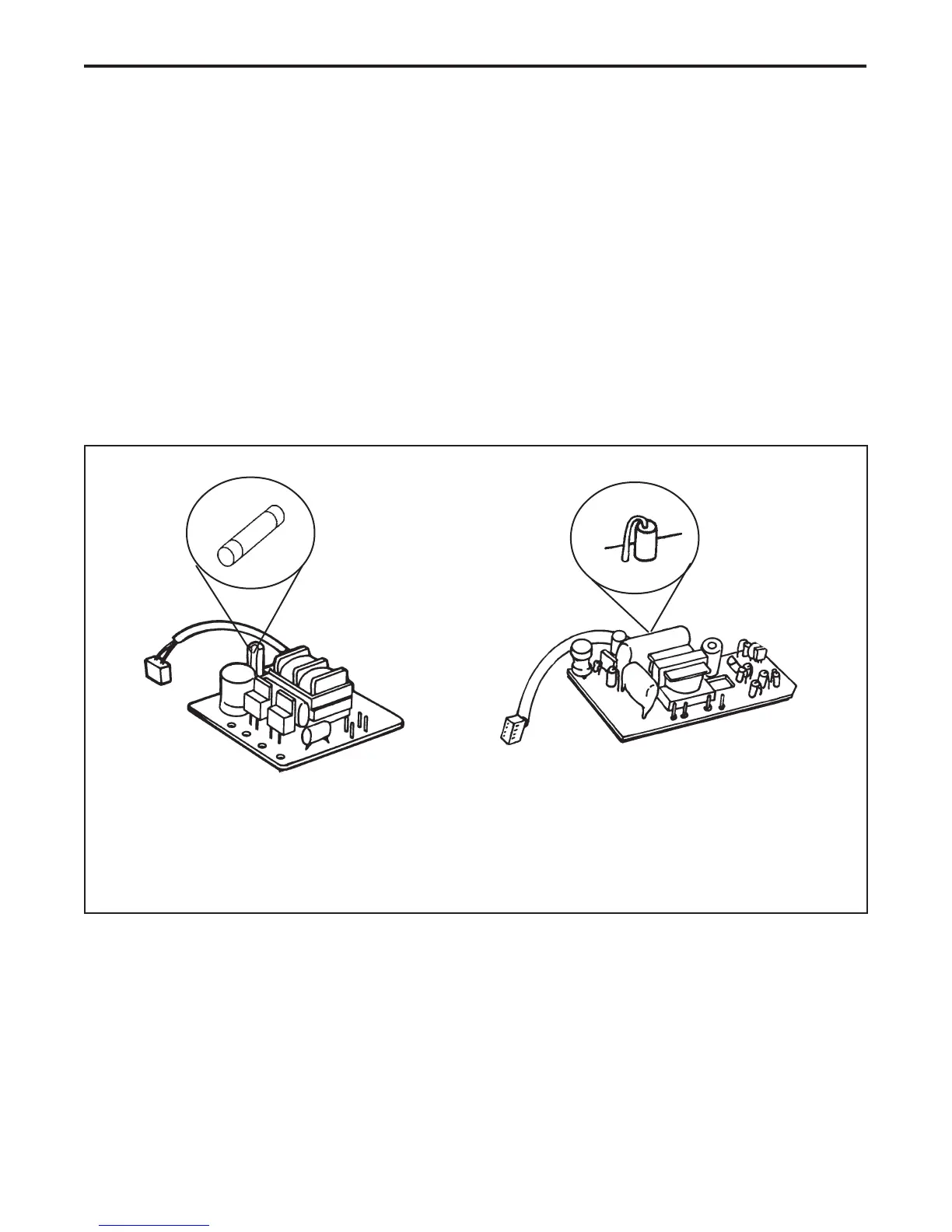

Figure 4-11. Replacing fuse on AC inverter PC board
4. Re-install the AC inverter PC board.
5. Re-install the top housing.
Type 1 Fuse
Type 2 Fuse
