Slide Scanner Repair Manual Parts Replacement
Power Supply PC Board Fuse
1. Remove the top housing.
2. Remove the main controller PC board.
3. Using fuse pullers, remove the blown fuse (Figure 4-10) and then replace it with a new
one.
Note: Fuse Rating - 2.5A/250V (US)
- T2.5A/250V (Europe)

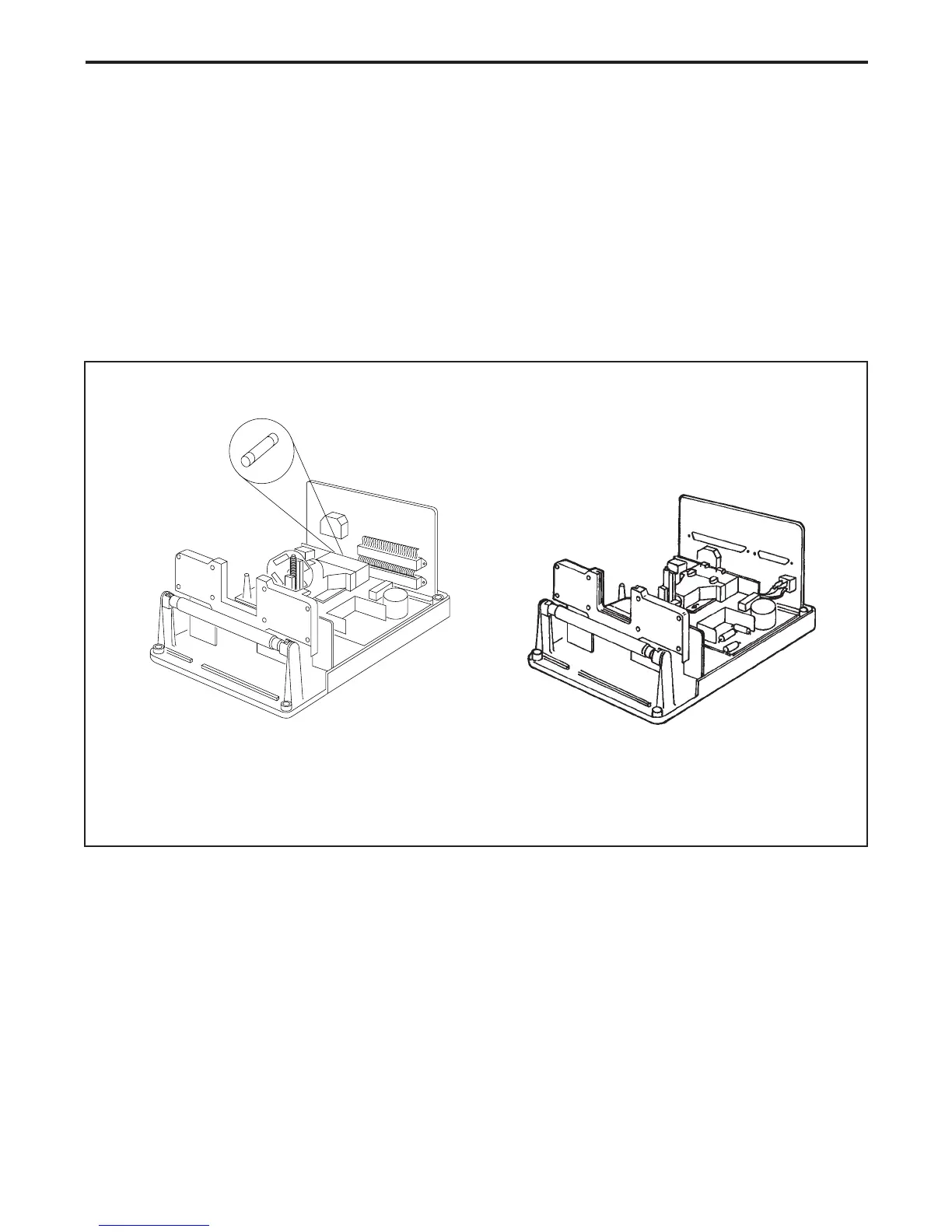

Figure 4-10. Replacing fuse on power supply PC board
4. Re-install the main controller PC board.
5. Re-install the top housing.
