3. Remove the scanning lamp (Figure 4-2).

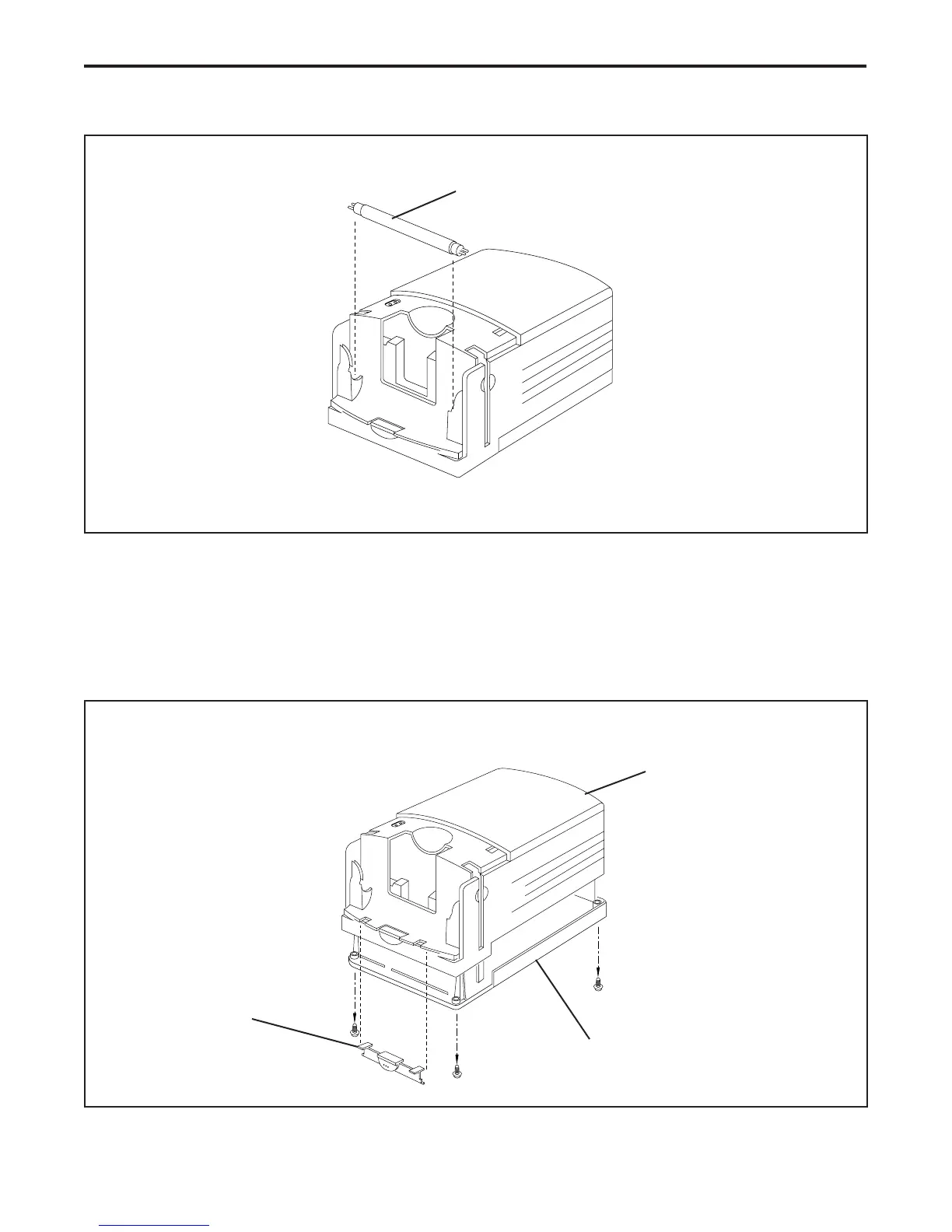

Figure 4-2. Removing scanning lamp
4. Remove the four (4) screws securing the bottom case to the top housing. Lift off the top
housing. The front door latch at the base of the top housing may fall off - Do not loose the front
door latch.
Figure 4-3. Front door latch
Lamp
Top Housing
Front Door Latch
Bottom Case
