EGM-5 Operation Manual V. 1.04 109 support@ppsystems.com

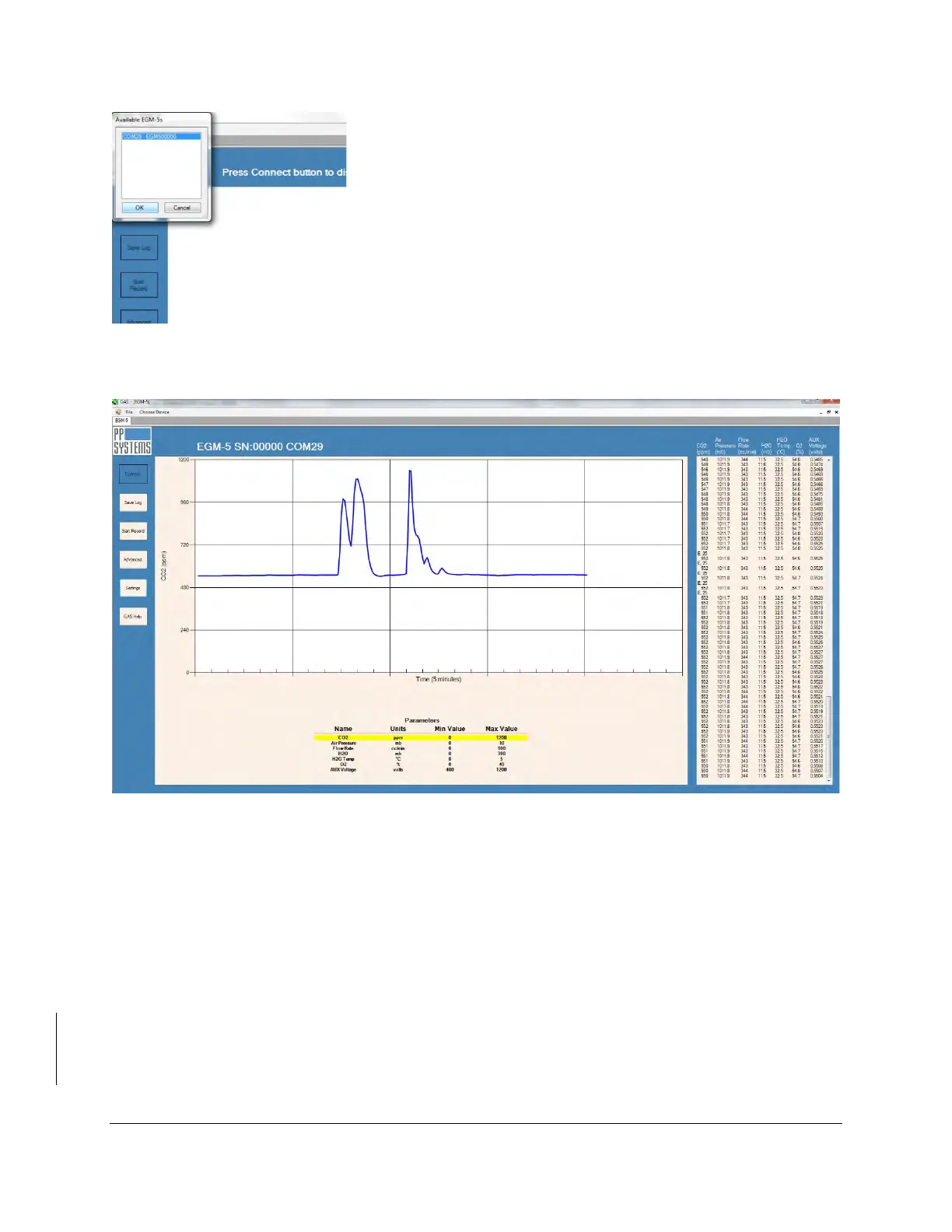

After clicking OK, the main measurement screen will be displayed.
Note: In the top left area, the device name (e.g., EGM-5, SBA-5 or WMA-5), serial number, and COM port
are all displayed. Data is displayed both graphically and numerically. GAS gives the ability to log past
data activity in a current session (Save Log) or record data (Start Record) for a time segment. Clicking the
Advanced button will show a command-line window for sending commands directly to and from the EGM-
5. The Settings button allows the user to modify the parameters’ minimum and maximum values. Data is
saved in comma-delimited .txt files. A graphical representation of each parameter can be seen by clicking
the parameter name in the table below the graph. The highlighted parameter will be displayed on the
graph.
For more detailed information on the functionality of GAS, refer to “Gas Help” under the Help menu in the
software.
