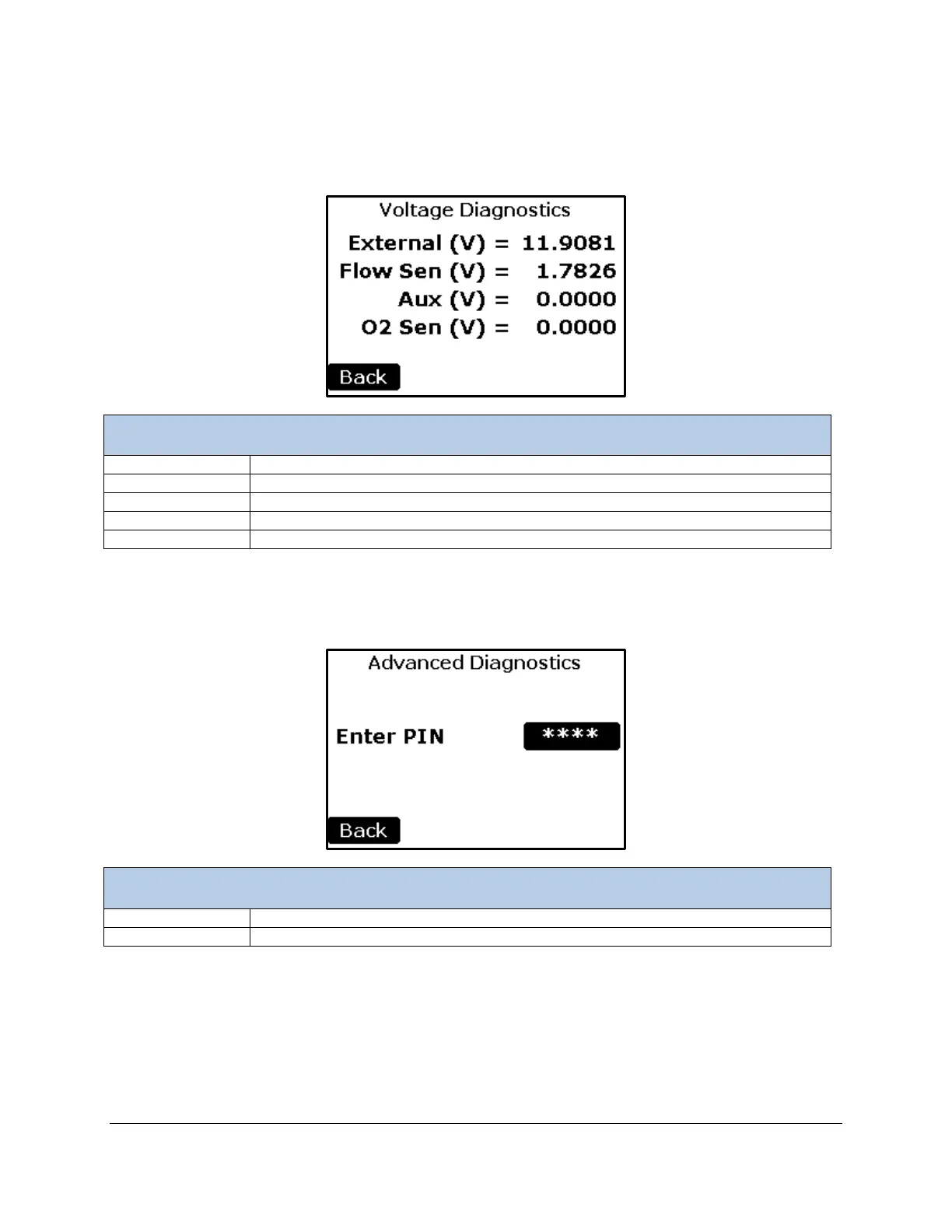

Voltage Diagnostics
This screen displays the external voltage, the flow sensor voltage, the Aux voltage and the O
2
sensor
voltage.
Battery Diagnostics
External (V)
Displays the applied voltage when power is supplied by the power adapter.
Flow Sen (V)
Displays the flow sensor voltage.
Aux (V)
Displays the Aux (Analog Out) voltage.
O2 Sen (V)
Displays the O
2
Sensor voltage.
Back
Returns to the Diagnostics Menu.
Advanced Diagnostics
This screen prompts the user to enter a password in order to view advanced diagnostics features. These
functions are reserved for PP Systems service & troubleshooting use only.
Advanced Diagnostics
****
Displays a number entry screen for the operator to enter their PIN.
Back
Returns to the Diagnostics Menu.
