EGM-5 Operation Manual V. 1.04 114 support@ppsystems.com
It is recommended that you record any changes you make.
SSID: ________________________________________
Security Suite: ________________________________
Encryption: ___________________________________
Passphrase: __________________________________
Connecting to EGM-5 via a Local Area Network
The following steps will allow the EGM-5 to connect to an existing router or wireless access point and
enable connections over a Local Area Network (LAN). Once the EGM-5 is connected to a LAN, any
computer or wireless device that is also connected to that LAN can view the EGM-5 web pages.
1. Connect to the EGM-5 using the SoftAP method (described above) from any wireless device.
Then navigate to the Wireless Network Settings (Main > Settings > Yes).
2. Select WLAN QuickConnect: QuickConnect offers the ability to configure the STA (WLAN
Client) interface on EGM-5 WiFi to establish a connection with an active Access Point.
QuickConnect obtains most of the connection properties from the Access Point and prompts the
user only for the security parameters. The settings are then saved under a WLAN profile so that
connecting to the same network again will be done automatically.

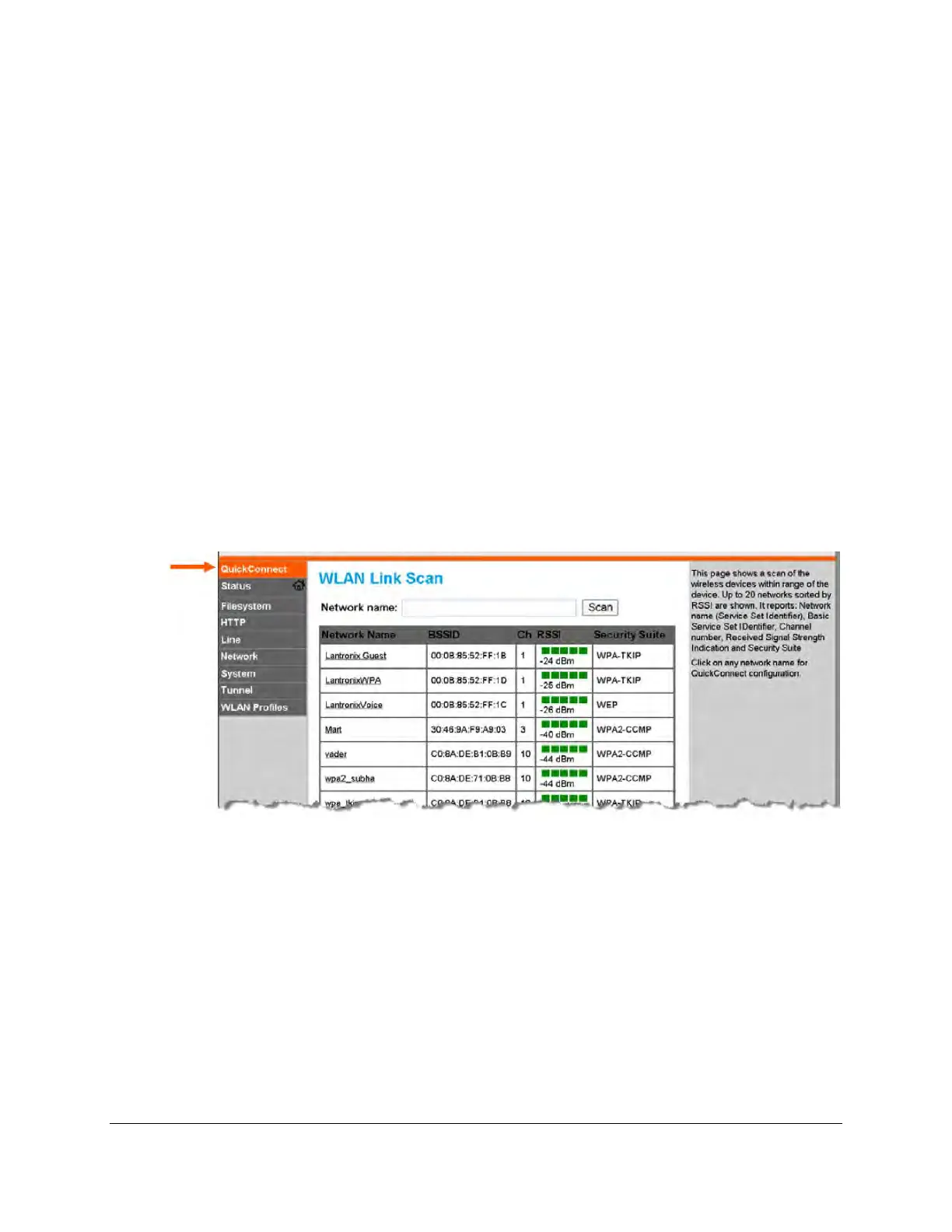

3. Upon selection of the QuickConnect option, the EGM-5 Wi-Fi scans and displays up to 20
wireless networks, sorted by signal strength. Click on a network name to view the connection
details for that particular Access Point.
