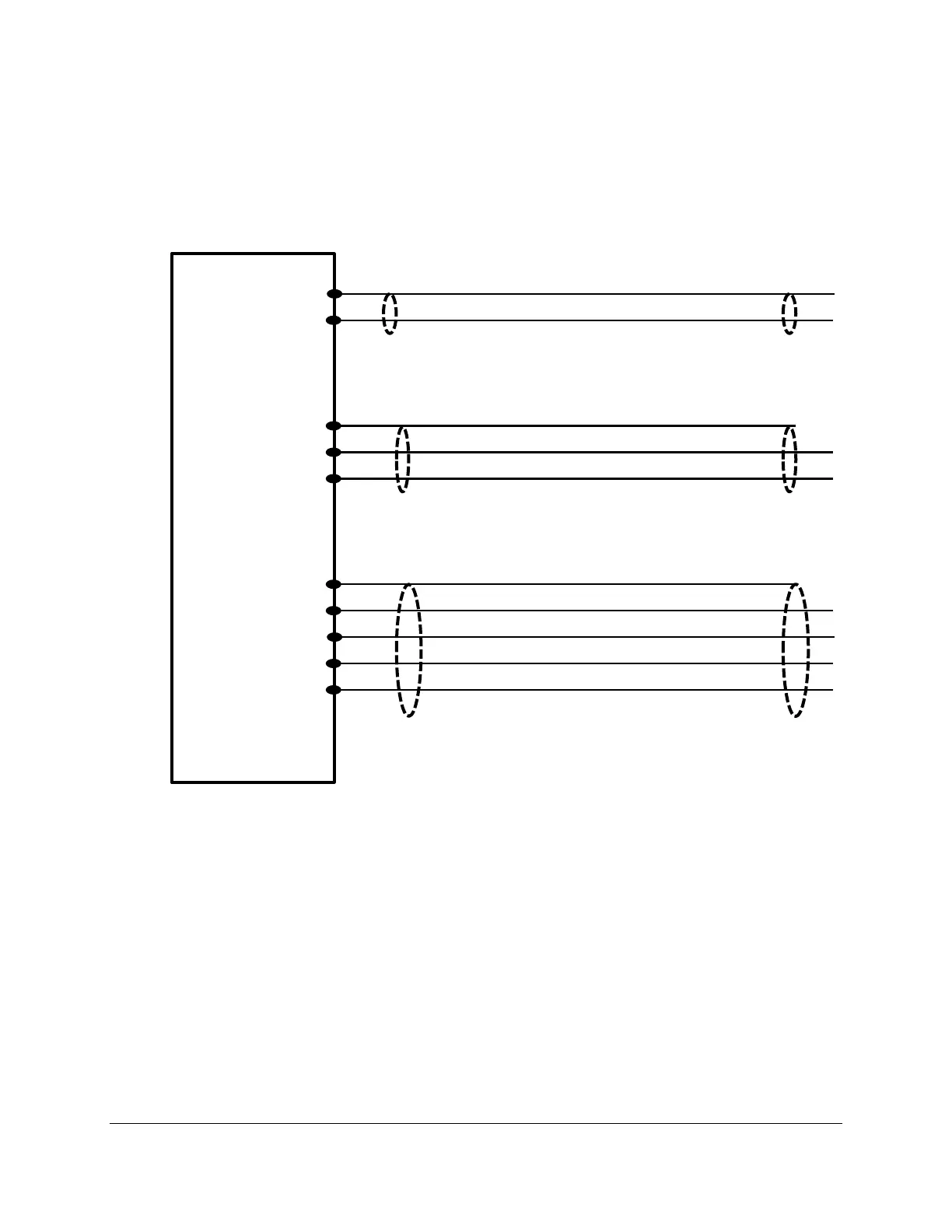

Recommended Cable Interface
When connecting up to external devices via the EGM-5 terminal block we recommend the following cable
type and lengths.
EGM-5 Terminal Block
GND P1
CO2 P2
Shielded cable to external relays or Programmable Logic Controller
Typical cable Belden 9609 4C 24 Shielded. Length 10 Ft M
aximum.
Shielded cable to Data Logger or Programmable Logic Controller
Typical cable Belden 8413 2C 24 Shielded. Length 10 Ft Maximum.
GND P5
Alarm 2A P7
Alarm 2B P8
Alarm 1A P9
Alarm 1B P10
GND P3
Analog In P4
+5v P6
Shielded cable to Sensor or External Zero Switch
Typical cable Belden 8413 2C 24 Shielded. Length 5 Ft Maximum.
