Readings Screen
The Readings Screen displays the values of six parameters in real time; CO
2
, H
2
O, O
2
, Temperature,
Flow Rate, and Pressure. All of these sensors (if included) are located inside the EGM-5 console. Every
EGM-5 will include CO
2
, Pressure and Flow Rate. If the optional H
2
O and/or O
2
sensor is included then
these readings will also be displayed and recorded. If the H
2
O and/or O
2
sensor is not included the
readings will show 0.

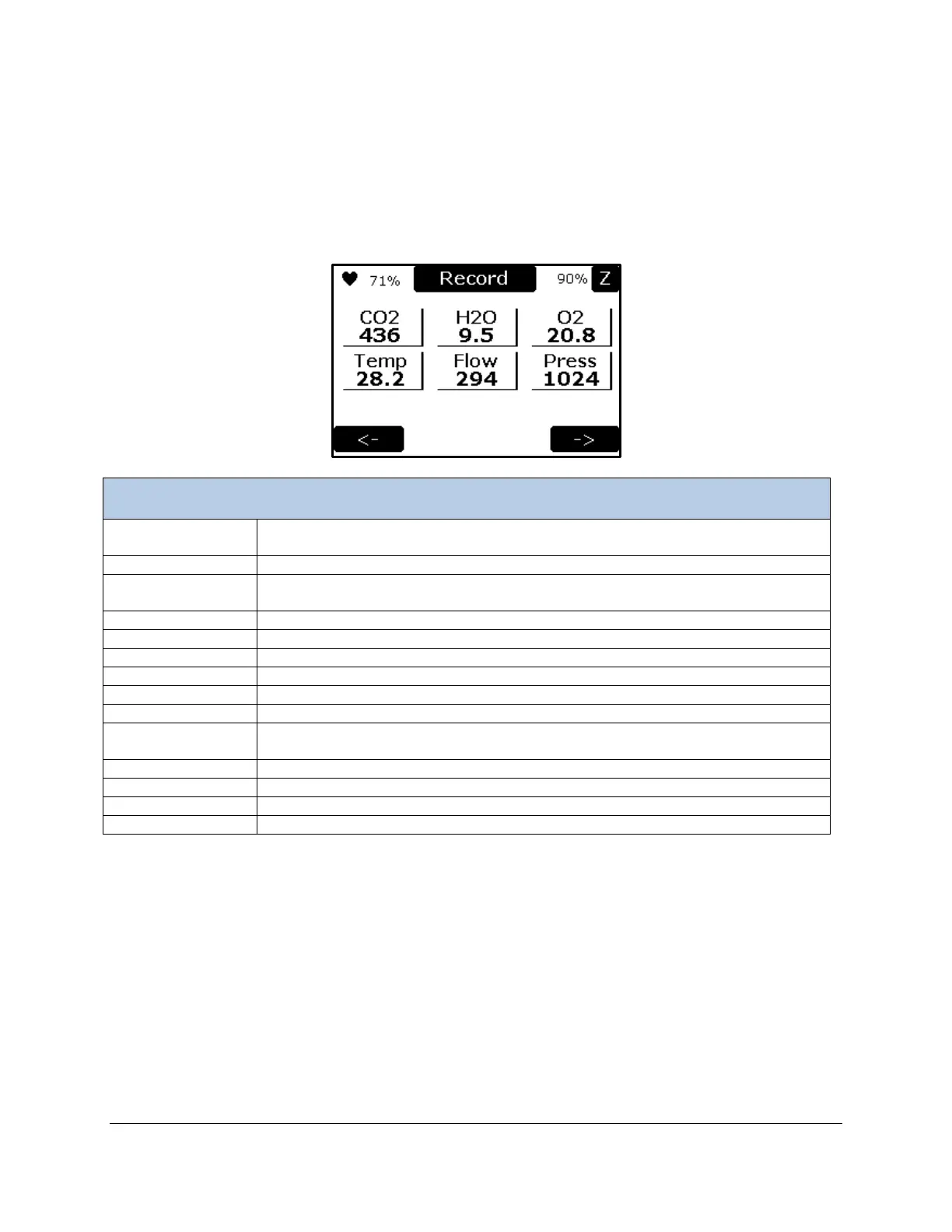

Readings Screen
♥ (Heartbeat)
Pulses on and off to indicate that the system is powered and operating. Press to
return to normal 1 second display updates.
71%
Percentage of battery life remaining.
Record
Saves current data as a marked record in the USB Memory stick and also sends
the record to the host and WiFi ports
90%
Percentage of absorber column remaining.
Z Button
Initiates a zero.
CO2
CO
2
concentration reading (ppm).
Pr
Absolute pressure in sample cell (mb).
Fl
Flow rate reading (cc/min).
H
2
O
H
2
O reading if optional H
2
O sensor is installed (mb).
T
Temperature of the sample gas at the optimal H
2
O sensor if optional H
2
O sensor
is installed (°C).
O
2
O
2
reading if optional O
2
sensor is installed (%).
Left Arrow
Displays the previous Measurement Mode screen (the Measure screen).
Status Box
Any information or error messages are displayed here.
Right Arrow
Continues to the next Measurement Mode screen (the Probe screen).
