7. Reconnect the interface cables: the magnet cable (J1), the speed sensor cable
(J8), the lift drive cable (J4), the lift position cable (J6), the data cable (J10),
green-yellow ground wire and A.C. cables (J2-brown wire & J3-blue-wire) from
the lower PCA.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 115
6 Available Replacement Procedures

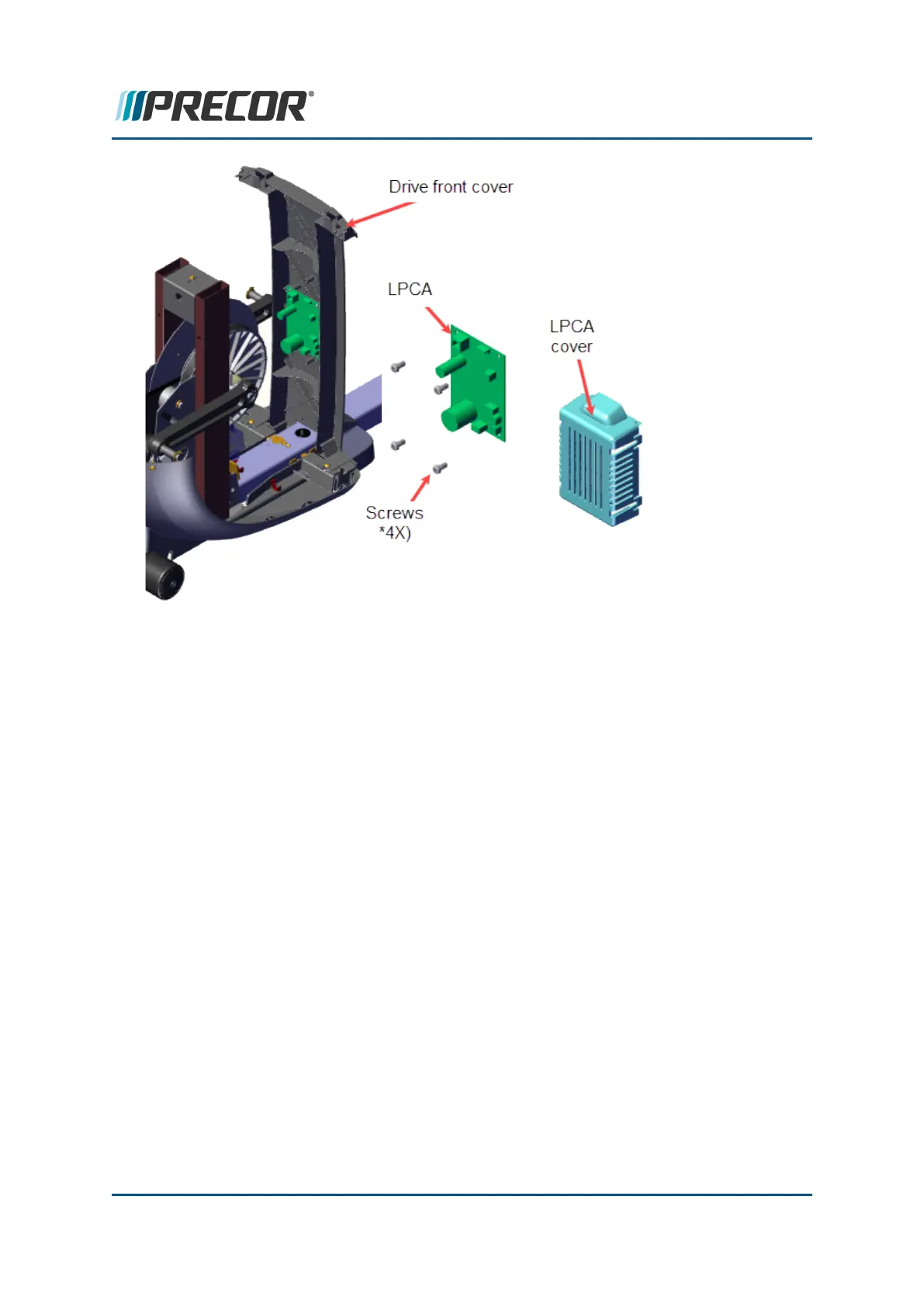

Lower PCA (LPCA) Replacement
