Stairarm Assembly Replacement
This procedure provides instruction to replace the Stairarm Assembly.
Procedure
Review entire procedure before starting.
WARNING:Care must be taken when work is being performed in the area of the
stairarms. Pinch points exist between the stairarm and ramp and between the
stairarm and crankarm, when the rear covers are removed.
Removal
1. Switch the power OFF and unplug
1
the power cord.
2. Remove these rear drive covers: the drive cover access panel, top, left, and right
drive covers (see "Covers and Panels Replacement" on page75).

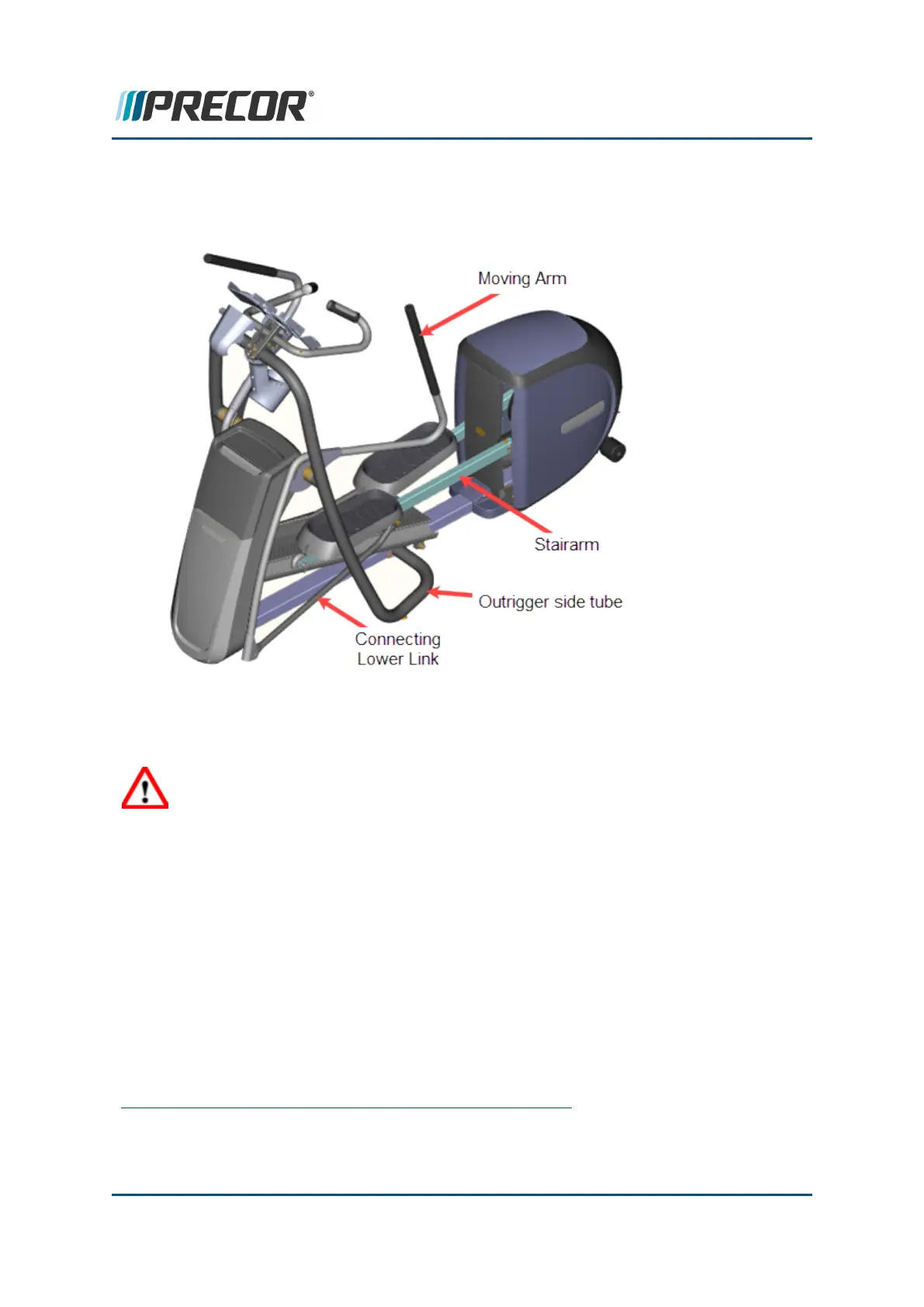

3. If the Moving Arm Connecting Lower Link is attached to the stairarm, remove it from
the stairarm and attach it to the storage pin on the frame weldment.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
