Input Drive and Step-up Belt Tension Adjustment
About
This procedure provides instruction to tension and align the Input Drive and Step-up belts to
specification. The Drive Belt alignment and tension should be verified anytime the Drive or
Step-up belt is replaced or when there are any belt related operational or visual issues, such
as, unusual noises, slippage, frayed belts, etc.
Sonic Belt Tension Adjustment

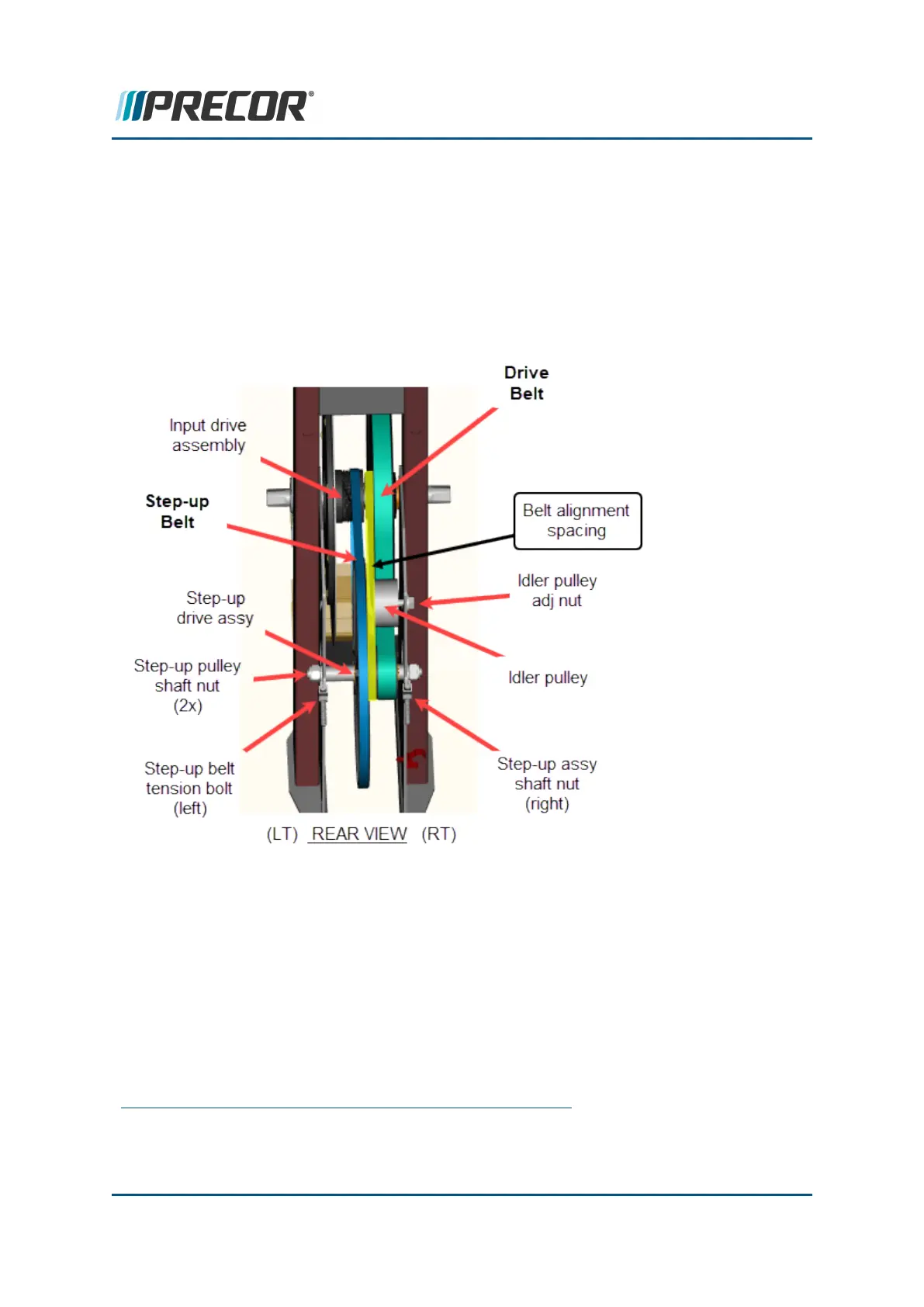

The Drive belt tension will be adjusted first by adjusting the position of the Drive pulley and
then the Step-up belt will be tensioned sonically in terms of belt vibration frequency (Hz
1
)
using the “Gates Carbon Drive™" mobile app.
About Sonic belt tension adjustment
1
The hertz (symbol: Hz) is the derived unit of frequency in the International System of Units
(SI) and is defined as one cycle per second.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 48
5 Adjustment Procedures
Input Drive and Step-up Belt Tension Adjustment
