Making IO Portal Settings
Use the IO Portal menu to view, change, enable or disable IP settings for the IO Ports. To change IO port IP
settings:
1. Click the Device tab.
2. Click the Network Management tab, expand Portal and click on IO Portal.

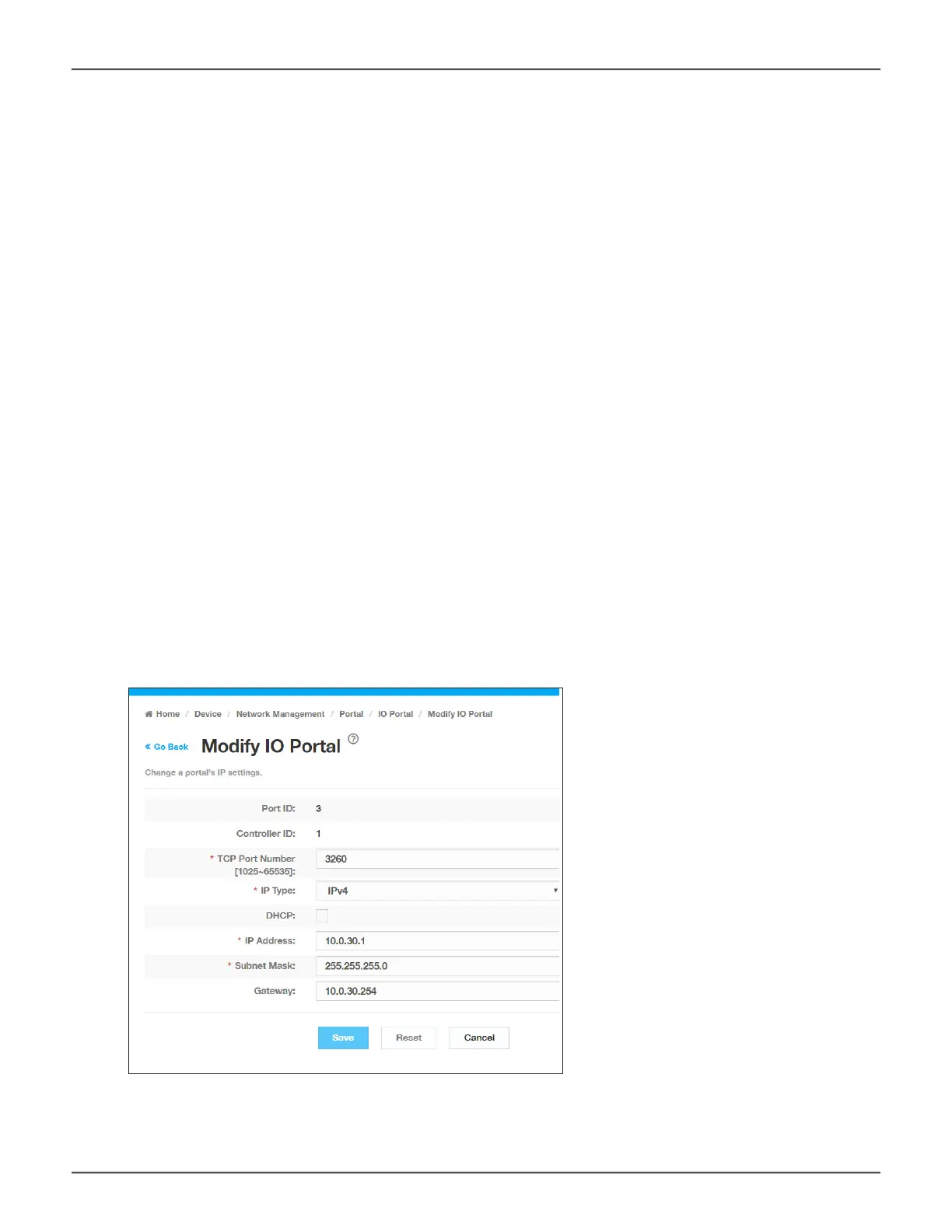

3. To change IO Portal settings, click to select the conguration you want to change, and click on the Modify
button.
• Check the Enable DHCP box to enable a DHCP server to make the IO
port network settings. DHCP is currently supported in IPv4 only.
• For manual network settings, type the IO Port IP address, subnet
mask and gateway IP address into the elds provided.
• Enter a TCP Port Number or use the default 3260.
4. Click the Save button.
IO Portal Conguraon
117
Promise Technology
Management with WebPAM PROe
