Create IO Trunk
Two or more IO ports can be used to create a Trunk Port (link aggregation) in order to increase throughput
capacity. In order to do this, it is necessary to delete at least two IO portals in the IO Portal menu. Then the
physical ports can be aggregated to form a single portal. However, before creating the IO Trunk, it is necessary
to rst delete all the portals on the IO ports that will make up the IO Trunk.
To delete IO Portals on ports to be used for the IO Trunk:
1. Click the Device tab > Network Management > Trunk.
2. Click the Add Trunk button.
3. Click to select the ports to be used for the Trunk.
4. Click to select the Trunk Type: Balance XOR, LACP or Active-Standby
5. Choose the Controller where the Trunk is created and determine which port is Master Port.
6. Click on the Submit button to create the new Trunk.

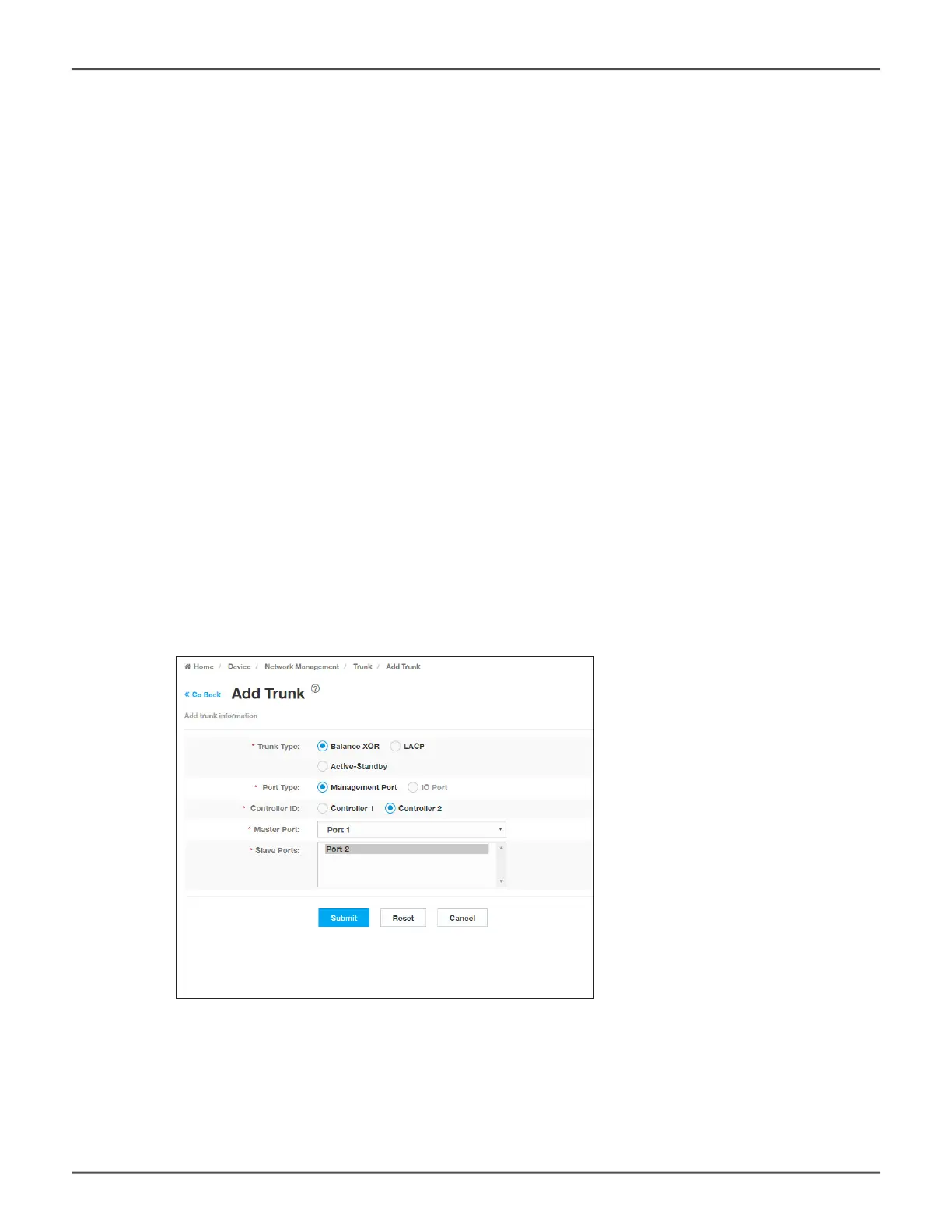

Add Trunk menu
121
Promise Technology
Management with WebPAM PROe
