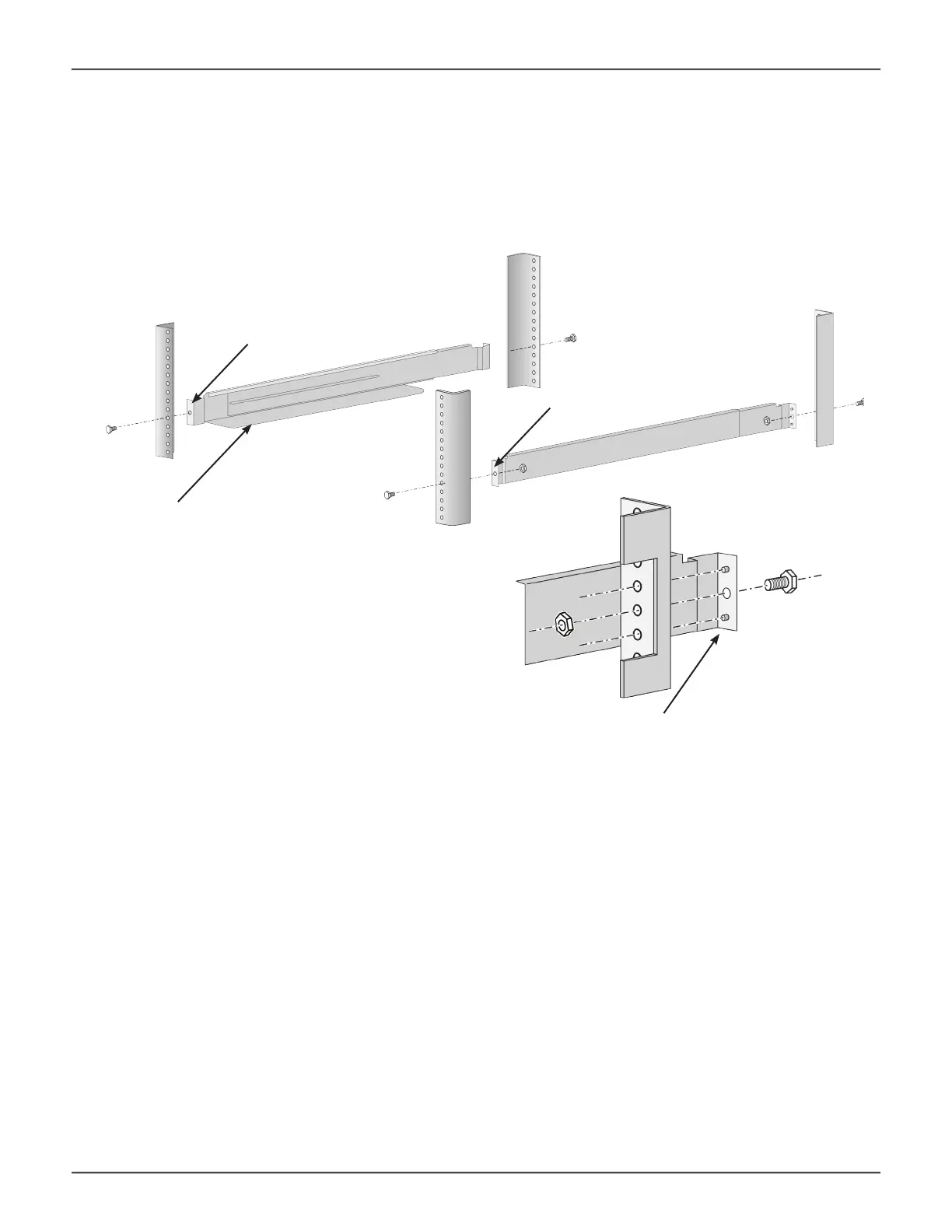

Support ange on the front
end of each rail
Front right label
Front left label
Installing the rails onto the rack
Guide pins on rails align with holes in the rack post
Caution
Tolightentheenclosure,removethepowersupplies,andremove
allharddrivecarriers.Replacethepowersuppliesanddrive
carriersaftertheunitismountedinyourrack.
To install the Vess into a rack with the supplied mounting rails:
1. Checkthetofthemountingrailsinyourracksystem.
2. Adjust the length of the mounting rails as needed.
• The rear rail slides inside the front rail. The rails are composed of two sliding sections and do not require
adjusting screws.
• The front-left and front-right mounting rail ends are labeled.
• Be sure the front rail support is on the bottom facing inward.
• All rail ends, front and rear, attach at the outside of the rack posts.
• The guide pins at the rail ends align with the holes in the rack posts.
• Use the attaching screws and nuts from your rack system. Tighten the screws and nuts according to
instructions for your rack system.
