4.2. Unpacking
Carefully take the device out of the packaging, remove the transport lock and gently place

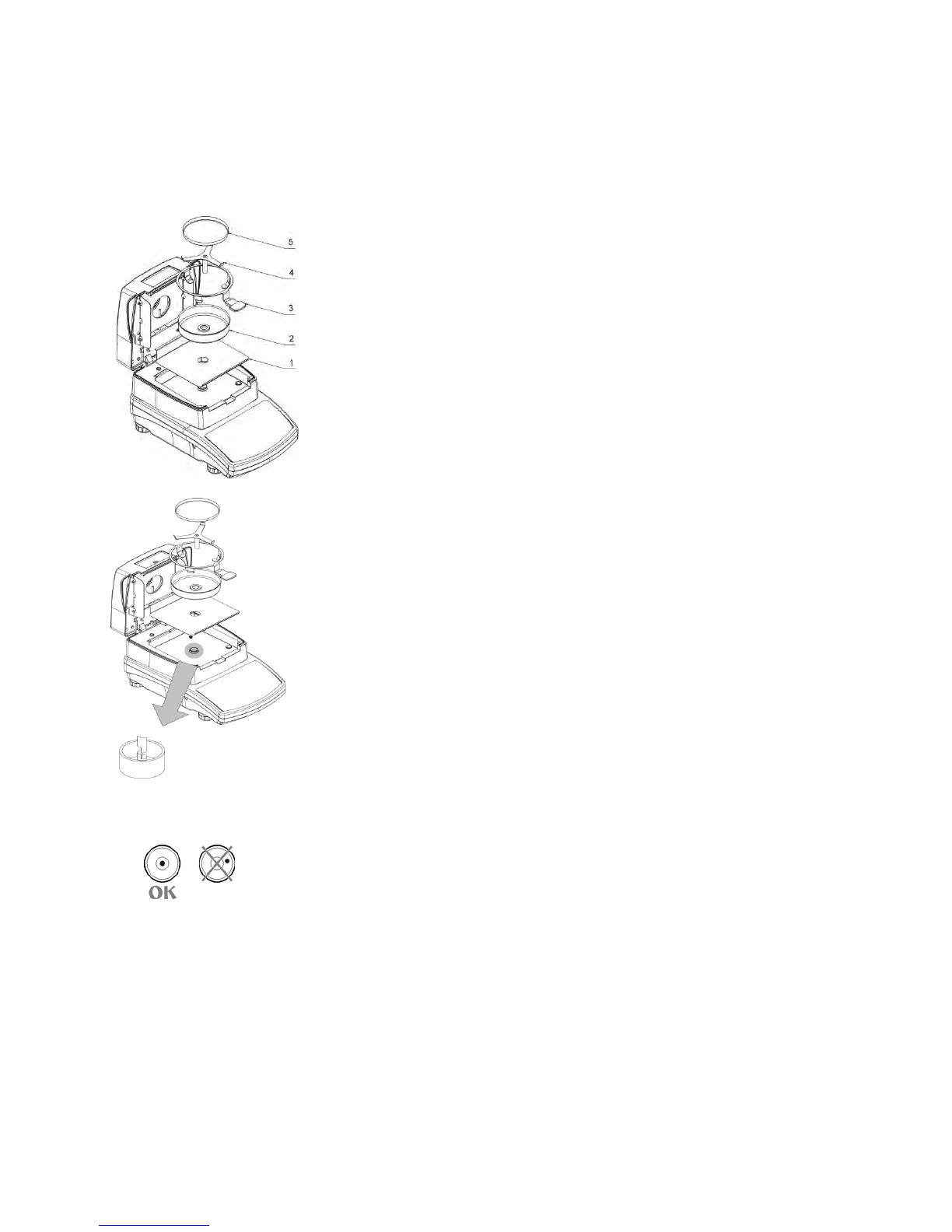

the moisture analyzer at its workplace. Install the components, follow the diagram:
Install:
- draft shield (2)
- weighing pan handle (3),
- weighing pan cross-shaped holder (4),
- disposable pan (5).
Positioning the cross-shaped holder:
When installing the cross-shaped holder (pan supporter)
pay special attention to the correct positioning of its
mandrel. The mandrel features a cut providing unique
positioning of the holder against the pan handle, thus
preventing their contact and friction.
Positioning the cross-shaped holder:
- assemble the holder onto the mandrel and turn it
slightly so that the mandrel cuts are located in their
unique and correct position,
- turn the mandrel gently so as not to damage moisture
analyzer’s measuring system.
4.3. Levelling
It is necessary to level the instrument prior connecting it to the mains. To
level the moisture analyzer turn its feet until an air bubble takes central
position.
4.4. Standard Delivery Components List
• Moisture analyzer.
• Drying chamber base insert
• Drying chamber shield.
• Weighing pan handle
• Cross-shaped holder
• Disposable pan
• Power cord
• User manual - CD version.
