8.6. Buttons, Labels and Text Fields Configuration

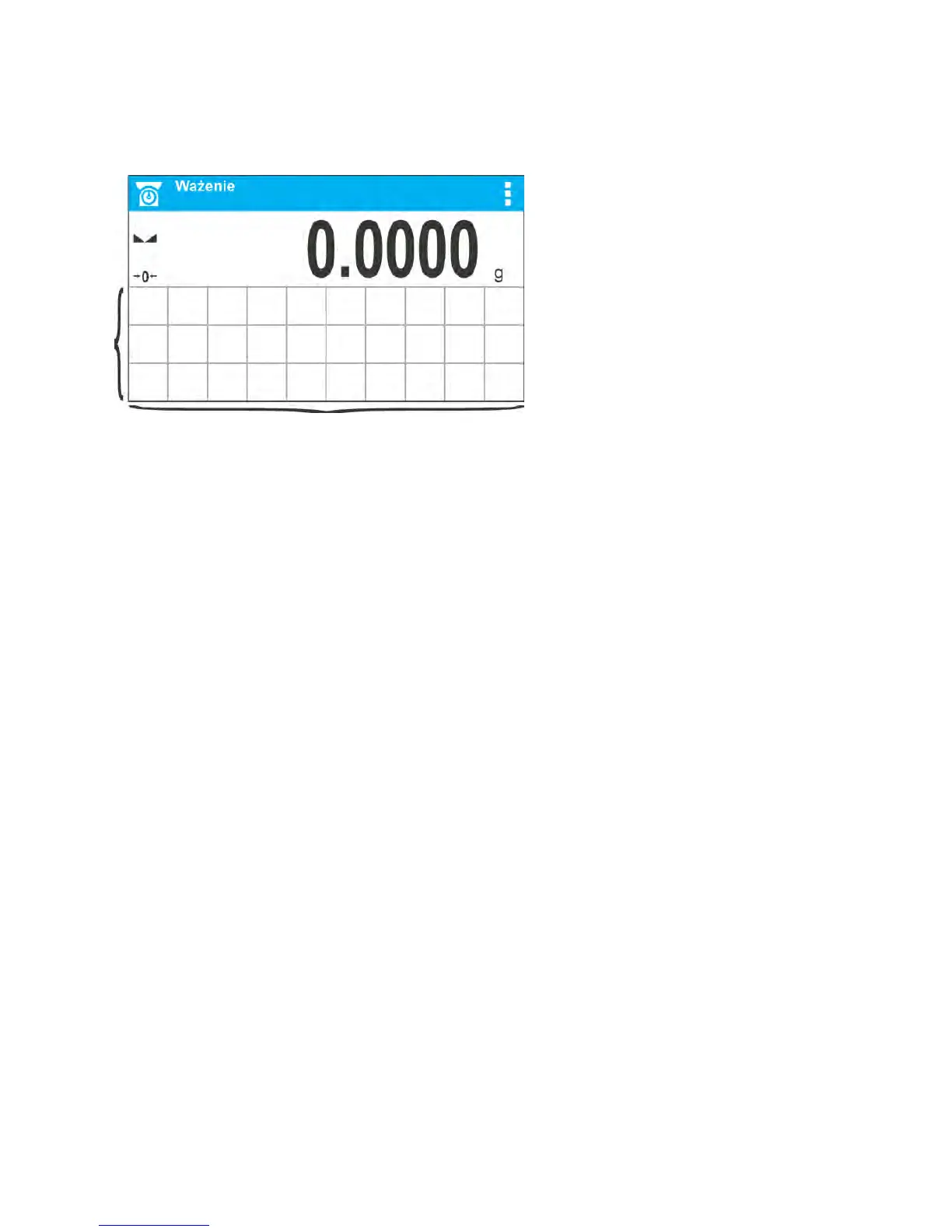

Area below mass indication section can be freely customized. The area has a form of a
table: 3 rows, 10 columns:
The division lines presented above are not visible on the moisture analyzer screen, they are
for information purposes only.
This section is designed to comprise widgets: buttons, labels, text fields, bar graphs:
• button– pictogram to which a particular function is assigned, the function is triggered
upon pressing the pictogram;
• label – field for information, its content is stable. The content depends on displayed
option, wherein the options change in course of moisture analyzer operation. The
label may be active or passive. Active label, when pressed, triggers function that is
assigned to it, e.g. selecting product out of products database. Passive label provides
you with information on current state, no function is assigned to it;
• text field - field for information, both content (text and variables of line 1 and 2) and
function assigned to text field are programmable.
The text field may be active or passive. The operator determines the function
assigned to the text field. The function does not have to refer to the displayed
information e.g. the text field displaying date and time may trigger moisture analyzer
calibration upon being pressed;
• bar graph – available for CHECKWEIGHING and DOSING modes. Field providing
information on Min and Max threshold (DOSING) or target mass (DOSING). The
information is presented in a graphic form, bar graph colour informs whether weight
stays within the specified tolerance or is out of it.
Each working mode features default home screen widgets set. You can customize the
screen.
Configuration procedure:
1. Widgets dimensions (width x height)
• Button – 1x1; 2x2
• Label – 2x1; 3x1; 4x1; 5x1
• Text field - 2x1; 3x1; 4x1; 5x1; 6x1; 7x1; 8x1; 9x1; 10x1
• Bar graph – 5x1; 10x1
To quickly restore the default widgets layout press the widget and hold it until a window with
available options displays. Select <Default screen settings> entry and confirm.
Exemplary arrangement of widgets:
