Connect to Mosaic
After connecting M1 or M1S to the PC via CSU cable (USB) use the icon for the
connection.
A window appears to request the password. Enter the password (see "Password protection").

With the

If a remote connection (via internet) is needed M1/M1S can connect to the appropriate
devices through its USB port.

In this case (ONLY WITH FW > 3.0.1) select "Remote connection".

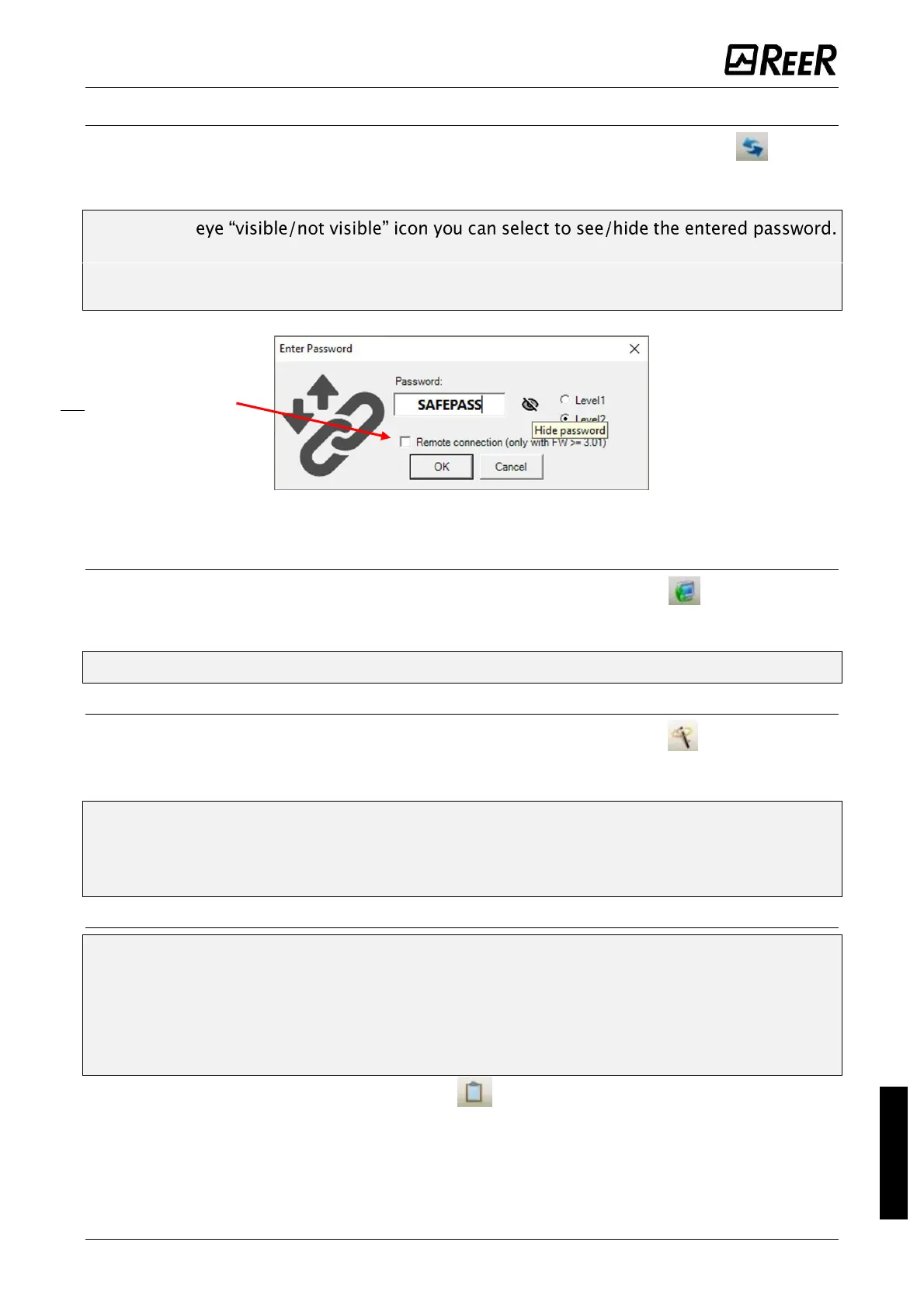

Figure 62
Sending the configuration to the MOSAIC
To send the saved configuration from a PC to M1 or M1S use the icon on the standard
toolbar and wait the execution. M1/M1S will save the project in its internal memory and (if
present) in MCM memory. (Password Required: level 2).

This function is possible only after project validation with OK result.
Download a configuration file (project) from Mosaic
To download a project from MOSAIC M1 or M1S to MSD use the icon on the Standard
toolbar.
MSD will display the project residing in M1 or M1S. (Level 1 password is enough).

If the project must be used on other mosaic system verify the modules effectively
connected (ref. "System composition" on page 102).

Then perform a "Project Validation" (page 97) and a "Testing the System "
(page 106).
Configuration LOG

Within the configuration file (project), are included the creation date and CRC
(4-digit hexadecimal identification) of a project that are stored in M1 or M1S.

If M1S is used, it is also indicated whether the schematic was loaded via MSD or via
MCM memory

This logbook can record up to 5 consecutive events, after which these are overwritten,
starting from the least recent event.
The log file can be visualized using the icon in the standard tool bar.
(Password Required: level 1).
Select here if the
connection is from a PC
not directly connected to
Mosaic via USB (remote
connection)
