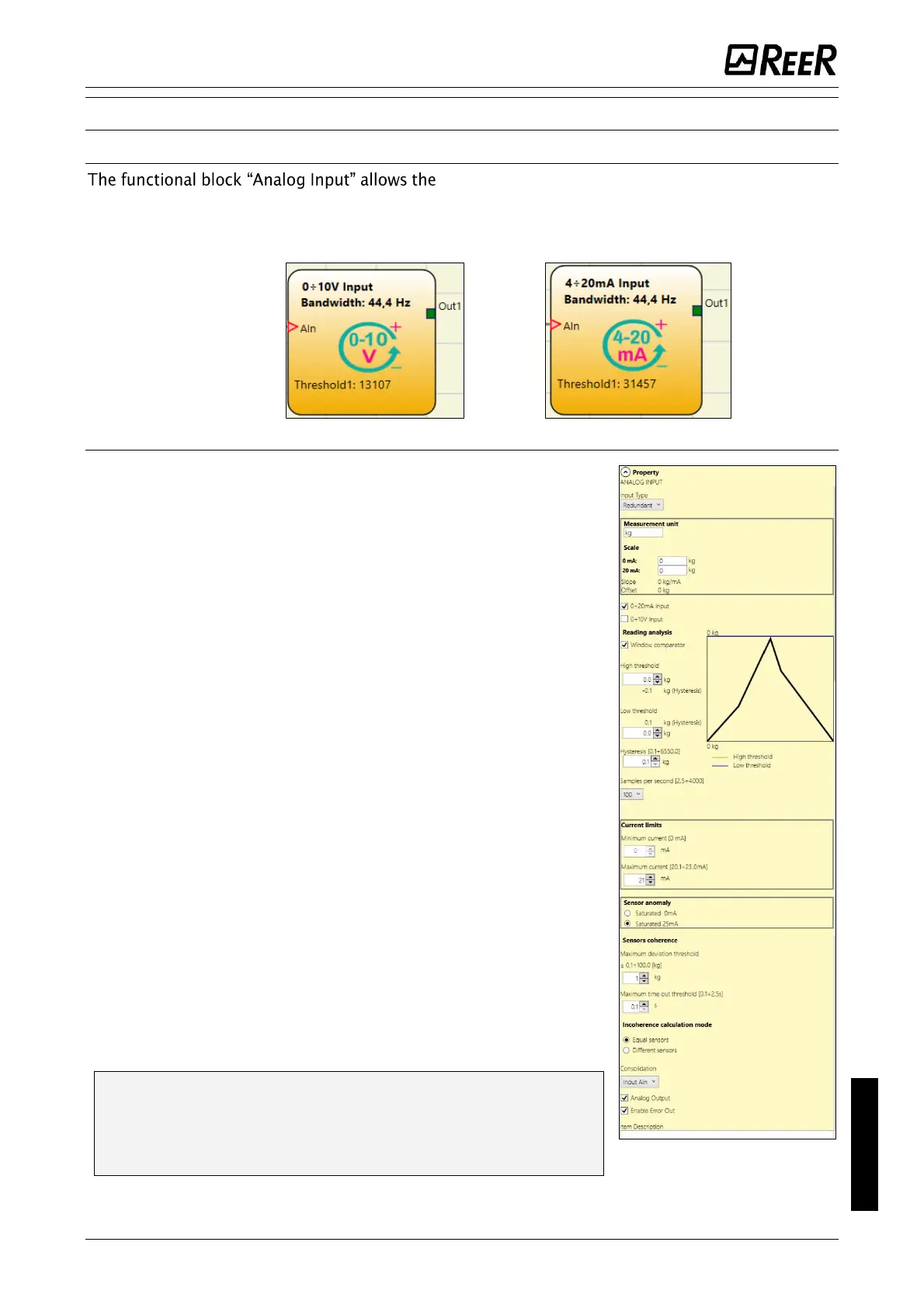

ANALOG INPUT TYPE FUNCTION BLOCKS
ANALOG INPUT (4 inputs each MA4 module, 2 inputs each MA2 module)
selection of which types of analog sensor that will be
used (0...20mA; 4...20mA; 0...10V) together with the parameters that will set the acquisition.
It allows also the configuration of two simple threshold comparators or one window comparator.
Input Voltage channel Input Current channel
Parameters
 Input type
o Single
o Redundant
 Sensors coherence
 Incoherence
calculation mode
 Consolidation
 Measurement unit
 Scale: minimum value
 Scale: maximum value
 0...20 mA Input
 0...10 V Input
 Window comparator
 Enable threshold1
 Enable threshold2
 Hysteresis
 Sample per second
 Current limit: minimum current
 Current limit: maximum current
 Sensor anomaly
o Saturated 0 mA
o Saturated 25 mA
 Analog Output
 Enable Error Out
 If wrong parameters are attributed (eg. scale values not
corresponding to those used by sensor), the functionality of the
MA2/MA4 module is compromised.
 Perform a complete system TEST (see page 106).
