MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 10/07/2020 • Rev.38 171
English

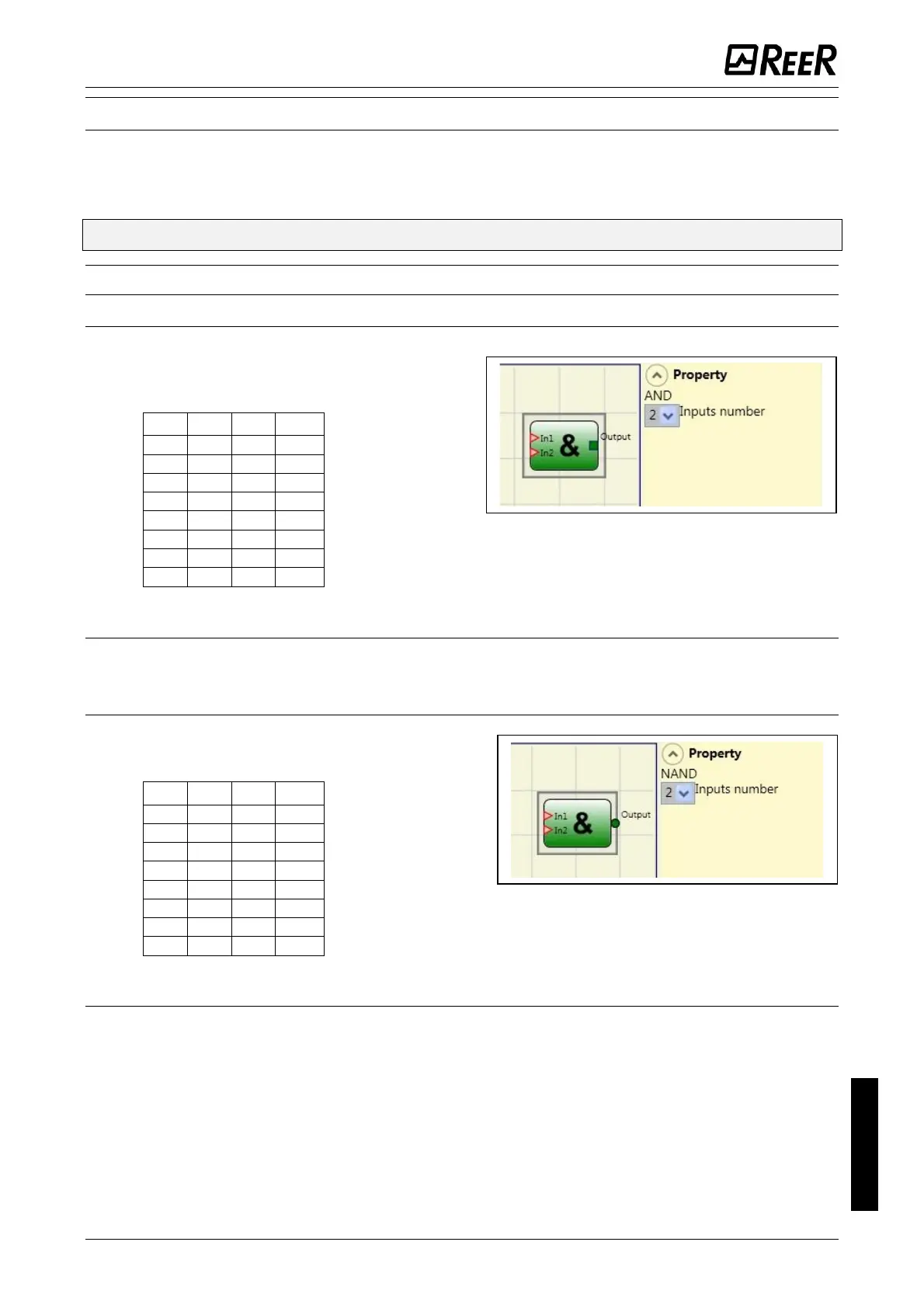

OPERATOR FUNCTION BLOCKS
All the input of these operators could be inverted (logical NOT). It could be done clicking
with the right mouse key on the input to be inverted. A little circle will be showed on the
inverted input. To cancel the inversion, simply click another time on the same input pin.

The maximum number of functional blocks is 64 with M1 or 128 with M1S.
LOGICAL OPERATORS
AND
Logical AND returns an output of 1 (TRUE) if all
the inputs are 1 (TRUE).
In1
In2
Inx
Out
0
0
0
0
1
0
0
0
0
1
0
0
1
1
0
0
0
0
1
0
1
0
1
0
0
1
1
0
1
1
1
1
Parameters
Number of inputs: this is used to set between 2 and 8 inputs.
NAND
Logical NAND returns an output of 0 (FALSE) if
all the inputs are 1 (TRUE).
In1
In2
Inx
Out
0
0
0
1
1
0
0
1
0
1
0
1
1
1
0
1
0
0
1
1
1
0
1
1
0
1
1
1
1
1
1
0
Parameters
Number of inputs: this is used to set between 2 and 8 inputs.
