MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
132 8540780 • 10/07/2020 • Rev.38
 WARNING: if Reset is enabled, the input consecutive to those used by the functional block must
be used. For example: if inputs 1 and 2 are used for the functional block, input 3 must be used
for Reset.
Power-on test: If selected, enables the power-on test of the safety device. This test requires
activation and de-activation of the device in order to run a complete functional check and
enable the Output terminal. This test is required only at machine start-up (power-on of the
module)
Filter (ms): Permits filtering of signals from the safety device. This filter can be set to
between 3 and 250 ms and eliminates any rebounds on the contacts. The duration of the
filter affects calculation of module total response time.
Simultaneity (ms): always active. Determines the maximum permissible time (ms) between
switching of the various signals from the external contacts of the device.
Enable Error Out: If selected reports a fault detected by the function block.
Item description: Permits insertion of a descriptive text of the function of the component.
This text will be displayed in the top part of the symbol.

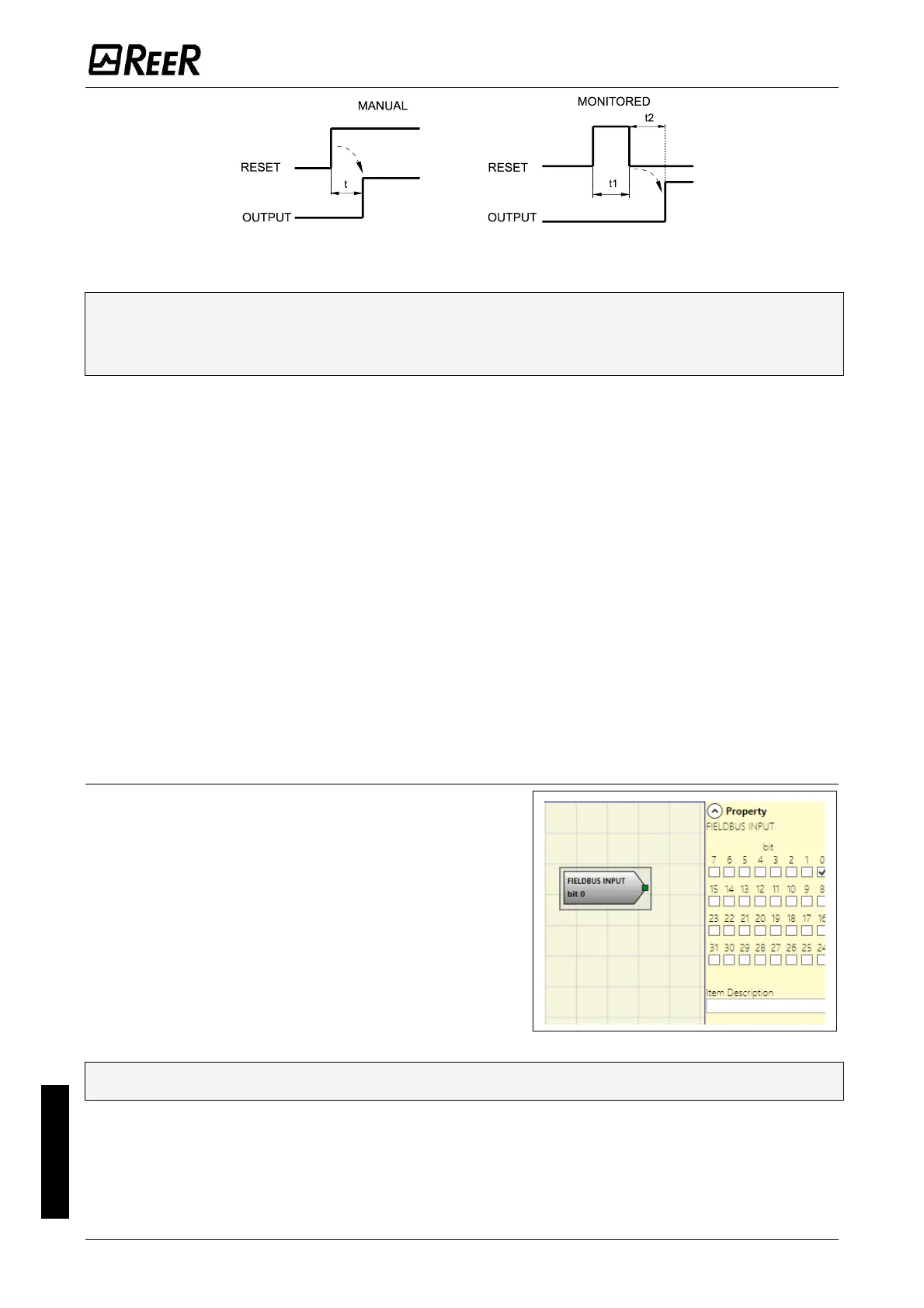

FIELDBUS INPUT
Element that permits insertion of a non-safety input
whose status is modified via the fieldbus.
It is possible to insert a maximum of 32 virtual
inputs with M1S and MBx fw >= 2.0 and 8 with M1
or MBx fw < 2.0.
The bit on which status is to be modified must be
selected for each.
On the fieldbus the states are represented with 4
bytes with M1S and 1 byte with M1.
(For more detailed information, consult the fieldbus
manual on the MSD CD-ROM).
 WARNING: the FIELDBUS INPUT is NOT a safety input.
