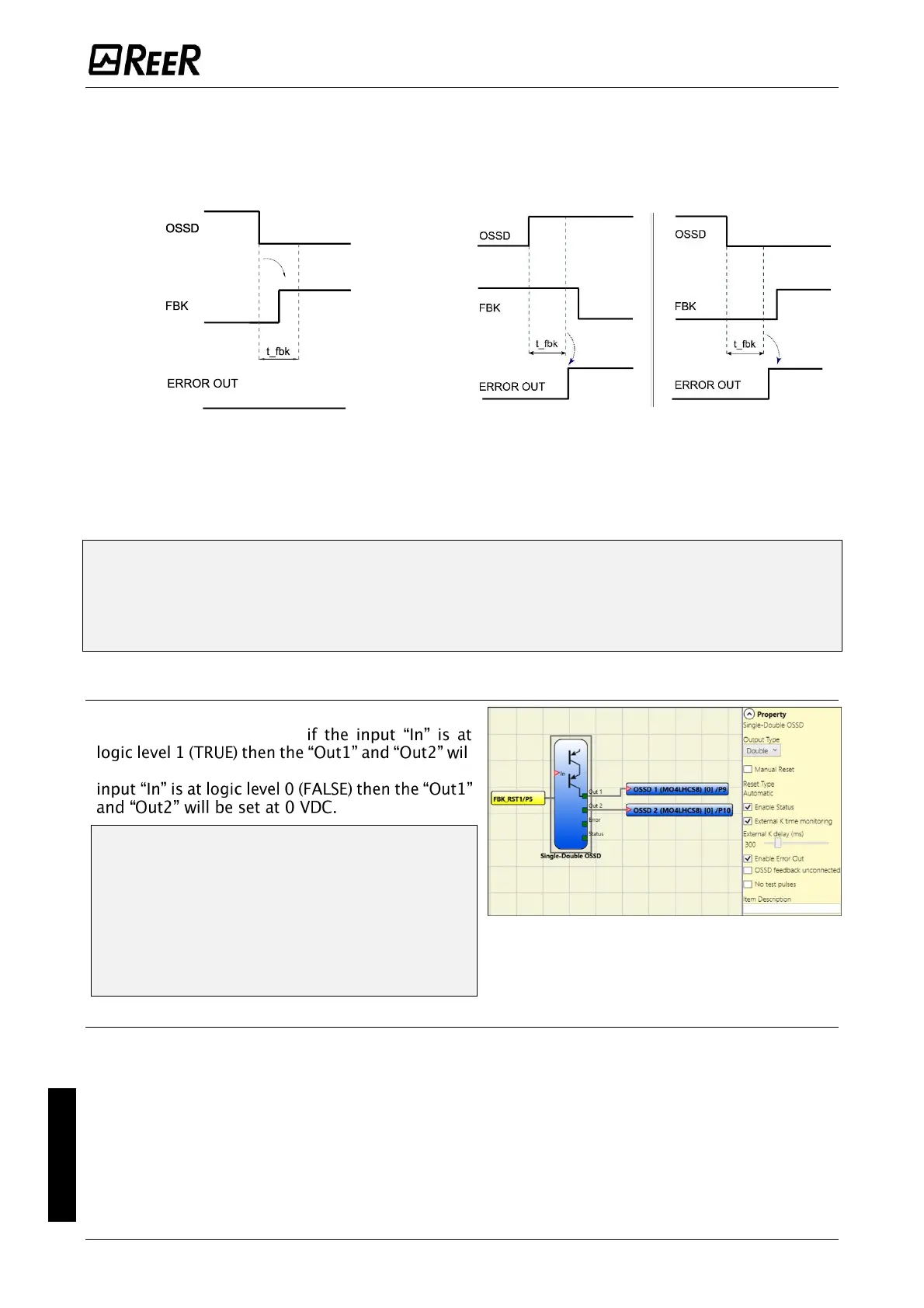

Enable Error Out If selected, enables the ERROR OUT output. This output is set to high level (TRUE)
when an external FBK error is detected.
The Error Out signal is reset in case of one of the following events:
1. Switching on and switching off of system.
2. Activation of the RESET M1 operator.
Example of OSSD with correct Feedback
signal:
In this case ERROR OUT=FALSE
Example of OSSD with incorrect Feedback signal
(k external time exceeded):
In this case ERROR OUT=TRUE
OSSD feedback unconnected: If selected, the feedback must not be connected.
If not selected the feedback must be connected directly to 24V or through the series of NC
contacts of K1/K2.

This parameter is only applicable to modules:
- M1 with firmware version >= 4.1
- MI8O2 with firmware version >=0.11
- MO2,MO4 with firmware version >= 0.7
- MO4LHCS8 firmware version >0.1
SINGLE DOUBLE OSSD (safety output)
SINGLE DOUBLE OSSD safety output uses
semiconductor technology
l
be set at 24 VDC (module power supply). If the

Each SINGLE DOUBLE OSSD output
provides a relative RESTART_FBK input.
This input, in the case of M1S, MI8O4 and
MO4L, appears only if the manual reset
or the EDM time control is activated. In
case of MO4LHCS8, it always appears and
must be connected as indicated in the
RESTART_FBK paragraph.
Parameters
Output Type: There is a choice of 2 different output type:
 Single Output Type
 Double Output Type
Using M1S, MI8O4, MO4L, MO4LHCS8 modules, the operator can choose between different
configurations:
1. Four SINGLE OUTPUTS function blocks (single output type)
2. Two SINGLE OUTPUTS function blocks (double output type)
3. Two SINGLE OUTPUTS function blocks (single output type) + one SINGLE OUTPUTS function
block (double output type)
