Reer MOSAIC MI8O4C Installation And Use

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
94 8540780 • 10/07/2020 • Rev.38
english

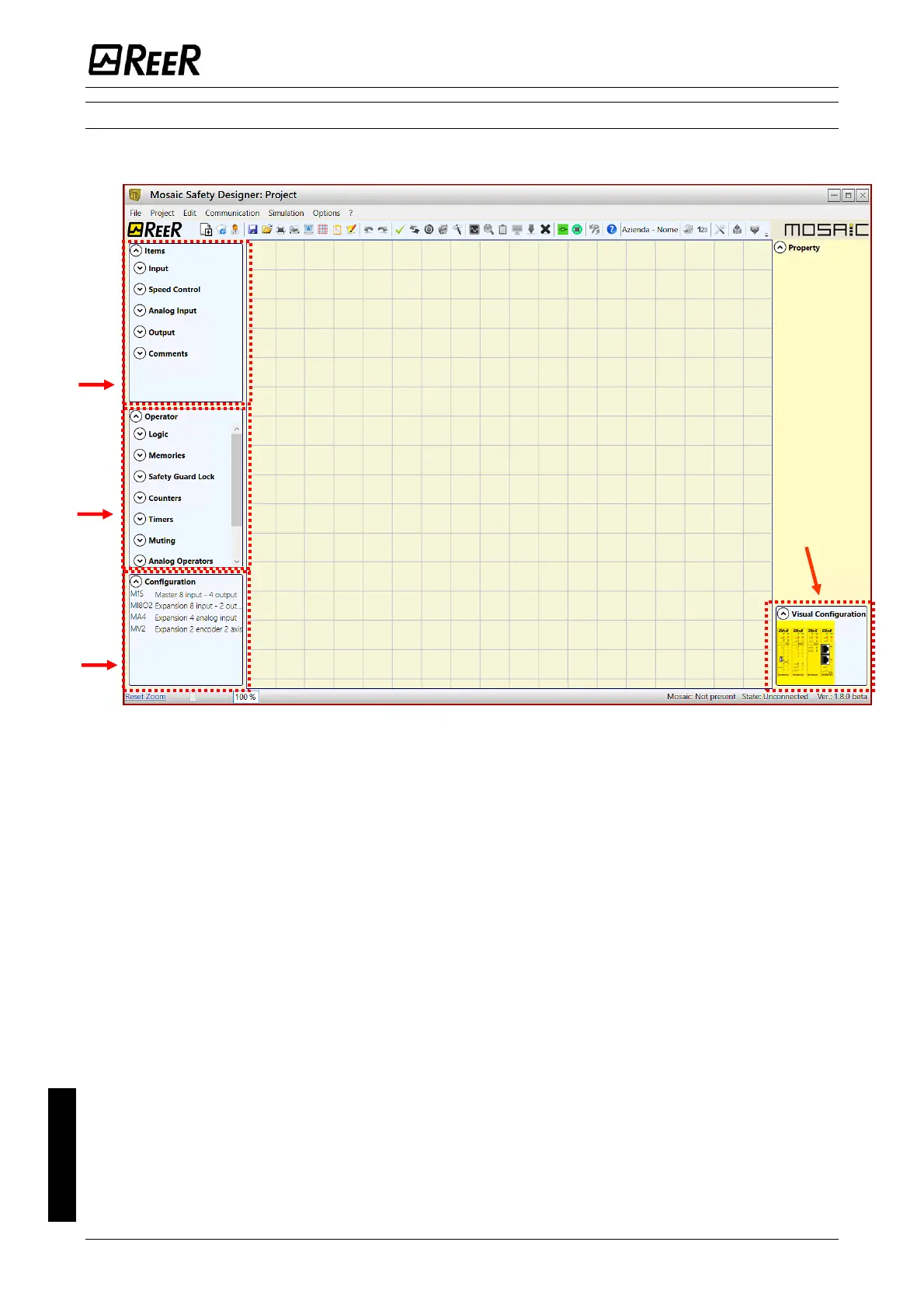

OBJECTS - OPERATOR - CONFIGURATION tool bars
Four large tool windows are displayed to the left and right of the main window
(shown in Figure 56):
Figure 56
1 > OBJECT TOOL WINDOW
This contains the various function blocks that will make up your project; these
blocks are divided into 4 different types:
- Inputs
- Speed Monitoring
- Outputs
- Comments
2 > OPERATOR TOOL WINDOW
This contains the various function blocks for connecting the objects in point 1;
these blocks are divided into 6 different types:
- Logic
- Memories
- Safety Guard Lock
- Counters
- Timers
- Muting
- Miscellaneous
3 > CONFIGURATION TOOL WINDOW
This contains the description of your Mosaic composition.
4 > CONFIGURATION TOOL WINDOW (view)
This contains the graphic representation of your Mosaic composition.
In this window it is possible to navigate through the I/Os of each module by acting with
the right mouse button on the module to be analyzed.
1
2
3
4
