Parameters
Input Logic: enables the selection of the number of logic inputs (from 1 to 7). Selecting 1
the logic will not be considered.
Select Logic: enables the selection of one of the following types of operator:
AND, NAND, OR, NOR, XOR, XNOR.
Restart Input Logic (only M1S): enables the selection of the number of inputs for restart
logic (from 1 to 7). If you select 1 the logic will not be considered.
Restart Select Logic (only M1S): enables the selection of one of the following types of
operator for restart logic: AND, NAND, OR, NOR, XOR, XNOR.
Enable Clear: If selected, enables an input to reset the memorization.
Enable Out: If selected activates an output with the result of the calculation done by the
input logic.
Restart request: If selected, it enables an output that can be used to signal the possibility
of performing the Restart. The behaviour is represented in the truth table.

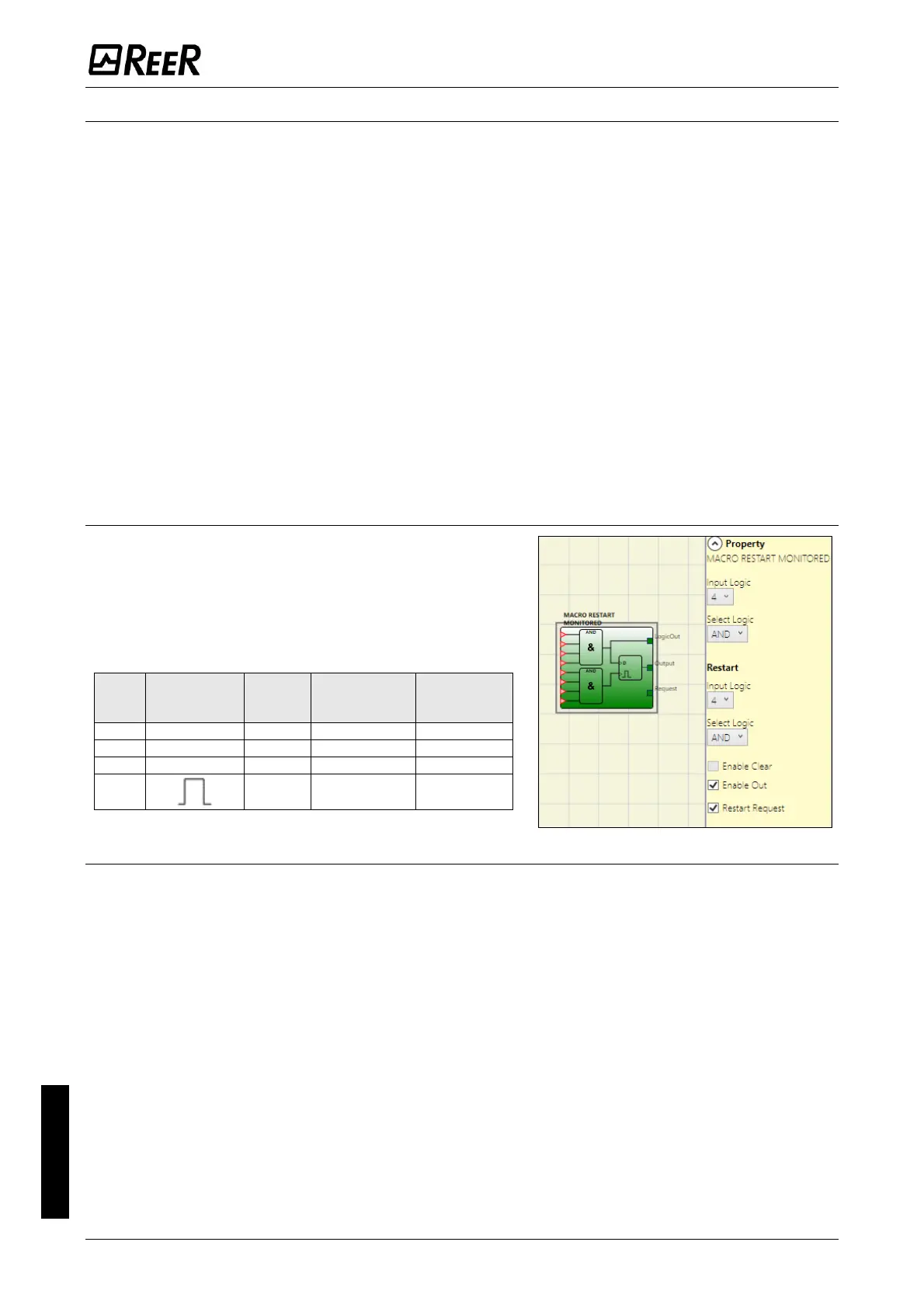

MACRO RESTART MONITORED
(max number = 16 with M1, 32 with M1S with other RESTART operators)
The MACRO RESTART MONITORED operator is used
to combine a logic gate chosen by the user with the
Restart Manual functional block ("USER RESTART
MONITORED") in accordance with the following truth
table.
Clear
Restart
Logic Out
Input
Logic
Out
Output
Restart
Request
1
X
X
0
0
X
X
0
0
0
0
0
1
Keep memory
1
0
1
1
0
Parameters
Input Logic: enables the selection of the number of logic inputs (from 1 to 7). Selecting 1
the logic will not be considered.
Select Logic: enables the selection of one of the following types of operator:
AND, NAND, OR, NOR, XOR, XNOR.
Restart Input Logic (only M1S): enables the selection of the number of inputs for restart
logic (from 1 to 7). If you select 1 the logic will not be considered.
Restart Select Logic (only M1S): enables the selection of one of the following types of
operator for restart logic: AND, NAND, OR, NOR, XOR, XNOR.
Enable Clear: If selected, enables an input to reset the memorization.
Enable Out: If selected activates an output with the result of the calculation done by the
input logic.
Restart request: If selected, it enables an output that can be used to signal the possibility
of performing the Restart. The behaviour is represented in the truth table.
