ANALOG OPERATORS (M1S only)

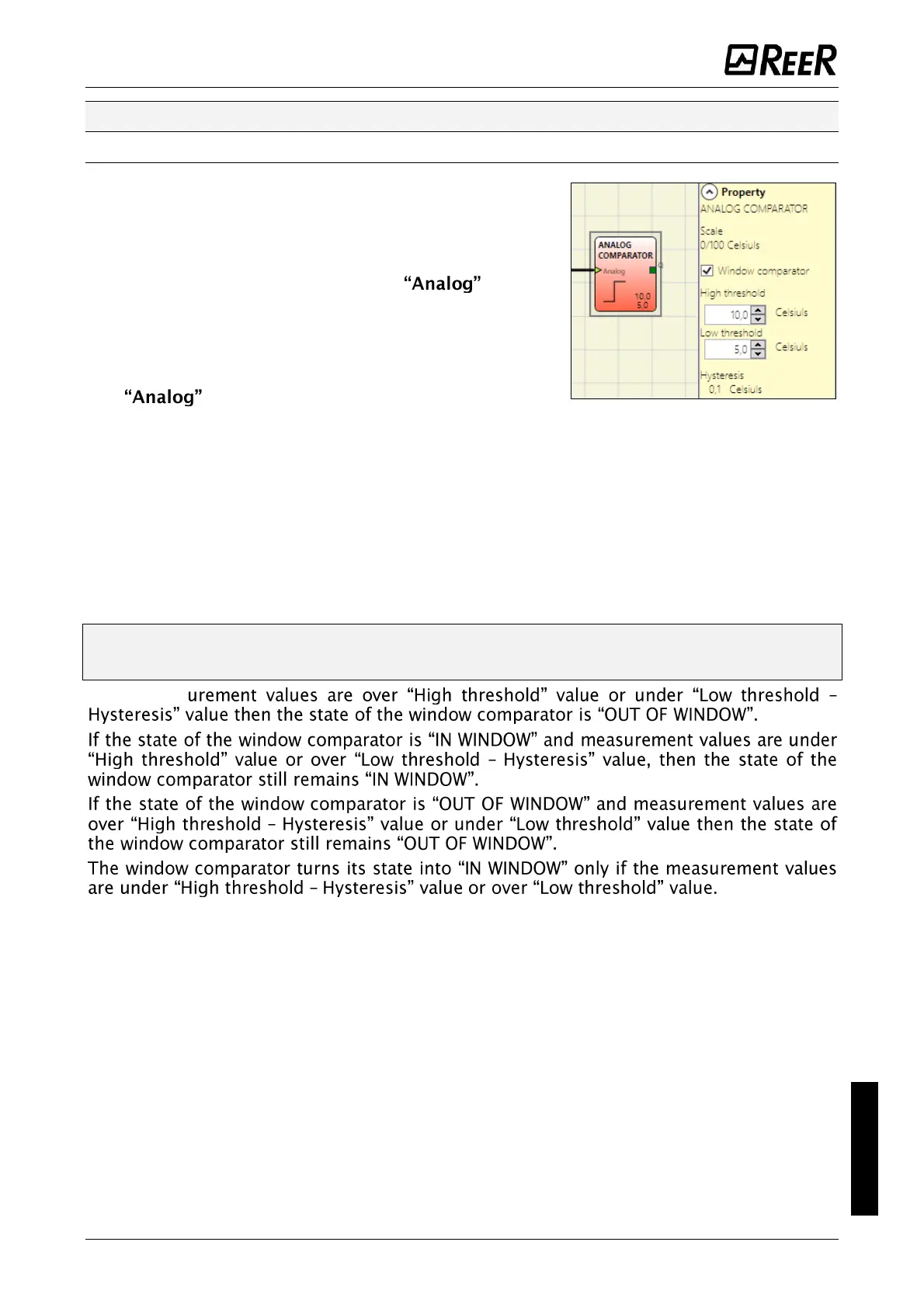

Analog Comparator
This operator works as a comparator of an analog signal
connected.
The threshold value to be entered will be in engineering
units (eg Kg, °C) and must respect the limits defined by
the functional block connected ot the input.
When the input value is lower than the threshold, the
output Q will be at level 0 (FALSE).
When the input value is equal or greater than to the
threshold, the output Q will be at level 1 (TRUE).
The input can be connected to:
 the analogue output of an “ANALOG COMPARISON” input block
 the analogue output of a “MATH” block.
The hysteresis used in the comparison will be the one programmed in the functional block
connected upstream.
Window comparator:
When the window comparator is enabled the user can choose a high threshold value and a
low threshold value.
The output state of the window comparator depends on the value of the measurement and
on its current state. There are two possible states:

OUT OF WINDOW: the output of the comparator is a logic 0 (FALSE)

IN WINDOW: the output of the comparator is a logic 1 (TRUE)
If the meas
In the following picture is given an example of the behavior of the window comparator.
