MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
214 8540780 • 10/07/2020 • Rev.38

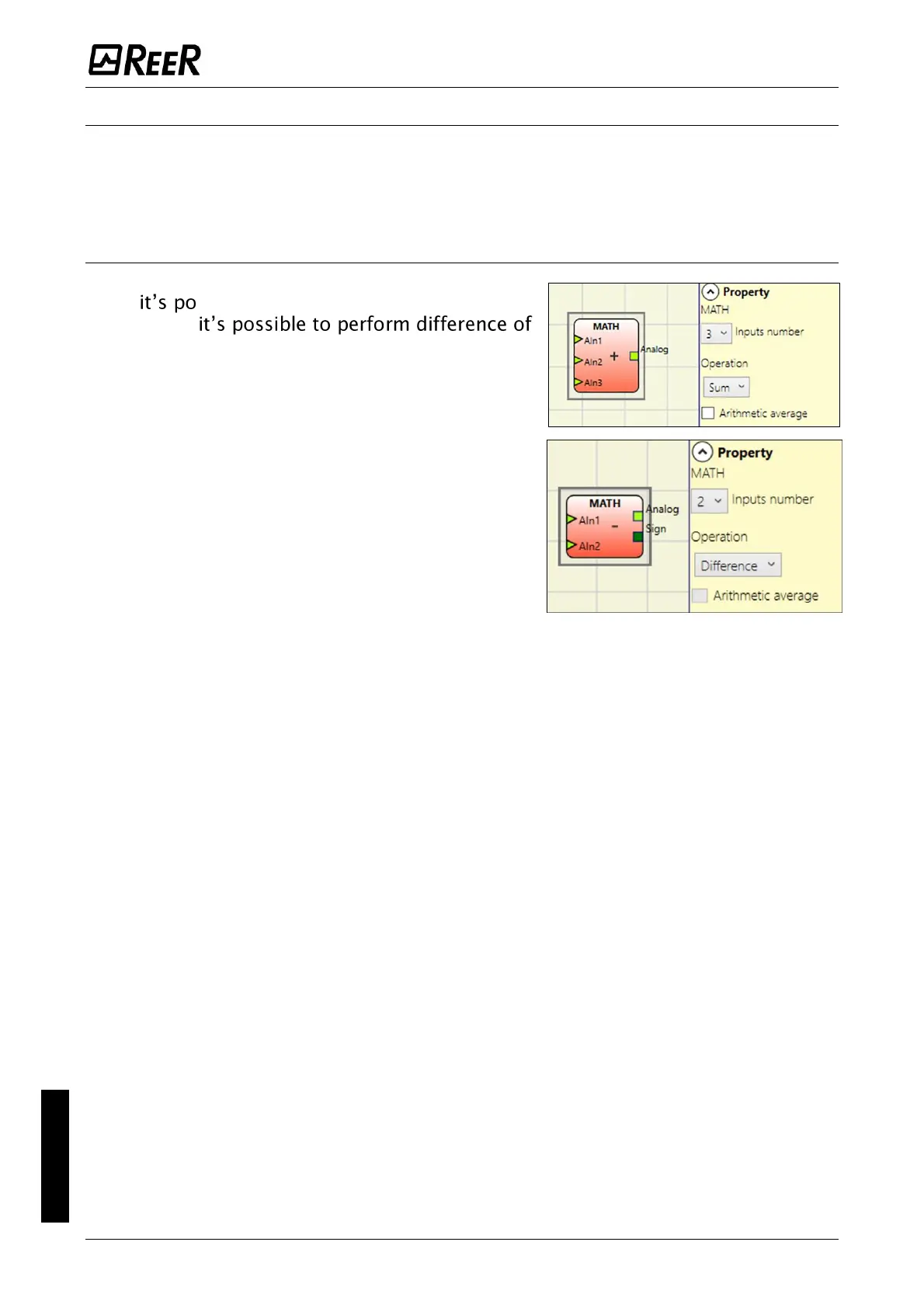

Math (max number = 16)
The Math operator performs the sum (or the difference) between analog signals coming
from an ANALOG INPUT blocks.
The signals must have the same physical unit and must be generated by sensors of the
same type (4/20mA, 0/20mA or 0/10V) but they can have different scales.
Parameters
Input number:
Sum: ssible to sum from 2 to 8 signals.
Difference:
2 signals.
Operation:
Sum: The result will be the sum of all the inputs.
Difference: The result of the operation will be the
absolute value of the difference |(Ain1 - Ain2)| with
relative sign (output Sign).
The Sign output will be at 0 (FALSE) if the sign of the
difference is positive, while it will be at 1 (TRUE) if the
sign is negative.
Arithmetic average:
Setting Arithmetic Average box with Operation as
Sum, the output value of this operator will be the
arithmetic average of the various inputs.
