MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
148 8540780 • 10/07/2020 • Rev.38

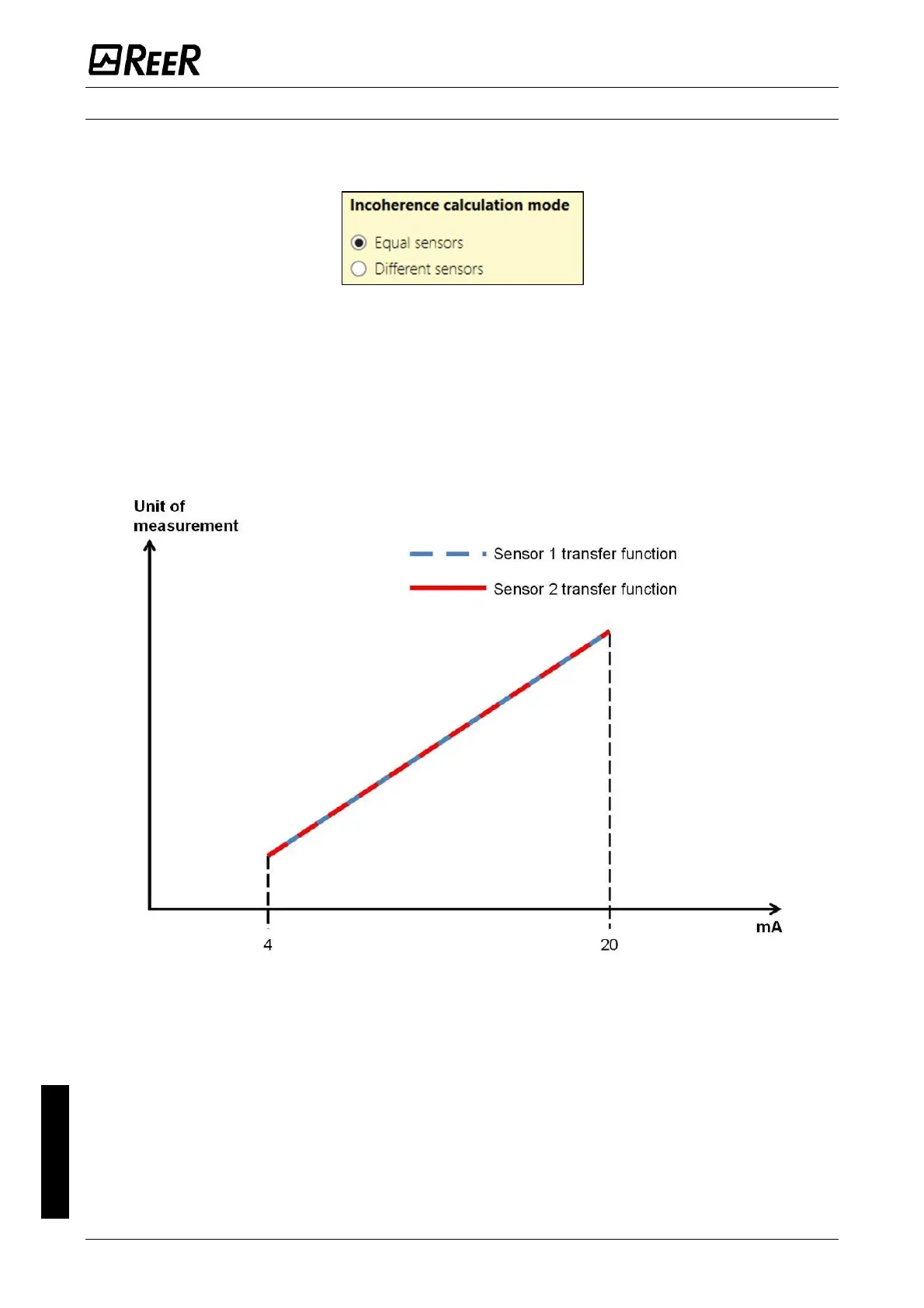

Incoherence calculation mode: equal sensors
Select Equal sensors if the sensors to be used are identical i.e. they have the same
scale. No additional configuration is required.
The following parameter is provided to define whether the sensors are the same or
different.
Equal sensors: The pair of sensors have the same characteristics and no
parameters need no further configuration.
For additional explanation see the following diagram.
