Single

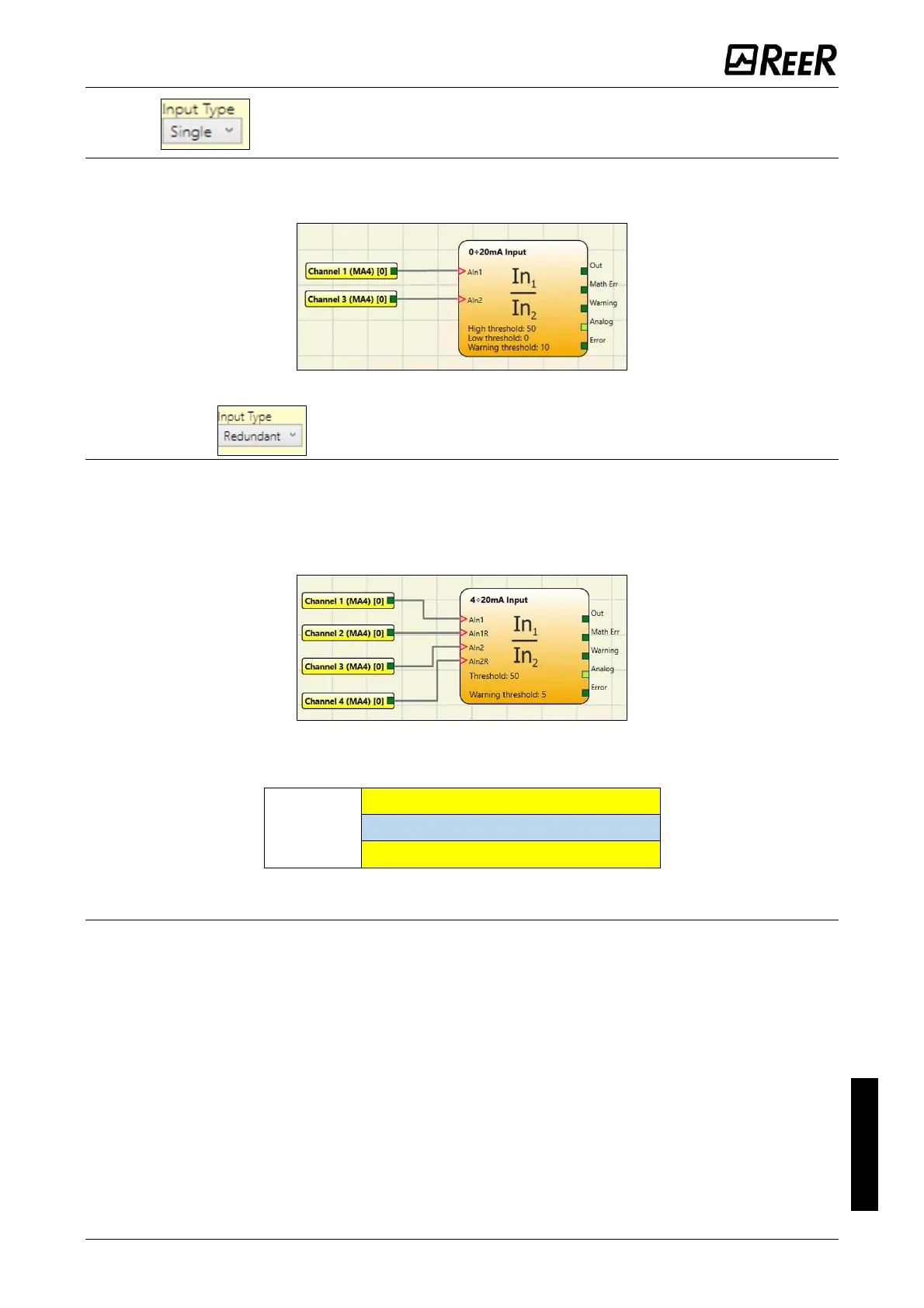

The measurement values of two single channels are divided.
Redundant
The measurement values of two pairs of sensors configured as redundant are
divided. The following illustration shows this configuration (the suffix R identifies
the redundant input channel).
The following table summarizes the possible divisions:
Division
Channel 1 / Channel 2
Channel 3 / Channel 4
Channel 1,2 / Channel 3,4
Maximum deviation threshold / Maximum timeout threshold
In case of Input Type -> Redundant, three further options will be enabled:
1. Sensors coherence
2. Incoherence calculation mode
3. Consolidation
