6-2 Display and Operating Components IndraControl L40
DOK-CONTRL-IC*L40*****-PR03-EN-P
6.2 Reset Button and Light-Emitting Diode
The reset button and a red light-emitting diode are arranged in the section
below the display.
Reset.tif

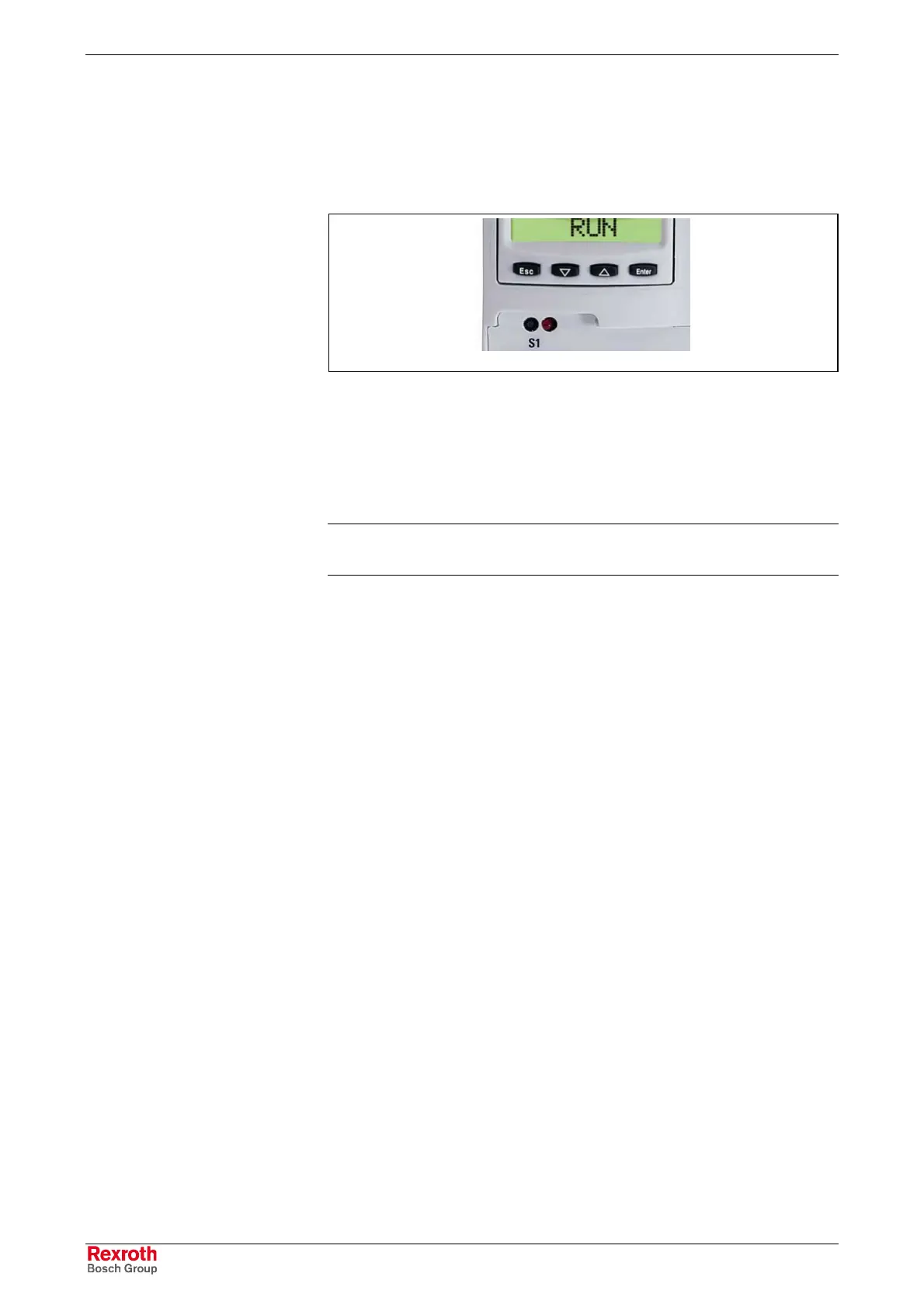

Fig. 6-2: Reset button and stop LED
The reset button can only be actuated with a tool, for instance with the tip
of a pencil.
Actuating the reset button will reset the complete assembly and force a
restart of the unit without the supply voltages having to be turned off. At
the same time, the ready contact will be opened (if present).
Note: Actuation of the reset button will abort processing of a running
program.
The light-emitting diode is a diagnostic / status indicator.
The states indicated by the light-emitting diode depend on the firmware
used and are included in the description of the particular system .
Reset Button
Light-Emitting Diode
