9-8 Structure of the Rexroth Inline Terminals IndraControl L40
DOK-CONTRL-IC*L40*****-PR03-EN-P
9.5 Housing Dimensions of the Modules of the Low Signal
Level
Today, small I/O stations are often used in 80 mm standard control
boxes. The Rexroth Inline modules have been designed for use in this
type of control box.
The housing dimensions of a module are defined by the dimensions of
the electronic socket and the connector.
The electronic sockets of the modules of the low signal level are available
in three overall widths (12.2 mm; 24.4 mm; and 48.8 mm).
One, two or four connectors of a width of 12.2 mm are fitted on these
sockets.
With connector, each module has a depth of 71.5 mm.
The height of the module depends on the connector used. The
connectors are available in three versions (see Fig. 9-13).
71,5 mm (2.815")
12,2 mm
(0.480")
120 mm (4.724")
Sockelmaß2.FH9

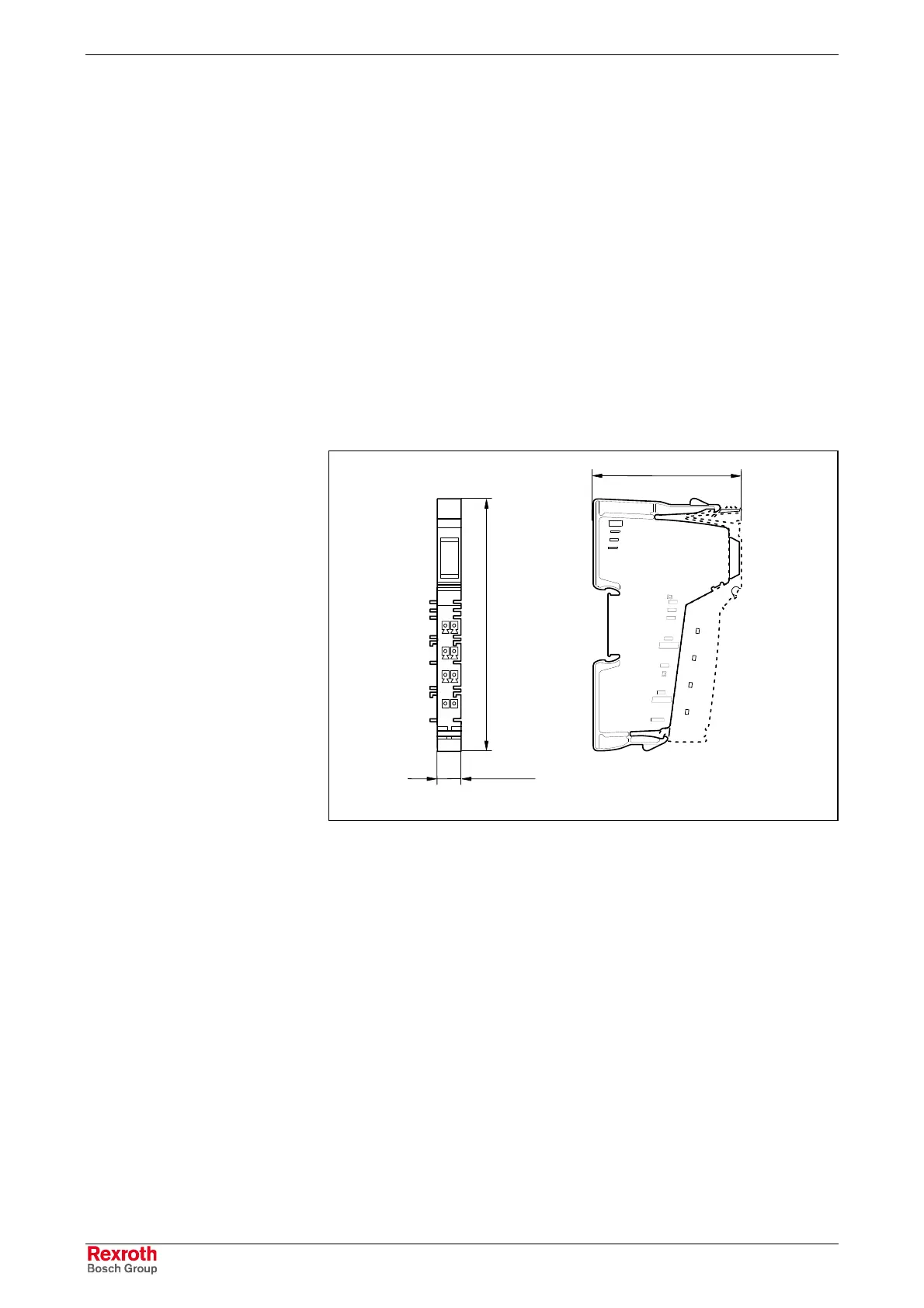

Fig. 9-10: Dimensions of the electronic sockets (2-slot housing)
2-Slot Housing
