7.2 Voltage Supply
External Supply Voltages

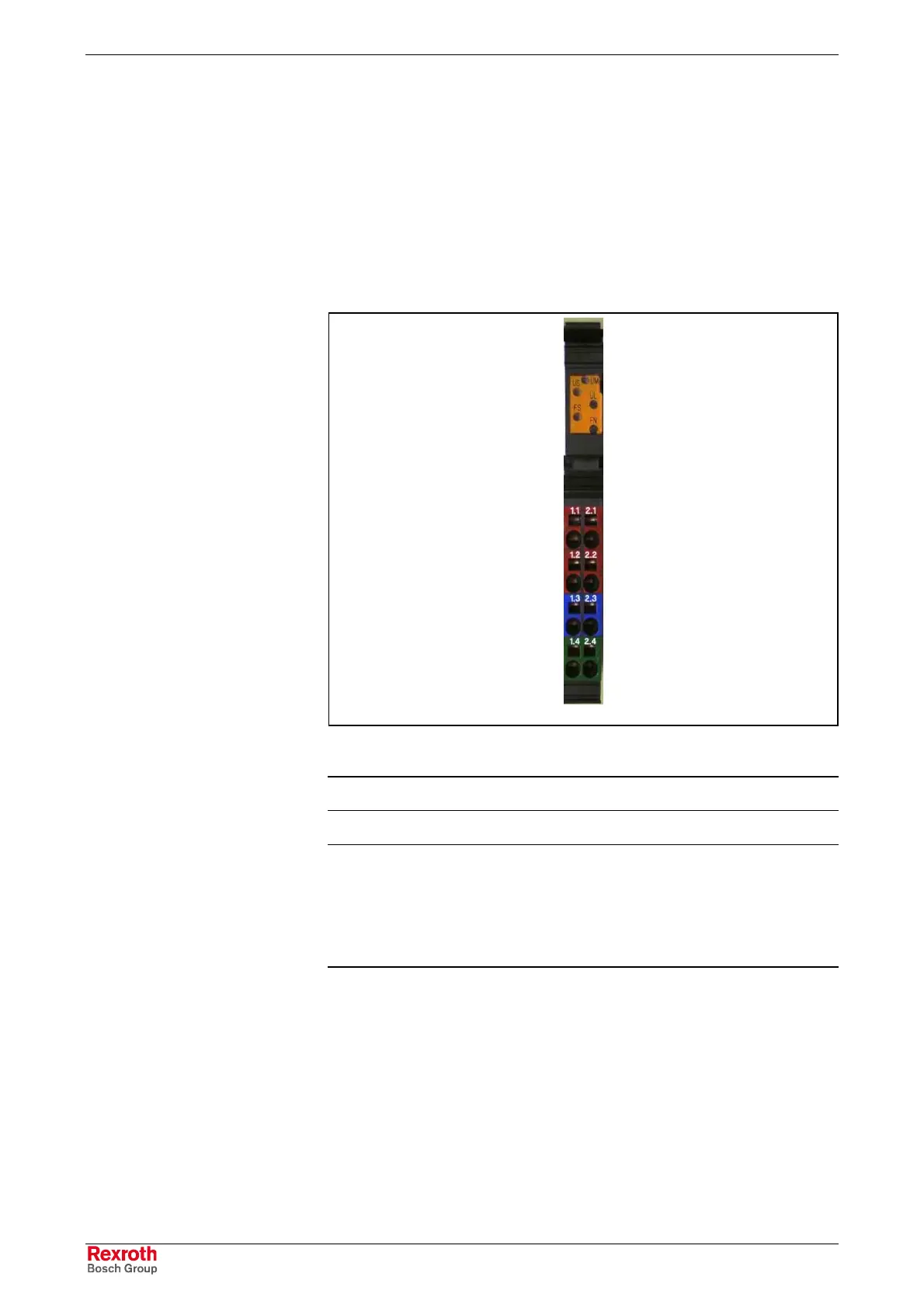

The IndraControl L40 as well as any connected function modules and I/O
assemblies are supplied with power via the black terminal strip to the right
of the IndraControl L40 unit.
Slot 5:
PWR.tif
Fig. 7-2: Supply voltage connections
Note: Observe the color-coding of the connectors.
Note: To connect the operating voltages only the power connector
included in the connector set R-IB IL CML S01-PLSET
available for the IndraControl L40 is allowed (connector B2 in
Fig. 9-4). Connector R-IB IL SCN-PWR IN-CP available for
other power terminals is not permitted for the IndraControl L40
(connector B1 in fig. 9-4).
PWR IN
