Digital Onboard Inputs
The left-hand section of the connector panel provides eight digital inputs
as onboard inputs.
Slots 1 and 2:
Eingänge.tif

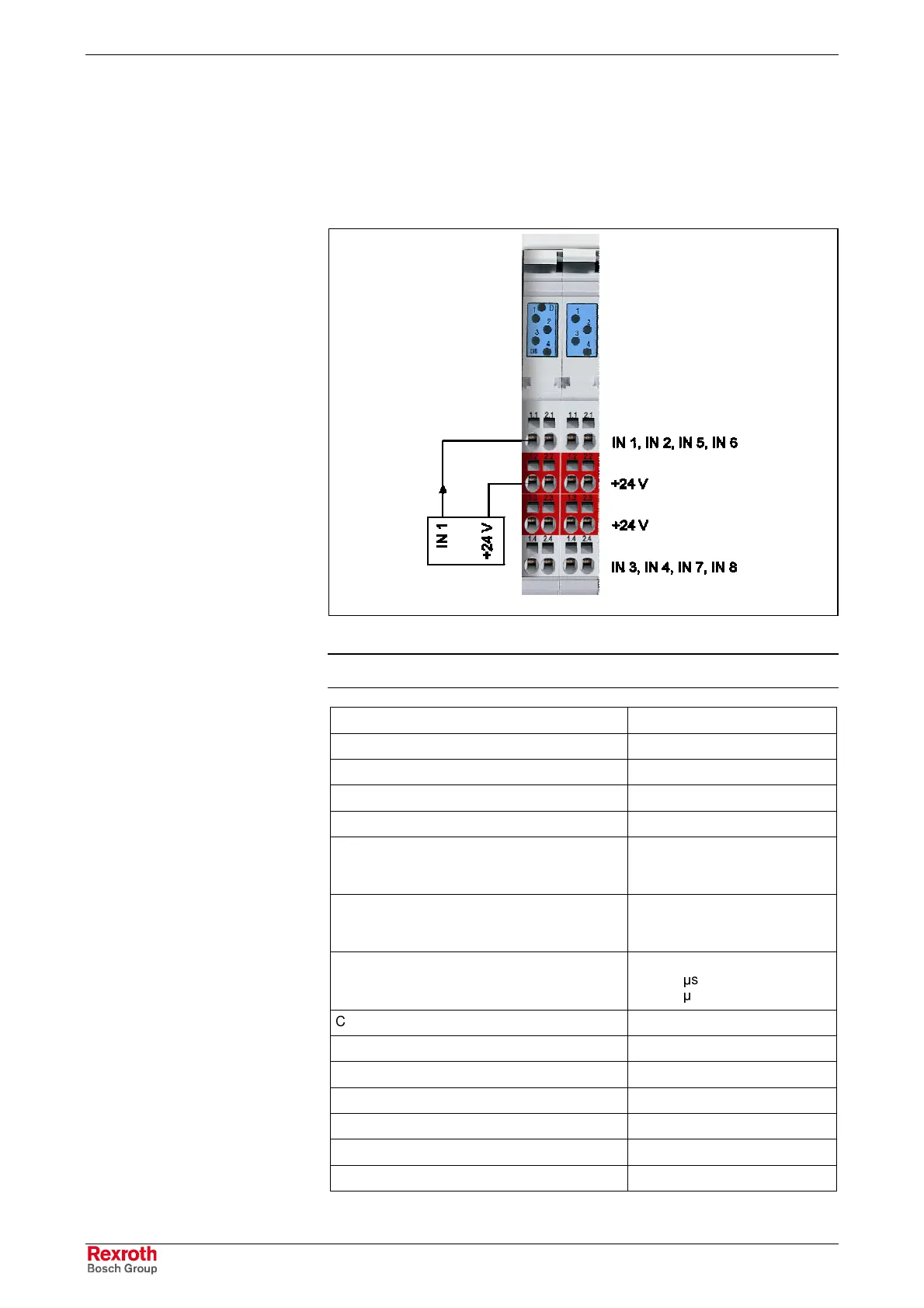

Fig. 7-11: Digital inputs
Note: Observe the color-coding of the connectors.
Number of inputs 8
Connection method 2-wire connection
Electrical isolation from U
S
No
Electrical isolation from U
L
Yes
Reverse voltage protection Yes
Input voltage:
Nominal value at "0"
Nominal value at "1"
-3 V ... +5 V
11 V ... 30 V
Input current:
Nominal value at "0"
Nominal value at "1"
< 2.5 mA
2.8 mA ... 6 mA
Delay time:
If "0" to "1"
If "1" to "0"
Typ. 50 µ s
Typ. 50 µ s
Current consumption by 24 V supply (U
S
) Typ. 60 mA
Cable length (unshielded) < 100 m
Interrupt inputs 8
Sensor supply From U
S
via a PTC fuse
Output voltage Typ. Uext. – 1 V
Nominal current (total) 0.2 A
Short-circuit protection, overcurrent protection Typ. 0.6 A
